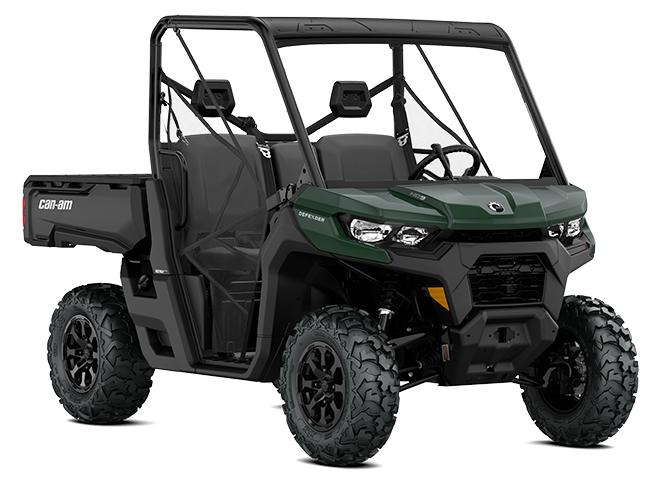

2022Defender DPS
-
Work
- Trail
- Hunting
- HD7: 52 hp / HD9: 65 hp
- Up to 13 in. (33 cm) ground clearance
- 27 in. Maxxis Bighorn 2.0† tires
- Integrated front steel bumper
![tundra-green]()
![yellow]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
-
Engine
HD7: Rotax 650 cc single cylinder, liquid cooled HD9: Rotax® 976 cc V-twin, liquid cooled
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection / HD9: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD7-HD9: Front: Double A-arm / Rear: TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD7
HD9
HD10
Engine displacement - 650
799
976
Type - HD7: 52 hp / 41 lb-ft, Rotax® ACE
(Advanced Combustion
Efficiency) 650 cc single
cylinder, liquid-cooled
HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid-cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7: PDrive primary CVT
with engine braking and
Electronic Drive Belt
Protection
L/H/N/R/P
HD10: PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD7-HD9: XPS Trail Force 27 x 9 x 14 in.
HD10 : Maxxis Bighorn 2.0 27 x 9 x 14 in.
Rear Tires - HD7-HD9: XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD7-HD9: 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
HD10: 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD7 - HD9: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD7: 1460 lb (662.3 kg)
HD9: 1541 lb (698.8 kg)
HD10: 1,536.6 lb (697 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 6.5 gal (24.5 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD7-HD9: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD7-HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650 W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
-
2022Defender XU
-
Work
- Trail
- Hunting
- HD9: 65 hp - 59 lb-ft
- 11 in. (28 cm) ground clearance
- 27 in. Maxxis Bighorn 2.0† tires
- Integrated front steel bumper
![yellow]()
DO IT ALL. The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
-
Engine
HD9: Rotax® 976 cc V-twin, liquid cooled
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
HD9: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Double A-arm / Rear: TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD9
Engine displacement - 799
Type - HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work mode
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Dry Weight - HD9:1,623 lb (736 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD9: Double A-arm / 10 in. (25.4 cm) trave
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) trave
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, full hard roof , 3-position full glass tilt up windshield with wiper/washer kit, clear rear deflect
Hitch Type - 2-in. hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
-
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 28 in. Maxxis Bighorn 2.0† tires
- 182 x 137 cm bed, Lower box storage 83.6 gal (316.5 L)
- Integrated front steel bumper
![yellow]()
PERFECT PLATFORM. The world’s best Can-Am with a 6 x 4.5 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
-
Engine
HD10: Rotax® 976 cc, V-twin, liquid cooled
-
Features
Integrated front steel bumper, HMWPE central skid plate, Brake holding mechanism, Lower box storage 83.6 gal (316.5 L)
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD10
Engine displacement - 976
Type - HD10: 82 hp/69 lb-ft, Rotax 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0 28 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0 28 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 154.1 x 64 x 78 in. (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5-in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage ROPS approved
Dry Weight - 1,833 lb (831.5 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L) 83.6 gal (316.5 L) Lower storage: 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12 V (30 amp/h)
Magneto - 650 W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper HMWPE central skid plate
Hitch Type - 2-in. hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
-
2022Defender MAX DPS
-
Work
- Trail
- Hunting
- HD9: 65 hp
- Up to 12.5 in. (31.8 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Integrated front steel bumper
![tundra-green]()
TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco-Lok QE 4WD—and get it done.
-
Engine
HD9: Rotax® 976 cc V-twin, liquid cooled
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD9: Front: Double A-arm / Rear: TTA with external sway bar
-
Seat
Dual VERSA-PRO bench seats
Engine Engine - HD9
Engine displacement - 799
Type - HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD9: 1,771 lb (803.2 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD9: Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650 W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
-
2022Defender XT
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- 27 in. Maxxis Bighorn 2.0† tires
- 14 in. (35.6 cm) cast-aluminum wheels
- XT front bumper, Full hard roof, Reinforced seat, 4,500-lb winch

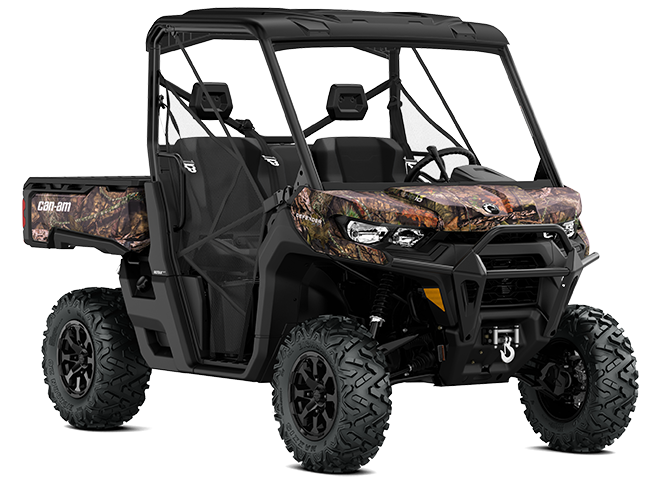

![mossy-oak-break-up-country-camo]()
![asphalt-grey]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
-
Engine
HD10: Rotax® 976 cc, V-twin, liquid cooled
-
Features
XT front bumper, HMWPE full skid plate, Full hard roof, 4,500-lb winch with roller fairlead, Brake holding mechanism, XT trims,
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
Engine Engine - HD10
Engine displacement - 976
Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0 27 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD10: 1,600.6 lb (726 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - Lighter-type DC outlets in the console (10 A) and two lighted USB ports in the dash storage (10 A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
-
2022Defender X mr
-
Mud
- Work
- Hunting
- HD10: 82 hp - 69 lb-ft
- 15 in. (38.1 cm) ground clearance
- 30 in. ITP Cryptid† tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Smart-Lok™, 4,500-lb winch with synthetic rope, heavy-duty front steel bumper
![liquid-titanium---magma-red]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards, Relocated 4,500-lb winch with synthetic rope and roller fairlead, 7.6 in. digital display with keypad, Signature LED, X mr trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Engine displacement - 976
Type - HD10: 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high-airflow ventilation with strategically positioned CVT air intake and exhaust Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD TRAIL/4WD MUD with exclusive Smart-Lok* technology
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - 1,697.6 lb (770 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793.8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD10: Arched double A-arm with sway bar and sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bench seat with bolster seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
-
2022Defender MAX XT
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- Up to 12.5 in. (31.8 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires
- XT front bumper, 2-piece full hard roof, 4,500-lb winch
![asphalt-grey]()
EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
-
Engine
HD10: Rotax® 976 cc, V-twin, liquid cooled
-
Features
XT front bumper, 4,500-lb winch with roller fairlead, HMWPE full skid plate, 2-piece full hard roof, Brake holding mechanism, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
Engine Engine - HD10
Engine displacement - 976
Type - HD10: 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0 27 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD10: 1,902.6 lb (863 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - Lighter-type DC outlets in the console (10 A) and two lighted USB port in the dash storage (10 A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - Relocated 4,500 lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate aluminum rock sliders, mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years/15,000 km warranty, whichever comes first
-
Download spec sheet
Share
