Main Features
- Leading Engine
- Interior Comfort
- Power Tilt Bed
- Under bed storage
- Hauling & Towing
- Torque
- HVAC
Explore Defender Packages & Specifications
-
2024Defender DPS
Transportation and preparation not included.-
Work
- Hunting
- Defender top features
- Visco-Lok† QE auto-locking front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
-
Engine
53 hp (41 lb-ft torque) Rotax HD7 single cylinder engine / 65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD7
Engine displacement - 650
Type - 52 hp/42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary CVT with engine braking and Electronic Drive Belt Protection L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† QE auto-locking front differentia
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,471 lb (667 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-

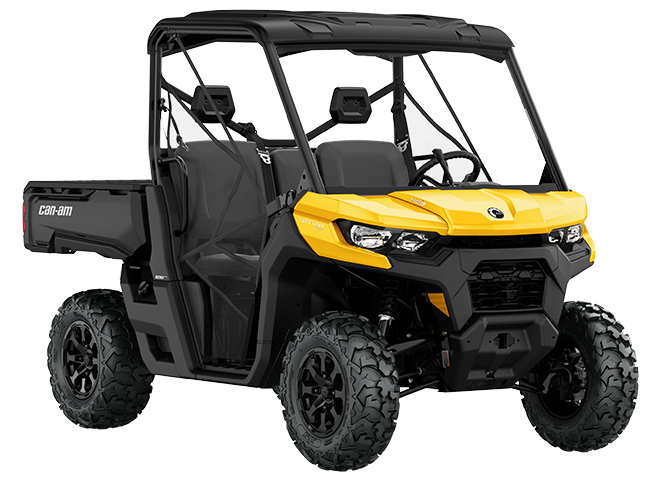

2024Defender XU HD9
Transportation and preparation not included.-
Work
- Hunting
- Defender top features
- Brake holding mechanism
- Selectable Turf Mode/2WD/4WD with Visco-Lok' auto-locking front differential
- Full Hard Roof
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
![yellow]()
DO IT ALL. The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat with passenger seats flipping up Underside hooks
-
Features
Integrated front steel bumper, HMWPE central skid plate and full hard roof
Engine Engine - HD9
Engine displacement - 799
Type - 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation, and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,553 lb (706 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) trave
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) trave
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, Full hard roof
Hitch Type - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender XU HD10
Transportation and preparation not included.-
Work
- Hunting
- Defender top features
- Brake holding mechanism
- Selectable Turf Mode/2WD/4WD with Visco-Lok' auto-locking front differential
- Full Hard Roof
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
DO IT ALL. The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat with passenger seats flipping up Underside hooks
-
Features
Integrated front steel bumper, HMWPE central skid plate and full hard roof
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation, and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,573 lb (715 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched Double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, Full hard roof
Hitch Type - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
Transportation and preparation not included.-
Work
- Hunting
- Industry-leading 137 x 182 cm cargo box with easy flat-bed conversion and dump box
- Lower box storage of 83.6 gal (316.5 L)
- Visco-Lok QE front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![yellow]()
PERFECT PLATFORM. The world’s best Can-Am with a 6 x 4.5 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation, and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 154.1 x 64 x 78 in. (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5-in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,815 lb (823 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,570 lb (712 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seat flipping up, Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper HMWPE central skid plate
Hitch Type - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender XT
Transportation and preparation not included.-
Work
- Hunting
- Defender DPS top features
- Brake holding mechanism
- 2041-kg winch
- Full hard roof
- XT front bumper
![timeless-black]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs (2041-kg) factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 125.7 x 64 x 80 in. (319,4 x 162.5 x 203.2 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,623 lb (736 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced XT seat skin.
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender X mr
Transportation and preparation not included.-
Mud
- Hunting
- Smart-Lok featuring 4WD MUD mode
- Strategically positioned CVT air intakes and exhaust.
- Mudguards
- Heavy-duty front steel bumper, Aluminum rock sliders
- 30 in. tires on 14 in. cast-aluminum wheels
![wildland-camo]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate, 7.6 in. digital display with keypad, Can-Am LED Signature
-
Shocks
Relocated 2041-kg winch with synthetic rope and roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high-airflow ventilation with strategically positioned CVT air intake and exhaust, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok technology
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Swamp Force 30 x 9 x 14 in.
Rear Tires - XPS Swamp Force 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,746 lb (792 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar/12 in. (30.5 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 12 in. (30.5 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED signature lights, LED tail lights
Winch - High mount 4,500 lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender Limited
Transportation and preparation not included.-
Hunting
- Trail
- Auto heating, venting and air conditioning (HVAC) system
- 7.6 in. digital display with keypad
- XT front bumper
- 27 in. tires on 14 in. cast-aluminum wheels
![stone-gray]()
HEATING, VENTING & AIR CONDITIONING. Work & play in complete comfort, loaded with the features like front electric window, flip-up winshield, and capability you'd expect from our most refined all-weather workhorse.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass window, 7.6 in. digital display with keypad, Can-Am LED signature
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with exclusive Smart-Lok*
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9 x 14 in.
Rear Tires - XPS Trac Force 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 126 x 65 x 81 in (319 x 165.1 x 252 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 14 in. (30.5 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,976 lb (896 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 12 in. (30.5 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 12 in. (30.5 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED signature lights, LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full colour match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, Rear glass window, Panoramic mirror, Auto heating and air conditioning (HVAC) climate system
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender MAX Limited
Transportation and preparation not included.-
Hunting
- Trail
- Defender MAX XT top features
- Auto heating, venting and air conditioning (HVAC) system
- Painted doors with electric opening windows
- 7.6 in. digital display with keypad
- Panoramic mirror
![stone-gray]()
COMFORT FOR THE WHOLE CREW. Standard 3-mode air conditioning turns the Defender MAX into the perfect way to ensure up to 6 people can work, travel and adapt as the conditions demand.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass window, 7.6 in. digital display with keypad, Can-Am LED Signature, Panoramic mirror
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra-L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with exclusive Smart-Lok*
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9 x 14 in.
Rear Tires - XPS Trac Force 30 x 10 x 14 in
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158.3 x 65 x 81 in. (402 x 165.1 x 226 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 2,466 lb (1,119 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,225 lb (555 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar/12 in. (30.5 cm) trave
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/12 in. (30.5 cm) trave
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED signature lights, LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full colour match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, Rear glass window, Panoramic mirror, Auto heating and air conditioning (HVAC) climate system
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender MAX DPS
Transportation and preparation not included.-
Work
- Hunting
- Visco-Lok† QE auto-locking front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco-Lok QE 4WD—and get it done.
-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine
-
Seat
Dual VERSA-PRO bench seats & flip-up passenger seat
-
Features
HMWPE central skid plate
Engine Engine - HD9
Engine displacement - 976
Type - 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 / 11 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD9: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - 1,771 lb (803 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seats with passenger seats flipping up Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender MAX XT
Transportation and preparation not included.-
Work
- Hunting
- Defender MAX DPS top features
- Brake holding mechanism
- 2041-kg winch
- 2-piece full hard roof
- XT front bumper
![stone-gray]()
EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,928 lb (875 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A), USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced XT seat skin.
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender 6x6 DPS
Transportation and preparation not included.-
Hunting
- Work
- Industry-leading 137 x 182 cm cargo box
- Industry-leading 1360-kg towing capacity
- Visco-Lok QE front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
CAN-AM OFF-ROAD REVOLUTION. Six wheels, unlimited potential. Get the most traction, load-carrying, power, and capability ever engineered into an off-road workhorse.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bench seats & flip-up passenger seat
-
Features
HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control , ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 154.1 x 64 x 78 (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - 1,953 lb (886 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
Download spec sheet
Share
Promotions
YOU MAY ALSO LIKE
-
2024
Defender
Transportation and preparation not included.If you're looking for a buggy that's reliable. A SxS that you can count on day-in-day-out. The Defender is the smartest investment you'll ever make. Whether it's on your farm, worksite, or hunting trip, know the Defender consistently delivers exceptional performance, ensuring every job is done right.
-
2023Commander
Transportation and preparation not included.DO IT ALL. You want to play. You want to work. You want everything in between. You need a legend on wheels. There's only one machine engineered to make it happen. Honed over refinement and redesign, it's a true original, as versatile as you are. You need the Can-Am Commander.
-
2023Maverick X3
Transportation and preparation not included.Where driving can really take you. Explore, ride, and roar off-road in our purpose-built-for-anything high-performance vehicle. It took us to the podium at Dakar 5 years in a row. Now it’s your turn to take the lead.
