2022

SPYDER F3

Rotax® 1330 cc engine (115 hp) with semi-automatic transmission, Vehicle Stability System and Eco Mode
Relaxed cruiser ergonomics with UFit System
6.5 gal (24.4 L) storage capacity
Front fenders with integrated LED lights
4.5″ (11.4 cm) wide digital gauge

SPYDER F3

The Spyder F3 is the starting point for incredibly fun riding, with its outstanding engine and head-turning style.

Engine

Rotax® 1330 ACE™ in-line 3 cylinders
Transmission

6-speed semi-automatic with reverse function
Suspension

Front: SACHS† Big-Bore shocks, Rear: SACHS shock
Cargo capacity

6.5 gal (24.4 L)
Riding modes

Eco Mode

Download spec sheet

Engine
Engine	ROTAX 1330 ACE
Engine displacement	1330 cc
Type	Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control
Bore & stroke	3.31 x 3.14 in. (84 x 80 mm)
Power	115 hp (85.8 kW) @ 7,250 RPM
Torque	96 lb-ft. (130.1 Nm) @ 5000 RPM

Transmission
Transmission	SE6
Type	Semi-automatic with reverse function
Gears	6-speed

Dimensions
L x W x H	104 x 58.9 x 43.3 in. (2,642 x 1,497 x 1,099 mm)
Wheelbase	67.3 in. (1,709 mm)
Seat height	26.6 in. (675 mm)
Ground clearance	4.5 in. (115 mm)
Dry weight	899 lb (408 kg)

Chassis
Front suspension	Double A-arms with anti-roll bar
Front shocks type / travel	SACHS† Big-Bore shocks / 5.1 in. (129 mm)
Rear suspension	Swing-arm
Rear shocks type / travel	SACHS shock / 5.2 in. (132 mm)
Electronic brake distribution system	Foot-operated, hydraulic 3-wheel brake
Front brakes	270 mm discs with Brembo† 4-piston fixed calipers
Rear brake	270 mm disc, 1-piston floating caliper with integrated parking brake
Parking brake	Electrically actuated
Front tires	MC165/55R15 55H
Rear tire	MC225/50R15 76H
Aluminum front rims	5-spoke, Deep Black, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim	Deep Black, 15 x 7 in. (381 x 178 mm)

Capacity
Rider capacity	1
Maximum vehicle load	439 lb (199 kg)
Storage capacity	6.5 gal (24.4 L)
Fuel capacity	7.1 gal (27 L)
Fuel Type	Premium unleaded

Feature
Features	2 halogen headlamps (55/60 W) Front fenders with integrated LED lights Black perforated seat Mono seat cowl

Instrumentation
Type	4.5 in. (11.4 cm) digital display
Main Functions	Speedometer, tachometer, odometer, trips, gear position, distance to empty, engine lights, fuel gauge, clock and ECO mode.

SafetyAndSecurity
SCS	Stability Control System
TCS	Traction Control System
ABS	Anti-lock Braking System
DPS	Dynamic Power Steering
Anti-theft system	Digitally Encoded Security System (D.E.S.S.™)
HHC	Hill Hold Control

Coverage
Factory Warranty	2-year BRP Limited Warranty with 2-year roadside assistance
Extended Service Terms	B.E.S.T. extended service term available from 12 to 36 months.

2022

SPYDER F3-S SPECIAL SERIES

All Spyder F3 model features, PLUS:
Sportier look with exclusive colorations, super sport grille, gauge spoiler and mono seat cowl
High performance KYB shocks
7.8″ (19.8 cm) wide digital gauge with BRP Connect
Vehicle optimized smart phone apps

SPYDER F3-S SPECIAL SERIES

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-S-SS-MonolithBlackSatin-000E6NL00-Studio-34FR-NA.png

Hit the open road with the Spyder F3-S Special Series, and when you want to turn things up a notch, the low center of gravity, higher-performance shocks and Sport Mode are ready.

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-S-SS-MantaGreen-000E6NF00-Studio-34FR-NA.png

Hit the open road with the Spyder F3-S Special Series, and when you want to turn things up a notch, the low center of gravity, higher-performance shocks and Sport Mode are ready.

Engine

Rotax® 1330 ACE™ in-line 3 cylinders
Transmission

6-speed semi-automatic with reverse function
Suspension

Front: Gas-charged, KYB† shocks, Rear: SACHS shock
Cargo capacity

6.5 gal (24.4 L)
Riding modes

Eco Mode and Sport Mode

Download spec sheet

Engine
Engine	ROTAX 1330 ACE
Engine displacement	1330 cc
Type	Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control
Bore & stroke	3.31 x 3.14 in. (84 x 80 mm)
Power	115 hp (85.8 kW) @ 7250 RPM
Torque	96 lb-ft. (130.1 Nm) @ 5000 RPM

Transmission
Transmission	SE6
Type	Semi-automatic with reverse function
Gears	6-speed

Dimensions
L x W x H	104 x 58.9 x 43.3 in. (2,642 x 1,497 x 1,099 mm)
Wheelbase	67.3 in. (1,709 mm)
Seat height	26.6 in. (675 mm)
Ground clearance	4.5 in. (115 mm)
Dry weight	899 lb (408 kg)

Chassis
Front suspension	Double A-arms with anti-roll bar
Front shocks type / travel	Gas-charged, KYB† shocks / 5.1 in. (129 mm)
Rear suspension	Swing-arm
Rear shocks type / travel	SACHS shock / 5.2 in. (132 mm)
Electronic brake distribution system	Foot-operated, hydraulic 3-wheel brake
Front brakes	270 mm discs with Brembo† 4-piston fixed calipers
Rear brake	270 mm disc, 1-piston floating caliper with integrated parking brake
Parking brake	Electrically actuated
Front tires	MC165/55R15 55H
Rear tire	MC225/50R15 76H
Aluminum front rims	5-spoke, Deep Black, machined and tinted, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim	Deep Black, 15 x 7 in. (381 mm x 178 mm)

Capacity
Rider capacity	2
Maximum vehicle load	439 lb (199 kg)
Storage capacity	6.5 gal (24.4 L)
Fuel capacity	7.1 gal (27 L)
Fuel Type	Premium unleaded

Feature
Features	2 halogen headlamps (55/60W) Front fenders with integrated LED lights Black perforated seat Cruise Control Mono seat cowl Passenger seat included but not installed Gauge Spoiler

Instrumentation
Type	Large panoramic 7.8 in. (19.8 cm) wide LCD color display with BRP Connect™: allowing the integration of vehicle-optimized smartphone apps.
Main Functions	Speedometer, tachometer, odometer, trip and hour meters, fuel consumption avg, gear position, ECO mode, Sport mode temperature, engine lights, electronic fuel gauge, clock and more.
Audio System	USB, Bluetooth† and 1/8 in. (3.5mm) audio inputs*

SafetyAndSecurity
SCS	Stability Control System
TCS	Traction Control System
ABS	Anti-lock Braking System
DPS	Dynamic Power Steering
Anti-theft system	Digitally Encoded Security System (D.E.S.S.™)
HHC	Hill Hold Control

Coverage
Factory Warranty	2-year BRP Limited Warranty with 2-year roadside assistance
Extended Service Terms	B.E.S.T. extended service term available from 12 to 36 months.

2022

SPYDER F3-T

Rotax® 1330 cc engine (115 hp) with semi-automatic transmission, Vehicle Stability System and Eco Mode
Added comfort with better wind protection and adjustable rear air suspension
21 gal (78 L) storage capacity with saddlebags and glove box
More convenience with BRP Audio 4-speaker sound system, audio control keypad, Cruise Control, towing capabilities and integrated hard side luggage
7.8″ (19.8 cm) wide digital gauge with BRP Connect

SPYDER F3-T

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-T-GlacialBlueMetallic-000H6NC00-Studio-34FR-NA.png

Go the extra mile with the Spyder F3-T. Enjoy the road with the built-in infotainment system, added comfort of a windshield along with a smooth and quiet ride. You can also take along your gear with integrated hard side luggage.

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-T-PearlWhite-000H6NA00-Studio-34FR-NA.png

Engine

Rotax® 1330 ACE™ in-line 3 cylinders
Transmission

6-speed semi-automatic with reverse function
Suspension

Front: SACHS Big-Bore shocks, Rear: SACHS shock with manual air preload adjustment
Cargo capacity

21 gal (78 L)
Riding modes

Eco Mode

Download spec sheet

Engine
Engine	ROTAX 1330 ACE
Engine displacement	1330 cc
Type	Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control
Bore & stroke	3.31 x 3.14 in. (84 x 80 mm)
Power	115 hp (85.8 kW) @ 7250 RPM
Torque	96 lb-ft. (130.1 Nm) @ 5000 RPM

Transmission
Transmission	SE6
Type	Semi-automatic with reverse function
Gears	6-speed

Dimensions
L x W x H	102.2 x 58.9 x 48.9 in. (2,596 x 1,497 x 1,241 mm)
Wheelbase	67.3 in. (1,709 mm)
Seat height	26.6 in. (675 mm)
Ground clearance	4.5 in. (115 mm)
Dry weight	948 lb (430 kg)

Chassis
Front suspension	Double A-arms with anti-roll bar
Front shocks type / travel	SACHS† Big-Bore shocks / 5.1 in. (129 mm)
Rear suspension	Swing-arm
Rear shocks type / travel	SACHS shock with manual air preload adjustment / 5.2 in. (132 mm)
Electronic brake distribution system	Foot-operated, hydraulic 3-wheel brake
Front brakes	270 mm discs with Brembo† 4-piston fixed calipers
Rear brake	270 mm disc, 1-piston floating caliper with integrated parking brake
Parking brake	Electrically actuated
Front tires	MC165/55R15 55H
Rear tire	MC225/50R15 76H
Aluminum front rims	5-spoke, Deep Black, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim	Deep Black, 15 x 7 in. (381 x 178 mm)

Capacity
Rider capacity	2
Maximum vehicle load	439 lb (199 kg)
Storage capacity	21 gal (78 L)
Towing capacity	400 lb (182 kg)
Fuel capacity	7.1 gal (27 L)
Fuel Type	Premium unleaded

Feature
Features	2 halogen headlamps (55/60 W) Front fenders with integrated LED lights Black perforated seat Electronic Cruise Control Sport windshield Calibrated for towing a Can-Am trailer Glove box with usb port Integrated hard-side luggage Audio control keypad

Instrumentation
Type	Large panoramic 7.8 in. (19.8 cm) wide LCD color display with BRP Connect™: allowing the integration of vehicle-optimized smartphone apps such as media, navigation and many others controlled through the handlebars.
Main Functions	Speedometer, tachometer, odometer, trip and hour meters, fuel consumption avg, gear position, ECO mode smart assist, temperature, engine lights, electronic fuel gauge, clock and more.
Audio System	BRP Audio 4-speaker sound system with radio, USB, Bluetooth†, 1/8 in. (3.5 mm) audio inputs and Audio control keypad

SafetyAndSecurity
SCS	Stability Control System
TCS	Traction Control System
ABS	Anti-lock Braking System
DPS	Dynamic Power Steering
Anti-theft system	Digitally Encoded Security System (D.E.S.S.™)
HHC	Hill Hold Control

Coverage
Factory Warranty	2-year BRP Limited Warranty with 2-year roadside assistance
Extended Service Terms	B.E.S.T. extended service term available from 12 to 36 months.

2022

SPYDER F3 LIMITED

All Spyder F3-T model features, PLUS:
Even more comfort with self-leveling rear air suspension and integrated passenger backrest, footboards and heated grips
36.5 gal (138 L) storage capacity
Premium BRP Audio 6-speaker sound system, audio control keypad, Cruise Control, towing capabilities and top case
Dark or chrome trims depending on color choice

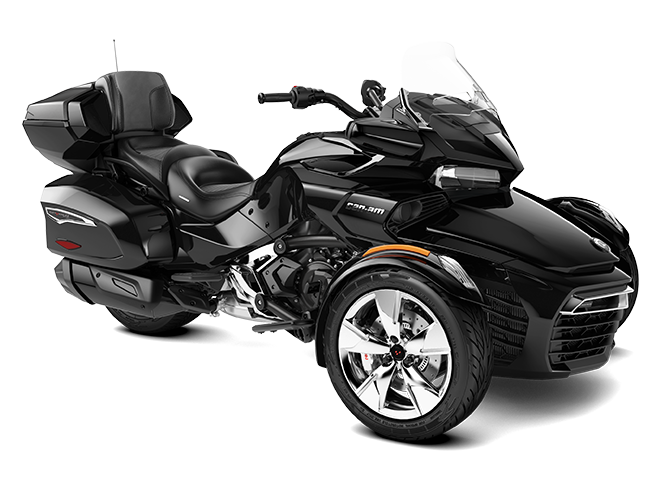

SPYDER F3 LIMITED

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-Limited-MonolithBlackSatin-Dark-000H8NA00-Studio-34FR-NA.png

When it’s time for an extended cruise, the Spyder F3 Limited is the perfect choice. Enjoy the infotainment system, more comfort and additional cargo space for your long adventures.

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-Limited-GlacialBlueMetallic-Dark-000H6NC00-Studio-34FR-NA.png

When it’s time for an extended cruise, the Spyder F3 Limited is the perfect choice. Enjoy the infotainment system, more comfort and additional cargo space for your long adventures.

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-Limited-SteelBlackMetallic-Chrome-000H9NA00-Studio-34FR-NA.png

When it’s time for an extended cruise, the Spyder F3 Limited is the perfect choice. Enjoy the infotainment system, more comfort and additional cargo space for your long adventures.

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-Limited-ViperRed-Chrome-000H9NB00-Studio-34FR-NA.png

When it’s time for an extended cruise, the Spyder F3 Limited is the perfect choice. Enjoy the infotainment system, more comfort and additional cargo space for your long adventures.

Engine

Rotax® 1330 ACE™ in-line 3 cylinders
Transmission

6-speed semi-automatic with reverse function
Suspension

Front: SACHS Big-Bore shocks, Rear: SACHS shock with automatic air preload adjustment
Cargo capacity

36.5 gal (138 L)
Riding modes

Eco Mode

Download spec sheet

Engine
Engine	ROTAX 1330 ACE
Engine displacement	1330 cc
Type	Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control
Bore & stroke	3.31 x 3.14 in. (84 x 80 mm)
Power	115 hp (85.8 kW) @ 7250 RPM
Torque	96 lb-ft. (130.1 Nm) @ 5000 RPM

Transmission
Transmission	SE6
Type	Semi-automatic with reverse function
Gears	6-speed

Dimensions
L x W x H	111.0 x 58.9 x 48.9 in. (2,820 x 1,497 x 1,241 mm)
Wheelbase	67.3 in. (1,709 mm)
Seat height	26.6 in. (675 mm)
Ground clearance	4.5 in. (115 mm)
Dry weight	988 lb (448 kg)

Chassis
Front suspension	Double A-arms with anti-roll bar
Front shocks type / travel	SACHS† Big-Bore shocks / 5.1 in. (129 mm)
Rear suspension	Swing-arm
Rear shocks type / travel	SACHS Shock with self-leveling air preload adjustment / 5.2 in. (132 mm)
Electronic brake distribution system	Foot-operated, hydraulic 3-wheel brake
Front brakes	270 mm discs with Brembo† 4-piston fixed calipers
Rear brake	270 mm disc, 1-piston floating caliper with integrated parking brake
Parking brake	Electrically actuated
Front tires	MC165/55R15 55H
Rear tire	MC225/50R15 76H
Aluminum front rims	5-spoke, Deep Black, 15 x 5 in. (381 x 127 mm) 5-spoke, Chrome, 15 x 5 in. (381 x 127 mm), on F3 Limited Monolith Black Satin & Glacial Blue Metallic
Aluminum rear rim	Deep Black, 15 x 7 in. (381 x 178 mm)

Capacity
Rider capacity	2
Maximum vehicle load	439 lb (199 kg)
Storage capacity	36.5 gal (138 L)
Towing capacity	400 lb (182 kg)
Fuel capacity	7.1 gal (27 L)
Fuel Type	Premium unleaded

Feature
Features	2 halogen headlamps (55/60 W) Front fenders with integrated LED lights Black embossed seat with a “Limited” ingot Electronic Cruise Control Sport windshield Calibrated for towing a Can-Am trailer Glove box with USB port Integrated hard-side luggage Removable top case with integrated passenger backrest Driver and passenger heated grips Driver and passenger footboards Topcase Audio control keypad

Instrumentation
Type	Large panoramic 7.8 in. (19.8 cm) wide LCD color display with BRP Connect™: allowing the integration of vehicle-optimized smartphone apps such as media, navigation and many others controlled through the handlebars.
Main Functions	Speedometer, tachometer, odometer, trip and hour meters, fuel consumption avg, gear position, ECO mode smart assist, temperature, engine lights, electronic fuel gauge, clock and more
Audio System	BRP Audio Premium 6-speaker sound system with radio, USB, Bluetooth†, 1/8 in. (3.5 mm) audio inputs and audio control keypad

SafetyAndSecurity
SCS	Stability Control System
TCS	Traction Control System
ABS	Anti-lock Braking System
DPS	Dynamic Power Steering
Anti-theft system	Digitally Encoded Security System (D.E.S.S.™)
HHC	Hill Hold Control

Coverage
Factory Warranty	2-year BRP Limited Warranty with 2-year roadside assistance
Extended Service Terms	B.E.S.T. extended service term available from 12 to 36 months.

2022

SPYDER F3 LIMITED SPECIAL SERIES

All Spyder F3 Limited model features, PLUS:
Ultimate comfort for two with comfort seat, short-reach handlebar and auxiliary lights.
36.5 gal (138 L) storage
Added convenience and style with top case rack, super sport grille and new 12-spoke wheels
7.8″ (19.8 cm) wide digital gauge with BRP Connect

SPYDER F3 LIMITED SPECIAL SERIES

/content/dam/global/en/can-am-on-road/my22/studio/spyder-f3/ONRD-SPY-MY22-F3-Limited-SS-ViperRed-Dark-000H7NA00-Studio-34FR-NA.png

Spyder F3 Limited Special Series makes unparalleled comfort and convenience possible. With its bold muscular look and sporty design, every roadtrip is unforgettable.

Engine

Rotax® 1330 ACE™ in-line 3 cylinders
Transmission

6-speed semi-automatic with reverse function
Suspension

Front: SACHS Big-Bore shocks, Rear: SACHS shock with automatic air preload adjustment
Cargo capacity

36.5 gal (138 L)
Riding modes

Eco Mode

Download spec sheet

Engine
Engine	ROTAX 1330 ACE
Engine displacement	1330 cc
Type	Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control
Bore & stroke	3.31 x 3.14 in. (84 x 80 mm)
Power	115 hp (85.8 kW) @ 7250 RPM
Torque	96 lb-ft. (130.1 Nm) @ 5000 RPM

Transmission
Transmission	SE6
Type	Semi-automatic with reverse function
Gears	6-speed

Dimensions
L x W x H	111.0 x 58.9 x 48.9 in. (2,820 x 1,497 x 1,241 mm)
Wheelbase	67.3 in. (1,709 mm)
Seat height	26.6 in. (675 mm)
Ground clearance	4.5 in. (115 mm)
Dry weight	988 lb (448 kg)

Chassis
Front suspension	Double A-arms with anti-roll bar
Front shocks type / travel	SACHS† Big-Bore shocks / 5.1 in. (129 mm)
Rear suspension	Swing-arm
Rear shocks type / travel	SACHS Shock with self-leveling air preload adjustment / 5.2 in. (132 mm)
Electronic brake distribution system	Foot-operated, hydraulic 3-wheel brake
Front brakes	270 mm discs with Brembo† 4-piston fixed calipers
Rear brake	270 mm disc, 1-piston floating caliper with integrated parking brake
Parking brake	Electrically actuated
Front tires	MC165/55R15 55H
Rear tire	MC225/50R15 76H
Aluminum front rims	12-spoke, Carbon Black, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim	Carbon Black, 15 x 7 in. (381 x 178 mm)

Capacity
Rider capacity	2
Maximum vehicle load	439 lb (199 kg)
Storage capacity	36.5 gal (138 L)
Towing capacity	400 lb (182 kg)
Fuel capacity	7.1 gal (27 L)
Fuel Type	Premium unleaded

Feature
Features	2 halogen headlamps (55/60 W) Front fenders with integrated LED lights Black embossed seat with a “Limited” ingot Cruise control Sport windshield Calibrated for towing a Can-Am trailer Glove box with USB port Integrated hard-side luggage Top case with integrated passenger backrest Driver and passenger heated grips Driver and passenger footboards Audio control keypad Auxiliary light Super sport grill Short reach handlebar Top case rack Comfort seat

Instrumentation
Type	Large panoramic 7.8 in. (19.8 cm) wide LCD color display with BRP Connect™: allowing the integration of vehicle-optimized smartphone apps such as media, navigation and many others controlled through the handlebars.
Main Functions	Speedometer, tachometer, odometer, trip and hour meters, fuel consumption avg, gear position, ECO mode smart assist, temperature, engine lights, electronic fuel gauge, clock and more
Audio System	BRP Audio Premium 6-speaker sound system with radio, USB, Bluetooth†, 1/8 in. (3.5 mm) audio inputs and audio control keypad

SafetyAndSecurity
SCS	Stability Control System
TCS	Traction Control System
ABS	Anti-lock Braking System
DPS	Dynamic Power Steering
Anti-theft system	Digitally Encoded Security System (D.E.S.S.™)
HHC	Hill Hold Control

Coverage
Factory Warranty	2-year BRP Limited Warranty with 2-year roadside assistance
Extended Service Terms	B.E.S.T. extended service term available from 12 to 36 months.
