Explore Maverick Trail Packages & Specifications
-
2021Maverick Trail
Transportation and preparation not included.-
Trail
- 800: 51 hp / 1000: 75 hp
- Up to 10.5 in. (26.7 cm) suspension travel
- 26 in. Carlisle† ACT tires
- Ergoprint seats

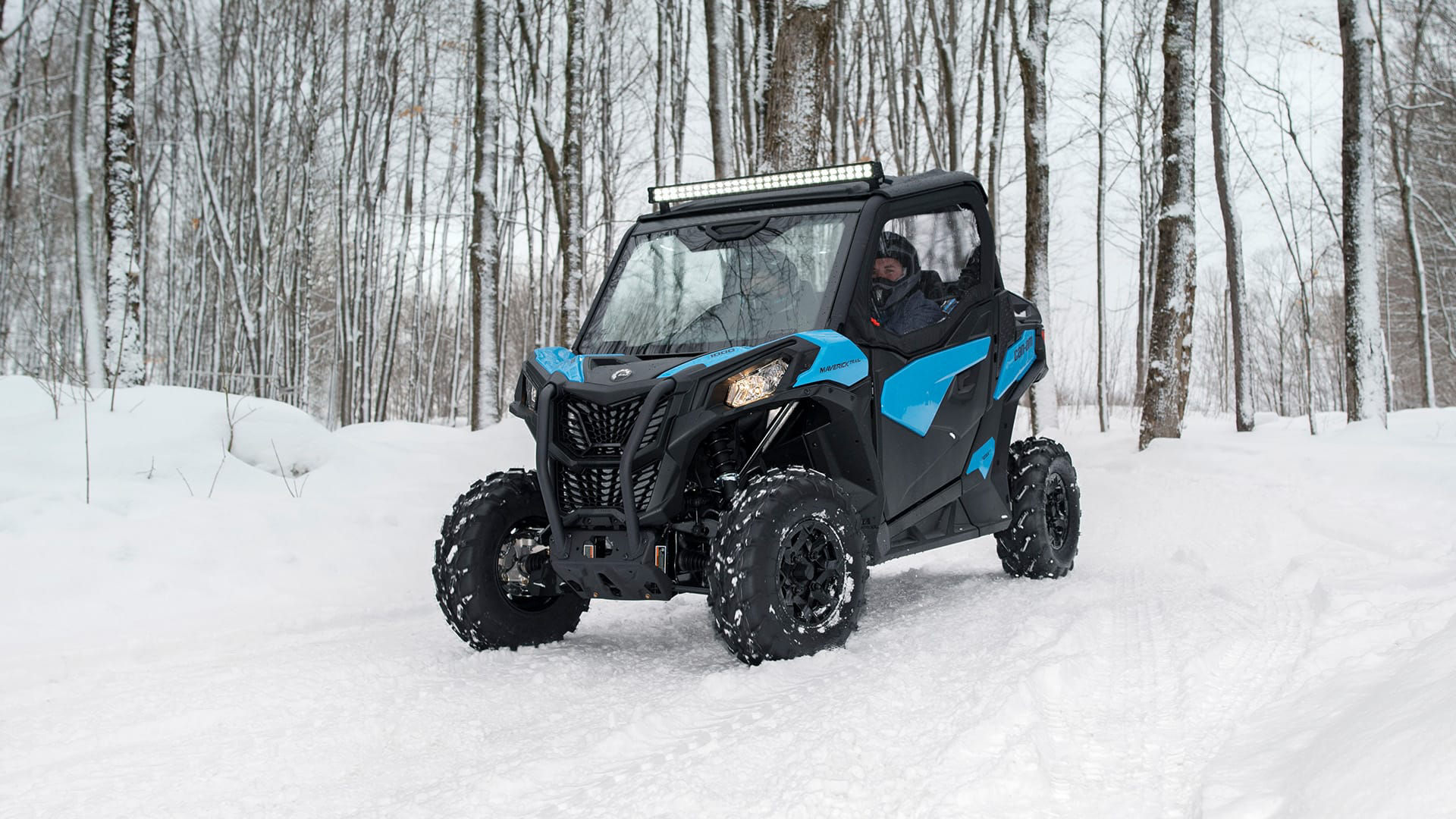

Maverick Trail
![Can-Am Red]()
GREAT ADVENTURES AHEAD. Built 50 in. wide and capable of going as far as you can: the most comfortable, agile, and adaptable Can-Am ever.
-
Engine
800: Rotax® 799.9 cc, V-twin, liquid cooled 1000: Rotax® 976 cc, V-twin, liquid cooled
-
Features
Integrated front steel bumper, Full skid plate,
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Tires
12 in. steel wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: TTA with sway bar
Engine Engine - 800
Engine displacement - 800
Type - 800: 51 hp, Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System (QRS) CVT with high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control SPORT / ECO™ modes
Power Steering - N/A
Tires/Wheels Front Tires - Carlisle ACT 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle ACT 26 x 9 x 12 in. (66 x 22.9 x 30.5 cm)
Wheels - 12 in. (30.5 cm) steel
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 118 x 50 x 69 in. (300.5 x 127 x 175.3 cm)
Wheel Base - 90.6 in. (230.1 cm)
Ground Clearance - 10 in. (25.4 cm)
Chassis Cage - Profiled cage ROPS approved
Dry Weight - 1,314 lb (596 kg)
Cargo Box Capacity - 300 lb (136 kg)
Storage Capacity - Total: 5.3 gal (20.2 L) Glove Box: 4.1 gal (15.6 L) Driver storage: 0.4 gal (1.5 L) Center console and Cup holders: 0.8 gal (3.1 L)
Towing Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10 gal (38 L)
Suspensions Front Suspension - Double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with sway bar / 10.5 in. (26.7 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - Two 55 W reflectors and LED tail lights
Winch - N/A
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, Full skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Maverick Trail DPS
Transportation and preparation not included.-
Trail
- 800: 51 hp / 1000: 75 hp
- Up to 10.5 in. (26.7 cm) suspension travel
- 26 in. Carlisle† ACT tires
- Ergoprint seats with color accents
- Dynamic Power Steering (DPS)
Maverick Trail DPS
![Octane Blue]()
![Triple Black]()
![Mossy Oak Break-Up Country Camo]()
TURN BY TURN. Torque-rich Rotax power and confidence-inspiring Dynamic Power Steering (DPS) ensures complete control, comfort & capability beyond its 50 in. stance.
-
Engine
800: Rotax® 799.9 cc, V-twin, liquid cooled 1000: Rotax® 976 cc, V-twin, liquid cooled
-
Features
Integrated front steel bumper, Full skid plate, Half doors standard on the Rotax 1000 option
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
-
Tires
12 in. cast-aluminum wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: TTA with sway bar
Engine Engine - 800
1000
Engine displacement - 800
1000
Type - 800: 51 hp, Rotax® 799.9 cc, V-twin, liquid cooled
1000: 75 hp, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System (QRS) CVT with high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control SPORT / ECO™ modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle ACT 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle ACT 26 x 9 x 12 in. (66 x 22.9 x 30.5 cm)
Wheels - 12 in. (30.5 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 118 x 50 x 69 in. (300.5 x 127 x 175.3 cm)
Wheel Base - 90.6 in. (230.1 cm)
Ground Clearance - 10 in. (25.4 cm)
Chassis Cage - Profiled cage ROPS approved
Dry Weight - 800: 1,331 lb (603.7 kg)
1000: 1,364 lb (618.7 kg)
Cargo Box Capacity - 300 lb (136 kg)
Storage Capacity - Total: 5.3 gal (20.2 L) Glove Box: 4.1 gal (15.6 L) Driver storage: 0.4 gal (1.5 L) Center console and Cup holders: 0.8 gal (3.1 L)
Towing Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10 gal (38 L)
Suspensions Front Suspension - Double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with sway bar / 10.5 in. (26.7 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - Two 55 W reflectors and LED tail lights
Winch - N/A
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, Full skid plate
Integrated front steel bumper, Half doors, Full skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
