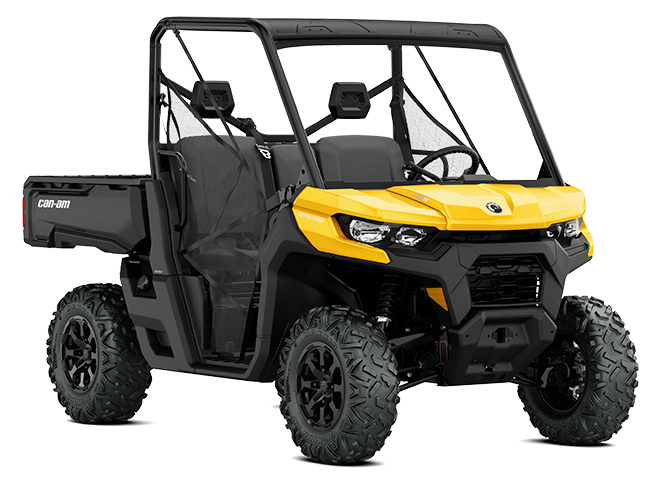

2021Defender DPS
-
Work
- Trail
- Hunting
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Integrated front steel bumper
![green]()
![yellow]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc, V-twin, liquid cooled
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
HD8-HD10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD8
HD10
Engine displacement - 799
976
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD8-HD10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
Extra-L / H / N / R / P
HD8-HD10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD8-HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - HD8-HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - HD8-HD10: 14-in. (35.6 cm) cast-aluminum
HD8-HD10: 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - HD8-HD10: Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD5-HD8: 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
HD10: 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD8: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD8: 1,521.2 lb (690 kg)
HD10: 1,536.6 lb (697 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - HD8-HD10: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - HD8-HD10: 2,500 lb (1134 kg)
Payload Capacity - HD8-HD10: 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD5-HD8: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD5-HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display:
Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - HD8-HD10: 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - HD8-10: 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years BRP limited warranty
1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender XU
-
Work
- Trail
- Hunting
- HD8: 50 hp
- Up to 11 in. (28cm) ground clearance
- HD8: 27-in. (68.6 cm) Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![yellow]()
READY TO TAKE THE JOB. The best in class Defender comes equipped with valued genuine Can-Am accessories including the windscreen with wiper, towbar, roof and breaking holding mechanism to provide more comfort and usability to your everyday tasks
-
Engine
Rotax 799.9 cc V-twin
-
Features
integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L /H/ N/ R/ P
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
-
Engine Engine - HD8
Engine displacement - 799
Type - 50 hp / 50 lb-ft, Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok QE auto-locking front differentia
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work mode
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD: 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Dry Weight - HD8: 1,521.2 lb (690 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - HD8: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - HD8: 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) trave
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) trave
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in. hitch receiver
Warranty Factory - 2 years BRP limited warranty
-
-
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 28 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Lower Storage 83.6 gal (316.5 L), Integrated front steel bumper
![yellow]()
PERFECT PLATFORM. The world’s best Can-Am with a 6 x 4.5 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD10
Engine displacement - 976
Type - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 153 x 64 x 78 in (390 x 163 x 198 cm)
Wheel Base - 115.5-in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage ROPS approved
Dry Weight - 1,600.6 lb (726 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L) 83.6 gal (316.5 L) Lower storage: 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12 V (30 amp/h)
Magneto - 650 W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper HMWPE central skid plate
Hitch Type - 2-in. hitch receiver
Warranty Factory - 2 years BRP limited warranty
-
-
2021Defender MAX DPS
-
Work
- Trail
- Hunting
- HD8: 50 hp
- Up to 12.5 in. (31.8 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Integrated front steel bumper
![green]()
TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco-Lok QE 4WD—and get it done.
-
Engine
HD8: Rotax® 799.9 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar
-
Seat
Dual VERSA-PRO bench seats
Engine Engine - HD8
Engine displacement - 799
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - HD8: 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD8: 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD8: 1,750.4 lb (794 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD8: Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years BRP limited warranty
-
-
2021Defender XT
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- 4,500-lb winch, XT front bumper
![hyper-silver]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, Full hard roof, 4,500-lb winch with roller fairlead, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD10
Engine displacement - 976
Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD10: 125.7 x 64 x 80 in. (319,4 x 162.5 x 203.2 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD10: 1,600.6 lb (726 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 1,500 lb (680 kg)
Person Capacity - 3
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years BRP limited warranty
-
-
2021Defender X mr
-
Mud
- Work
- Hunting
- HD10: 82 hp - 69 lb-ft
- 15 in. (38.1 cm) ground clearance
- 30 in. ITP Cryptid† tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Smart-Lok™, 4,500-lb winch with synthetic rope, heavy-duty front steel bumper
![iron-gray---manta-green]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards, Relocated 4,500-lb winch with synthetic rope and roller fairlead, 7.6 in. digital display with keypad, Signature LED, X mr trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-alumium
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD10: 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - 1,697.6 lb (770 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar and sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bench seat with bolster seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years BRP limited warranty
-
-
2021Defender MAX XT
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- Up to 12.5 in. (31.8 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- 4,500-lb winch, XT front bumper
![mossy-oak-break-up-country-camo]()
![boreal-green]()
EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, 4,500-lb winch with roller fairlead, HMWPE full skid plate, 2-piece full hard roof, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
Dual VERSA-PRO bolster reinforced bench seats
Engine Engine - HD10
Engine displacement - 976
Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD10 : 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - HD10: 1,902.6 lb (863 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 2 years BRP limited warranty
-
Download spec sheet
Share
