Main Features
- Leading Engine
- Interior Comfort
- Power Tilt Bed
- Under bed storage
- Hauling & Towing
- Torque
Explore Defender Packages & Specifications
-

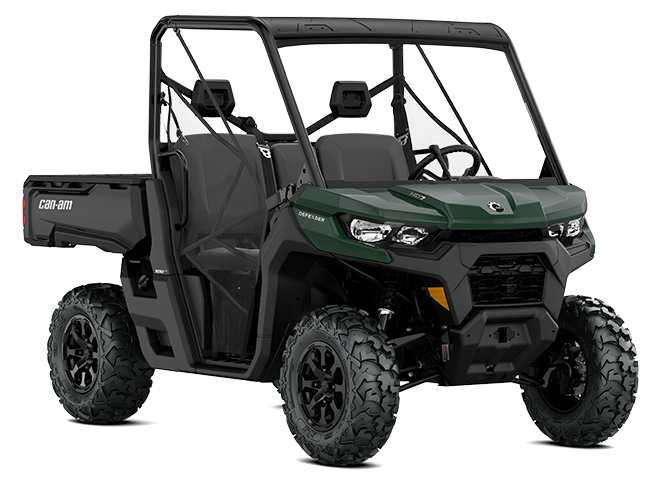

2024Defender DPS
Transportation and preparation not included.-
Work
- Hunting
- Defender top features
- Visco-Lok† QE auto-locking front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
Starting at $27,559
Transportation and preparation not included.-
Engine
53 hp (41 lb-ft torque) Rotax HD7 single cylinder engine / 65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD7
Engine displacement - 650
Type - 52 hp/42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary CVT with engine braking and Electronic Drive Belt Protection L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† QE auto-locking front differentia
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,471 lb (667 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-

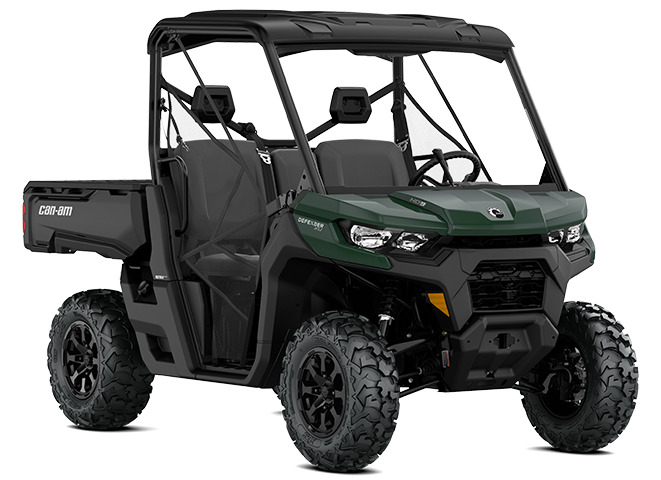

2024Defender XU HD9
Transportation and preparation not included.-
Work
- Hunting
- Defender top features
- Brake holding mechanism
- Selectable Turf Mode/2WD/4WD with Visco-Lok' auto-locking front differential
- Full Hard Roof
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
![yellow]()
DO IT ALL. The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
Starting at $30,859
Transportation and preparation not included.-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat with passenger seats flipping up Underside hooks
-
Features
Integrated front steel bumper, HMWPE central skid plate and full hard roof
Engine Engine - HD9
Engine displacement - 799
Type - 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation, and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,553 lb (706 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) trave
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) trave
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, Full hard roof
Hitch Type - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender XU HD10
Transportation and preparation not included.-
Work
- Hunting
- Defender top features
- Brake holding mechanism
- Selectable Turf Mode/2WD/4WD with Visco-Lok' auto-locking front differential
- Full Hard Roof
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
DO IT ALL. The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
Starting at $33,259
Transportation and preparation not included.-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat with passenger seats flipping up Underside hooks
-
Features
Integrated front steel bumper, HMWPE central skid plate and full hard roof
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation, and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,573 lb (715 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched Double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, Full hard roof
Hitch Type - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
Transportation and preparation not included.-
Work
- Hunting
- Industry-leading 137 x 182 cm cargo box with easy flat-bed conversion and dump box
- Lower box storage of 83.6 gal (316.5 L)
- Visco-Lok QE front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![yellow]()
PERFECT PLATFORM. The world’s best Can-Am with a 6 x 4.5 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
Starting at $34,259
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation, and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO / ECO Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 154.1 x 64 x 78 in. (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5-in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,815 lb (823 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,570 lb (712 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12 V (18 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seat flipping up, Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper HMWPE central skid plate
Hitch Type - 2-in. hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender XT
Transportation and preparation not included.-
Work
- Hunting
- Defender DPS top features
- Brake holding mechanism
- 2041-kg winch
- Full hard roof
- XT front bumper
![timeless-black]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs (2041-kg) factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
Starting at $33,959
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 125.7 x 64 x 80 in. (319,4 x 162.5 x 203.2 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,623 lb (736 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced XT seat skin.
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender X mr
Transportation and preparation not included.-
Mud
- Hunting
- Smart-Lok featuring 4WD MUD mode
- Strategically positioned CVT air intakes and exhaust.
- Mudguards
- Heavy-duty front steel bumper, Aluminum rock sliders
- 30 in. tires on 14 in. cast-aluminum wheels
![wildland-camo]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
Starting at $37,659
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate, 7.6 in. digital display with keypad, Can-Am LED Signature
-
Shocks
Relocated 2041-kg winch with synthetic rope and roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high-airflow ventilation with strategically positioned CVT air intake and exhaust, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok technology
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Swamp Force 30 x 9 x 14 in.
Rear Tires - XPS Swamp Force 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,746 lb (792 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar/12 in. (30.5 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 12 in. (30.5 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED signature lights, LED tail lights
Winch - High mount 4,500 lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender Limited
Transportation and preparation not included.-
Hunting
- Trail
- Auto heating, venting and air conditioning (HVAC) system
- 7.6 in. digital display with keypad
- XT front bumper
- 27 in. tires on 14 in. cast-aluminum wheels
![stone-gray]()
HEATING, VENTING & AIR CONDITIONING. Work & play in complete comfort, loaded with the features like front electric window, flip-up winshield, and capability you'd expect from our most refined all-weather workhorse.
Starting at $47,659
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass window, 7.6 in. digital display with keypad, Can-Am LED signature
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with exclusive Smart-Lok*
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9 x 14 in.
Rear Tires - XPS Trac Force 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 126 x 65 x 81 in (319 x 165.1 x 252 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 14 in. (30.5 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,976 lb (896 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 12 in. (30.5 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 12 in. (30.5 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED signature lights, LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full colour match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, Rear glass window, Panoramic mirror, Auto heating and air conditioning (HVAC) climate system
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender MAX Limited
Transportation and preparation not included.-
Hunting
- Trail
- Defender MAX XT top features
- Auto heating, venting and air conditioning (HVAC) system
- Painted doors with electric opening windows
- 7.6 in. digital display with keypad
- Panoramic mirror
![stone-gray]()
COMFORT FOR THE WHOLE CREW. Standard 3-mode air conditioning turns the Defender MAX into the perfect way to ensure up to 6 people can work, travel and adapt as the conditions demand.
Starting at $50,059
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass window, 7.6 in. digital display with keypad, Can-Am LED Signature, Panoramic mirror
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection Extra-L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with exclusive Smart-Lok*
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9 x 14 in.
Rear Tires - XPS Trac Force 30 x 10 x 14 in
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158.3 x 65 x 81 in. (402 x 165.1 x 226 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 2,466 lb (1,119 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,225 lb (555 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar/12 in. (30.5 cm) trave
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/12 in. (30.5 cm) trave
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - DC outlet (10-A) , USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED signature lights, LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full colour match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, Rear glass window, Panoramic mirror, Auto heating and air conditioning (HVAC) climate system
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender MAX DPS
Transportation and preparation not included.-
Work
- Hunting
- Visco-Lok† QE auto-locking front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco-Lok QE 4WD—and get it done.
Starting at $32,359
Transportation and preparation not included.-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine
-
Seat
Dual VERSA-PRO bench seats & flip-up passenger seat
-
Features
HMWPE central skid plate
Engine Engine - HD9
Engine displacement - 976
Type - 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 / 11 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD9: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - 1,771 lb (803 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seats with passenger seats flipping up Underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender MAX XT
Transportation and preparation not included.-
Work
- Hunting
- Defender MAX DPS top features
- Brake holding mechanism
- 2041-kg winch
- 2-piece full hard roof
- XT front bumper
![stone-gray]()
EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
Starting at $36,359
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Features
HMWPE full skid plate
-
Shocks
2041-kg winch with roller fairlead
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Dry Weight - 1,928 lb (875 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 4.5 in. wide digital display
Battery - 12-V (30 amp/h)
Magneto - 650 W
Instrumentation - DC outlet (10-A), USB Port (10-A) x 2
Lighting - Front lighting output 140 W, LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats with passenger seats flipping up. Adjustable driver seat, underside hooks, reinforced XT seat skin.
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
-
2024Defender 6x6 DPS
Transportation and preparation not included.-
Hunting
- Work
- Industry-leading 137 x 182 cm cargo box
- Industry-leading 1360-kg towing capacity
- Visco-Lok QE front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
CAN-AM OFF-ROAD REVOLUTION. Six wheels, unlimited potential. Get the most traction, load-carrying, power, and capability ever engineered into an off-road workhorse.
Starting at $37,459
Transportation and preparation not included.-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bench seats & flip-up passenger seat
-
Features
HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control , ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9 x 14 in.
Rear Tires - XPS Trail King 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 154.1 x 64 x 78 (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Dry Weight - 1,953 lb (886 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140 W, LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 3-year unlimited km powertrain & Rotax® engine warranty and 1-year warranty & unlimited km on the rest of the unit
-
Download spec sheet
Share
YOU MAY ALSO LIKE
-
2023Defender
Built extra tough to take you way beyond the daily grind, Defender is the most capable Can-Am Side-by-Side for work. On worksites, hunting trips, in agribusiness & anywhere you need it gets the job done right.
-
2023Commander
Transportation and preparation not included.DO IT ALL. You want to play. You want to work. You want everything in between. You need a legend on wheels. There's only one machine engineered to make it happen. Honed over refinement and redesign, it's a true original, as versatile as you are. You need the Can-Am Commander.
-
2023Maverick X3
Transportation and preparation not included.Where driving can really take you. Explore, ride, and roar off-road in our purpose-built-for-anything high-performance vehicle. It took us to the podium at Dakar 5 years in a row. Now it’s your turn to take the lead.
-
2025Maverick R
Transportation and preparation not included.Unparalleled off-roading performance has arrived. Blast through any terrain and never compromise on power, comfort, connectivity or style. Get outside, get dirty and get riding with the most powerful Can-Am SxS.
