2020Outlander
-
Work
- Trail
- Recreational Riding
- 650: 62 hp / 850: 78 hp
- 26-in. tires on 12-in. steel wheels
- Prewired for available winch
![viper-red]()
PERFORMANCE BEYOND ITS PRICE. The most capable Outlander ever, with wider stance, better handling & class-leading power for jobs and thrilling rides alike.
-
Engine
650: Rotax 649.6 cc V-twin, liquid cooled 850: Rotax 854 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. steel wheels
-
Protection
Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
Engine Engine - 650
850
Engine displacement - 650
850
Type - 650: 62HP, Rotax 649.6 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok auto-locking front differential
Power Steering - N/A
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions Tailgate Load Capacity - /content/dam/global/en/can-am-off-road/my20/documents/en_us/comparison-sheets/atv/2020_Can-Am_Outlander_650_EN_USD.pdf
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 650: Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
850: 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander DPS
-
Recreational Riding
- Trail
- 650: 62 hp / 850: 78 hp
- 26-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
![orange]()
Take command of unmatched all-terrain performance with the new 2020 Outlander DPS ATV. Wider, revised suspension makes the most of legendary Rotax power and tows up to 1,650 lbs (750 kg). When you're ready to gear up, load the cargo racks and go!
-
Engine
650: Rotax 649.6 cc V-twin, liquid cooled 850: Rotax 854 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
850
Engine displacement - 650
850
Type - 650: 62HP, Rotax 649.6 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 650: 749 lb (341kg)
850: 800 lb (363 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 650: Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
850: 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

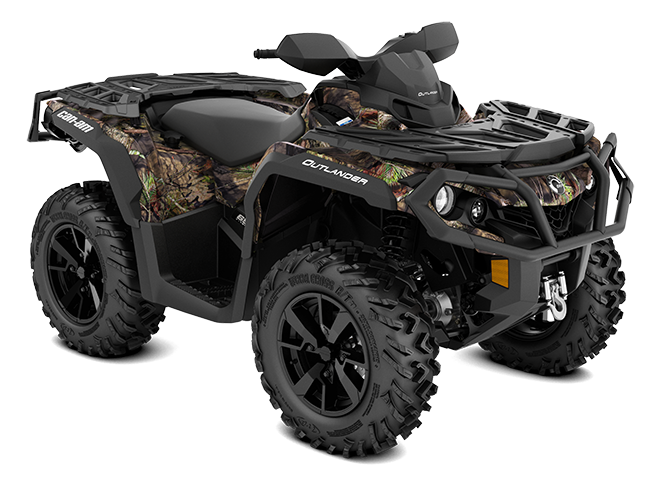

2020Outlander XT
-
Recreational Riding
- Trail
- 650: 62 hp / 850: 78 hp / 1000R: 91 hp
- 26-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Winch
![mossy-oak-break-up-country-camo]()
![iron-gray---octane-blue]()
![black---can-am-red]()
THE EXTRAS COME STANDARD. More exterior protection, upgraded bumpers, and winch ensure it’s factory-fit for your next adventure.
-
Engine
650: Rotax 649.6 cc V-twin, liquid cooled 850: Rotax 854 cc V-twin, liquid cooled 1000R: Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
1000R
850
Engine displacement - 650
1000
850
Type - 650: 62HP, Rotax 649.6 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850-1000R: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Rear - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 650: 749 lb (341kg)
1000R: 826 lb (375 kg)
850: 800 lb (363 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 650: Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
850-1000R: 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander XT-P
-
Performance
- Trail
- Recreational Riding
- 850: 78 hp / 1000R: 91 hp
- 26-in. tires on 14-in. cast-aluminum beadlock wheels
- Tri-Mode Dynamic Power Steering (DPS)
- FOX† 1.5 PODIUM QS3† shocks
- Winch, bumpers
![carbon-black---sunburst-yellow]()
Take command of unmatched all-terrain performance with the new Outlander XT-P ATV. Wider, revised FOX suspension makes the most of torquey Rotax power and tows up to 1,650 lbs (750 kg). XT-P adds FOX† 1.5 PODIUM† QS3 shocks, WARN winch, and more.
-
Engine
850: Rotax 854 cc V-twin, liquid cooled 1000R: Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum beadlock wheels
-
Protection
Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with full wrap handguards, Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 850
1000R
Engine displacement - 850
1000
Type - 850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum beadlock
Breaks Front - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 850: 800 lb (363 kg)
1000R: 826 lb (375 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with wind full wrap handguards and square pad, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander X xc
-
Performance
- Trail
- 91 hp
- 26-in. tires on 14-in. cast-aluminum beadlock wheels
- Tri-Mode Dynamic Power Steering (DPS)
- FOX† 1.5 PODIUM RC2† shocks
- Bumpers
![black--hyper-silver---can-am-red]()
BUILT TO TACKLE THE EXTREME PRESENT. For riders seeking the ultimate all-round performance and handling—with all of the finest factory-fit components to create the ultimate cross country-ready Outlander.
-
Engine
Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum beadlock wheels
-
Protection
Front bumper with pre-runner Aluminum taper-profile handlebar with full wrap handguards and square pad Front, center & footwell aluminum skid plates HMWPE A-arms protectors Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 1000R
Engine displacement - 1000
Type - 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum beadlock
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 826 lb (375 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† RC2
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† RC2
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Front bumper with pre-runner, Aluminum taper-profile handlebar with full wrap handguards, Front, center & footwell aluminum skid plates , HMWPE A-arms protectors, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Recreational Riding
- Trail
- 78 hp
- 26-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Winch, heated grips and visor outlet
![white]()
MADE TO MASTER COLD CLIMATES. Work or play in the worst of winter with a winshield, heated grips and visor outlet, factory-installed winch, and extra-low gearing ideal for plowing.
-
Engine
Rotax 854 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Mudguards, Heated grips & visor outlet, Windshield
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 850
Engine displacement - 850
Type - 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra-low L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 61.4 in. (218.4 x 121,9 x 156 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 850: 800 lb (363 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Mudguards, Heated grips & visor outlet, Windshield
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Hunting
- Trail
- Recreational Riding
- 62 hp
- 26-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Winch, bumpers, heated grips
![mossy-oak-break-up-country-camo]()
Exclusive Mossy Oak Break-Up Country camouflage, 26-in. Carlisle ACT HD 6-ply tires and High-strength, multifunction racks with LinQ™ quick-attach accessory system will have you itching to take the 2020 Outlander Mossy Oak Hunting Edition out scouting. Wider, revised suspension makes the most of legendary Rotax power.
-
Engine
Rotax 649.6 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Front, central & footwell aluminum skid plates, A-arms & TTI HMWPE protectors, Heated grips & throttle, Handlebar wind deflectors, Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 649.6 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT HD 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† ACT HD 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121.9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 12 in. (30.5 cm)
Estimated Dry Weight* - 749 (341 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Front, central & footwell aluminum skid plates, A-arms & TTI HMWPE protectors, Heated grips & throttle, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander X mr 650
-
Mud
- Trail
- 62 hp
- 28-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
- Bumper, relocated radiator
![granite-gray--black---manta-green]()
CONFIDENCE THAT RUNS DEEP. Built with extreme mud and wet terrain use with added snorkel, exterior protection and retuned suspension, engine, transmission—and bog-ready wheels & tires.
-
Engine
Rotax 649.6 cc V-twin, snorkeled, liquid cooled with relocated radiator
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front bumper, Mud-riding footrests
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 649.6 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Mega Mayhem 28 x 8 x 12 in. (71.1 x 20.3 x 30.5 cm)
Rear Tires - ITP† Mega Mayhem 28 x 10 x 12 in. (71.1 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 88 x 48.5 x 50.5 in. (224 x 123 x 128 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11.75 in. (29.9 cm)
Estimated Dry Weight* - 874 lb (396 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 35.25 in. (89.5 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Heavy-duty front bumper, Mud-riding footrests
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander X mr 850
-
Performance
- Mud
- Trail
- 78 hp
- 30-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- FOX† 1.5 PODIUM shocks
- Winch, bumpers, relocated radiator
![granite-gray--black---manta-green]()
MADE WITH MUD IN MIND. Upgraded to maximize the power of the Rotax 850, get a winch, upgraded suspension, wheels & tires that will get you through the nastiest, muddiest terrain.
-
Engine
Rotax 854 cc V-twin, snorkeled, liquid cooled with relocated radiator
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Heavy-duty front bumper, Mud-riding footrests
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 850
Engine displacement - 850
Type - 78HP, Rotax 854 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Cryptid 30 x 9 x 14 in. (76.6 x 22.9 x 35.6 cm)
Rear Tires - ITP† Cryptid 30 x 9 x 14 in. (76.6 x 22.9 x 35.6 cm)
Wheels - 14-in.cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 88 x 50 x 51.5 in. (224 x 127 x 131 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 13 in. (33 cm)
Estimated Dry Weight* - 990 lb (450 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 36.75 in. (93.3 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar
Front Shocks - FOX† 1.5 PODIUM†
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - FOX† 1.5 PODIUM†
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front bumper, Mud-riding footrests
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander X mr 1000R
-
Performance
- Mud
- Trail
- 91 hp
- 30-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- FOX† 1.5 PODIUM shocks
- Winch, bumpers, relocated radiator
![carbon-black---platinum-silver]()
![granite-gray--black---manta-green]()
MADE WITH MUD IN MIND. Upgraded to maximize the power of the Rotax 850, get a winch, upgraded suspension, wheels & tires that will get you through the nastiest, muddiest terrain.
-
Engine
Rotax 976 cc V-twin, snorkeled, liquid cooled with relocated radiator
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Heavy-duty front bumper, Mud-riding footrests
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 1000R
Engine displacement - 1000
Type - 91HP, Rotax 976 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Cryptid 30 x 9 x 14 in. (76.6 x 22.9 x 35.6 cm)
Rear Tires - ITP† Cryptid 30 x 9 x 14 in. (76.6 x 22.9 x 35.6 cm)
Wheels - 14-in.cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 98 x 50 x 51.5 in. (246 x 127 x 131 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 14 in. (33 cm)
Estimated Dry Weight* - 1016 lb (460 kg)
1014 lb (460 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 36.75 in. (93.3 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar
Front Shocks - FOX† 1.5 PODIUM†
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - FOX† 1.5 PODIUM†
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front bumper, Mud-riding footrests
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander MAX DPS
-
Recreational Riding
- Trail
- 62 hp
- 26-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
![orange]()
HANDLE THE WORST WITH EASE. Dynamic Power Steering (DPS) improves comfort and steering feel everywhere: from tight turns on delicate turf to challenging trails.
-
Engine
Rotax 649.6 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
Engine displacement - 650
Type - 62 hp, Rotax 649.6 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Dry Weight - 827 lb (375 kg)
Rack Capacity - Front: 100 lb (45 kg) Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25.1 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
Instrumentation - Lighter type DC outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

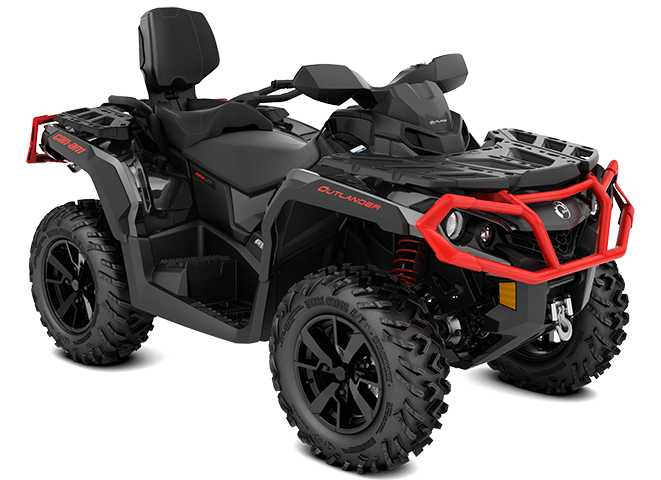

2020Outlander MAX XT
-
Recreational Riding
- Trail
- 650: 62 hp / 850: 78 hp / 1000R: 91 hp
- 26-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Winch, bumpers
![mossy-oak-break-up-country-camo]()
![iron-gray---octane-blue]()
![black---can-am-red]()
THE EXTRAS COME STANDARD. More exterior protection, upgraded bumpers, and winch ensure it’s factory-fit for your next adventure.
-
Engine
650: Rotax 649.6 cc V-twin, liquid cooled 850: Rotax 854 cc V-twin, liquid cooled 1000R: Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
850
1000R
Engine displacement - 650
850
1000
Type - 650: 62HP, Rotax 649.6 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - 650:Electronic Fuel Injection (EFI)
850-1000R:Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 827 lb (375 kg)
874 (396 kg)
900 lb (408 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 650:Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
850-100R:4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander MAX XT-P
-
Performance
- Performance
- Trail
- 850: 78 hp / 1000R: 91 hp
- 26-in. tires on 14-in. cast-aluminum beadlock wheels
- Tri-Mode Dynamic Power Steering (DPS)
- FOX† 1.5 PODIUM QS3† shocks
- Winch, bumpers
![carbon-black---sunburst-yellow]()
PERFORMANCE THAT GOES THE DISTANCE. Fully-loaded for style & off-road speed with adjustable FOX† 1.5 PODIUM† QS3, 14-in beadlock wheels and additional factory upgrades.
-
Engine
850: Rotax 854 cc V-twin, liquid cooled 1000R: Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum beadlock wheels
-
Protection
Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with full wrap handguards and square pad, Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 850
1000R
Engine displacement - 850
1000
Type - 850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum beadlock
Breaks Front - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 850: 874 (396 kg)
1000R: 900 lb (408 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with full wrap handguards and square pad, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Recreational Riding
- Trail
- 78 hp
- 26-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Winch, heated grips and visor outlet
![white]()
MADE TO MASTER COLD CLIMATES. Work or play in the worst of winter with a winshield, heated grips and visor outlet, factory-installed winch, and ‘L’ low gearing ideal for plowing.
-
Engine
Rotax 854 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Mudguards, Heated grips and visor outlet for driver & passenger, Windshield
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 850
Engine displacement - 850
Type - 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra-low L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in. (66 x 20.3 x 35.6 cm)
Rear Tires - ITP† Terracross 26 x 10 x 14 in. (66 x 25.4 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 61,4 in. (238.8 x 121.9 x 156 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 874 (396 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Convertible Rack System (CRS)
Protection - Mudguards, Heated grips and visor outlet for driver & passenger, Windshield
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Recreational Riding
- Trail
- 91 hp
- 27-in. tires on 14-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- FOX† 1.5 PODIUM QS3† shocks
- Winch, bumpers
![boreal-green]()
FULLY-LOADED FROM THE GET-GO. Supreme capability, style & versatility on top of the powerful 1000R Rotax engine. Handle weekend-long 2-up journeys and any conditions along the way.
-
Engine
Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
14-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 1000R
Engine displacement - 1000
Type - 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 900 lb (408 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Integrated/removable Garmin† Montana† 650t touchscreen GPS Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Trail
- Recreational Riding
- 62 hp
- 26-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
![green]()
THE CAVALRY HAS ARRIVED. Whether you’re hauling at capacity or climbing the closest mountain, added 6x6 traction, low ‘L’ gear, and dual-level cargo box mean this Outlander loads & goes like no other ATV.
-
Engine
Rotax 649.6 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Central skid plate
-
Differential
Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 649.6 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 4WD / 6WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 124.8 x 48.5 x 55.3 in. (317 x 123 x 140 cm)
Wheel Base - 90 in. (228,5cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 1100 lb (499 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 700 lb (318 kg)
Storage Capacity - Dual-level cargo box with sidewalls and tailgate Rear: 18.5 gal (70 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - Central skid plate
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Trail
- Recreational Riding
- 82 hp
- 26-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Winch, bumper
![pure-magnesium-metallic]()
BUILT FOR LIFE AT THE TOP. Even though our most fully-equipped 6x6 ATV can do just about anything, your ride never takes a back seat with added protection, wind deflectors, and winch.
-
Engine
Rotax 976 cc V-twin, liquid cooled
-
Suspension
Front: Arched double A-arm with front sway bar / Rear: Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front bumper, Handlebar wind deflectors, Central skid plate
-
Differential
Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 1000
Engine displacement - 1000
Type - 82HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 4WD / 6WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 124.8 x 48.5 x 55.3 in. (317 x 123 x 140 cm)
Wheel Base - 90 in. (228,5cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 1170 lb (531 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 700 lb (318 kg)
Storage Capacity - Dual-level cargo box with sidewalls and tailgate Rear: 18.5 gal (70 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front bumper, Handlebar wind deflectors, Central skid plate
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
Share
