- Rotax engine
- Transmission
- Suspension
- Connectivity
- Smart-Shox
- Modern design
Explore Maverick R Packages & Specifications
Discover the Maverick R family. Too many options? Use our Help me choose tool to narrow your selection.
-
2024Maverick R
-
Performance
- 77 in. 4 Link Trailing arm with aluminum HD tall knuckle
- Smart-Lok™* front differential
- FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
- 30 in. ITP Tenacity XNR tires
- 15 in. Flow Formed wheels
![catalyst-gray---neo-yellow]()
With a 240- HP ROTAX engine, DCT transmission, FOX† 2.5 PODIUM Piggyback with QS3† easy adjustable shocks and heavy-duty tall knuckle suspension, this baby is sure to thrill.
-
Engine
240 hp, Rotax 999T engine
-
Suspension
77 in. 4 Link Trailing arm with aluminum HD tall knuckle
-
Features
Gen 2 Tri-mode DPS High torque
-
Differential
Rotax DCT, 7 Speed with High & Low range
Engine Engine - 999T DCT
Engine displacement - 999
Type - 240 hp, Rotax 999T engine, 999cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Rotax DCT, 7 gears with High & Low range
Drive Train - Lockable front differential with exclusive Smart-Lok* True 2WD/4WD with front diff. lock / 4WD TRAIL ACTIV/ 4WD TRAIL
Power Steering - Gen 2 Tri-mode DPS High torque
Tires/Wheels Front Tires - ITP Tenacity XNR 30 x 10 x 15 in.
Rear Tires - ITP Tenacity XNR 30 x 10 x 15 in.
Wheels - 15 in. Aluminum Flow Formed
Breaks Front - 32 mm hydraulic tripple piston caliper with a 265 mm disc
Rear - 30 mm hydraulic twin piston caliper with a 255 mm disc
Dimensions L x W x H - 138.7 x 78.1 x 67.7 in. (352.2 x 198.5 x 171.9 cm)
Wheel Base - 108 in. (274.3 cm)
Ground Clearance - 17 in. (43.2 cm)
Chassis Cage - High strengh steel (Dual phase) steel tubing and stampings
Estimated Dry Weight* - 2,150 lb (975 kg)
Rack Capacity - 200 lbs (90 kg)
Storage Capacity - Total: 2.1 gal (8.1 L)
Fuel Capacity - 13.2 Gal (50 L)
Suspensions Front Suspension - Forged Aluminum heavy duty Tall Knuckle Double A-arm with sway bar / 25 in. (63.5 cm) suspension travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4 Link Trailing arm with Forged Aluminum heavy duty tall knuckle / 25 in. (63.5 cm) suspension travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment and bottom-out control
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 1700 W
Instrumentation - USB A (Charging port) DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - Premium high-performance LED headlights
Winch - 4,500 lb winch ready bumper (not installed)
Protection - Premium half doors, Front lower deflector, Front / Rear anchor, Full plastic skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

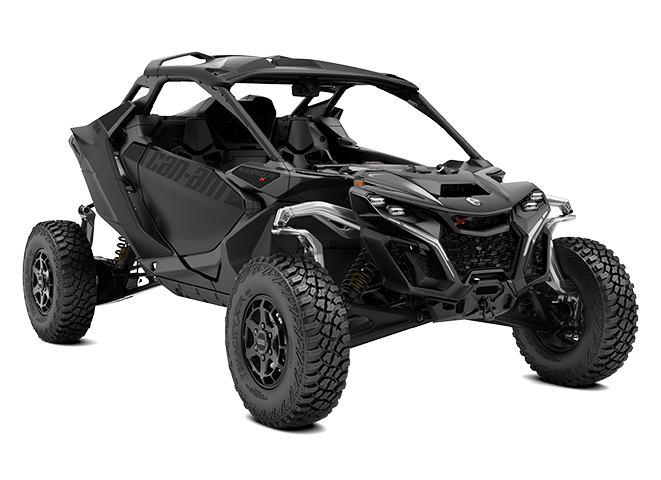

2024Maverick R X
-
Performance
- Maverick R top features
- 4-point harness with shoulder pads
- Rear camera
- 10.25 in. touchscreen display
- Telescopic steering wheel with infotainment controls
![triple-black]()
![legion-red]()
Take things up a notch, with all the features of the base model, plus a 10.25" touchscreen, rear camera, telescopic steering wheel, and a full roof.
-
Engine
240 hp, Rotax 999T engine
-
Suspension
77 in. 4 Link Trailing arm with aluminum HD tall knuckle
-
Features
Gen 2 Tri-mode DPS High torque
-
Differential
Rotax DCT, 7 Speed with High & Low range
Engine Engine - 999T DCT
Engine displacement - 999
Type - 240 hp, Rotax 999T engine, 999cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Rotax DCT, 7 gears with High & Low range
Drive Train - Lockable front differential with exclusive Smart-Lok* True 2WD/4WD with front diff. lock / 4WD TRAIL ACTIV/ 4WD TRAIL
Power Steering - Gen 2 Tri-mode DPS High torque
Tires/Wheels Front Tires - ITP Tenacity XNR 30 x 10 x 15 in.
Rear Tires - ITP Tenacity XNR 30 x 10 x 15 in.
Wheels - 15 in. Aluminum Flow Formed
Breaks Front - 32 mm hydraulic tripple piston caliper with a 265 mm disc
Rear - 30 mm hydraulic twin piston caliper with a 255 mm disc
Dimensions L x W x H - 138.7 x 78.1 x 70.4 in. (352.2 x 198.5 x 177.8 cm)
Wheel Base - 108 in. (274.3 cm)
Ground Clearance - 17 in. (43.2 cm)
Chassis Cage - High strengh steel (Dual phase) steel tubing and stampings
Estimated Dry Weight* - 2,225 lb (1,009 kg)
Rack Capacity - 200 lbs (90 kg)
Storage Capacity - Total: 2.1 gal (8.1 L)
Fuel Capacity - 13.2 Gal (50 L)
Suspensions Front Suspension - Forged Aluminum heavy duty Tall Knuckle Double A-arm with sway bar / 25 in. (63.5 cm) suspension travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4 Link Trailing arm with Forged Aluminum heavy duty tall knuckle / 25 in. (63.5 cm) suspension travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment and bottom-out control
Feature Gauge - 4.5 in. wide digital display with keypad & 10.25 in. touchscreen display
Magneto - 1700 W
Instrumentation - USB A (Charging port & Communication port) DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - Premium high-performance LED headlights Can-Am LED signature
Winch - 4,500 lb winch ready bumper (not installed)
Protection - Full roof, Premium half doors, Front lower deflector, Front / Rear anchor, Full plastic skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2024Maverick R X rs
-
Performance
- Maverick R X top features
- 16 in. Flow Formed Beadlock wheels
- Front and rear camera
- 32 in. ITP Tenacity XNR tires
- FOX† 3.0 PODIUM RC2† Piggyback
![carbon-black---neo-yellow]()
![triple-black]()
Take on any terrain with FOX 3.0 Podium RC2 piggyback shocks with bypass, 32" ITP Tenacity XNR tires, 16" flow formed beadlock wheels, and cameras.
-
Engine
240 hp, Rotax 999T engine
-
Suspension
77 in. 4 Link Trailing arm with aluminum HD tall knuckle
-
Features
Gen 2 Tri-mode DPS High torque
-
Differential
Rotax DCT, 7 Speed with High & Low range
Engine Engine - 999T DCT
Engine displacement - 999
Type - 240 hp, Rotax 999T engine, 999cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Rotax DCT, 7 gears with High & Low range
Drive Train - Lockable front differential with exclusive Smart-Lok* True 2WD/4WD with front diff. lock / 4WD TRAIL ACTIV/ 4WD TRAIL
Power Steering - Gen 2 Tri-mode DPS High torque
Tires/Wheels Front Tires - ITP Tenacity XNR 32 x 10 x 16 in.
Rear Tires - ITP Tenacity XNR 32 x 10 x 16 in.
Wheels - 16 in. Aluminum FlowFormed Beadlock
Breaks Front - 32 mm hydraulic tripple piston caliper with a 265 mm disc
Rear - 30 mm hydraulic twin piston caliper with a 255 mm disc
Dimensions L x W x H - 140 x 78.1 x 71.5 in. (355.6 x 198.5 x 181.5 cm)
Wheel Base - 108 in. (274.3 cm)
Ground Clearance - 17 in. (43.2 cm)
Chassis Cage - High strengh steel (Dual phase) steel tubing and stampings
Estimated Dry Weight* - 2,240 lb (1,016 kg)
Rack Capacity - 200 lbs (90 kg)
Storage Capacity - Total: 2.1 gal (8.1 L)
Fuel Capacity - 13.2 Gal (50 L)
Suspensions Front Suspension - Forged Aluminum heavy duty Tall Knuckle Double A-arm with sway bar / 25 in. (63.5 cm) suspension travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4 Link Trailing arm with Forged Aluminum heavy duty tall knuckle / 25.5 in. (64.8 cm) suspension travel
Rear Shocks - FOX† 3.0 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Feature Gauge - 4.5 in. wide digital display with keypad & 10.25 in. touchscreen display
Magneto - 1700 W
Instrumentation - USB A (Charging port & Communication port) DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - Premium high-performance LED headlights Can-Am LED signature
Winch - 4,500 lb winch ready bumper (not installed)
Protection - Full roof, Premium half doors, Front lower deflector, Front / Rear anchor, Full plastic skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-

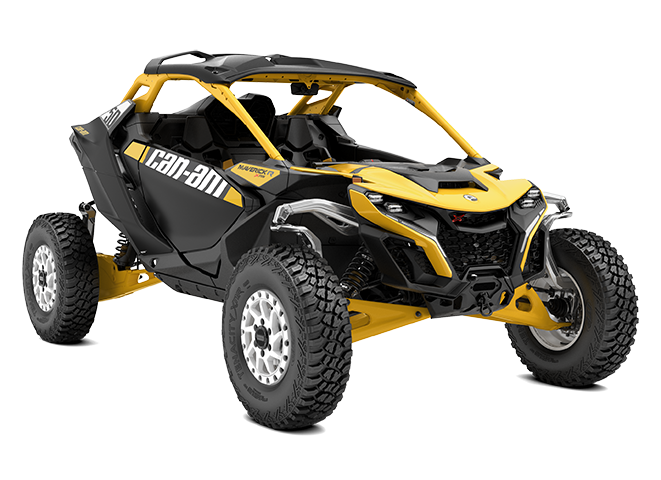

Performance
- Maverick R X rs top features
- FOX† 3.0 PODIUM† Piggyback with bypass and Smart-Shox
![carbon-black---neo-yellow]()
![triple-black]()
For an off-roading experience that’s next level, get the whole package—including Smart-Shox technology. Head and tails above anything else out there.
-
Engine
240 hp, Rotax 999T engine
-
Suspension
77 in. 4 Link Trailing arm with aluminum HD tall knuckle
-
Features
Gen 2 Tri-mode DPS High torque
-
Differential
Rotax DCT, 7 Speed with High & Low range
Engine Engine - 999T DCT
Engine displacement - 999
Type - 240 hp, Rotax 999T engine, 999cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Rotax DCT, 7 gears with High & Low range
Drive Train - Lockable front differential with exclusive Smart-Lok* True 2WD/4WD with front diff. lock / 4WD TRAIL ACTIV/ 4WD TRAIL
Power Steering - Gen 2 Tri-mode DPS High torque
Tires/Wheels Front Tires - ITP Tenacity XNR 32 x 10 x 16 in.
Rear Tires - ITP Tenacity XNR 32 x 10 x 16 in.
Wheels - 16 in. Aluminum FlowFormed Beadlock
Breaks Front - 32 mm hydraulic tripple piston caliper with a 265 mm disc
Rear - 30 mm hydraulic twin piston caliper with a 255 mm disc
Dimensions L x W x H - 140 x 78.1 x 71.5 in. (355.6 x 198.5 x 181.5 cm)
Wheel Base - 108 in. (274.3 cm)
Ground Clearance - 17 in. (43.2 cm)
Chassis Cage - High strengh steel (Dual phase) steel tubing and stampings
Estimated Dry Weight* - 2,250 lb (1,020 kg)
Rack Capacity - 200 lbs (90 kg)
Storage Capacity - Total: 2.1 gal (8.1 L)
Fuel Capacity - 13.2 Gal (50 L)
Suspensions Front Suspension - Forged Aluminum heavy duty Tall Knuckle Double A-arm with sway bar / 25 in. (63.5 cm) suspension travel
Front Shocks - FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring Live Valve Gen 3 (Dual Valve compression & rebound)
Rear Suspension - 4 Link Trailing arm with Forged Aluminum heavy duty tall knuckle / 26 in. (66 cm) suspension travel
Rear Shocks - FOX† 3.0 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring Live Valve gen 3 (Dual Valve compression & rebound)
Feature Gauge - 4.5 in. wide digital display with keypad & 10.25 in. touchscreen display
Magneto - 1700 W
Instrumentation - USB A (Charging port & Communication port) DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - Premium high-performance LED headlights Can-Am LED signature
Winch - 4,500 lb winch ready bumper (not installed)
Protection - Full roof, Premium half doors, Front lower deflector, Front / Rear anchor, Full plastic skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
