Explore Defender XU HD10 / HD11 packages & specifications
-
2027Defender XU XT
-
Ranching & Farming
- Hunting
- HD10 - 80 hp, Triple cylinder / HD11 - 95 hp, Triple cylinder
- Quick-4Lok auto-locking front differential
- 4,500 lb (2,041 kg) winch with synthetic cable and autostop
- Full skid plate, full hard roof, heavy-duty front bumper, mudguards
- LED headlights and LED taillights with back up light
![2027 Can-Am Defender XU XT]()
![dolomite-grey]()
![dark-wildland-camo]()
EQUIPPED FOR ANY JOB. A headache rack for cab and cargo load protection, factory-installed hitch ball mount, and work-ready features. The Gen 2 Defender XU XT is up for whatever jobs come its way.
![2027 Can-Am Defender XU XT]()
![dolomite-grey]()
![dark-wildland-camo]()
EQUIPPED FOR ANY JOB. A headache rack for cab and cargo load protection, factory-installed hitch ball mount, and work-ready features. The Gen 2 Defender XU XT is up for whatever jobs come its way.
-
Engine
HD10: 80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled HD11: 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
LED headlights and LED taillights with back up light
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD10
HD11
Type - HD10: 80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
HD11: 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trail King 2 27 x 9/11 x 14 in.
XPS Trail King 2 29 x 9/11 x 14 in.
Rear Tires - XPS Trail King 2 27 x 9/11 x 14 in.
XPS Trail King 2 29 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 129.8 x 65 x 81 in. (330 x 165 x 206 cm)
Wheel Base - 85 in. (216 cm)
Ground Clearance - 13 in. (33 cm)
14 in. (35.6 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,870 lb (848 kg) (113 lb / 51kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 900 lb (408 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage 3.7 gal (14 L) removable bin
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,400 lb (635 kg) / California only: 1,100 lb (499 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 3
Suspensions Front Suspension - HD10: Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
HD11: Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
HD11: Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display
Battery - 30A/hr (400 CCA)
Magneto - 650 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full heavy-duty HMW plastic skid plate, Full hard roof, Heavy-duty front bumper, Mudguards, Door safety net, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
2027Defender XU XT CAB
-
Ranching & Farming
- Hunting
- HD10 - 80 hp, Triple cylinder
- Heating, venting and air conditioning (HVAC) climate system
- Full glass tilt up windshield with wiper kit
- Full color match doors with locks and electric opening windows
- Quick-4Lok auto-locking front differential
![2027 Can-Am Defender XU XT CAB]()
![dolomite-grey]()
PROVEN POWER, REFINED FURTHER. The Gen 2 Defender XU XT CAB is packed with factory-installed, work-ready upgrades like a headache rack to protect cab components, LinQ tool holders to bring more with you, and a low bed wall extender to up your cargo box by 16”.
-
Engine
80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
Heating, venting and air conditioning (HVAC) climate system
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD10
Type - 80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trail King 2 27 x 9/11 x 14 in.
Rear Tires - XPS Trail King 2 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 129.8 x 65 x 81 in. (330 x 165 x 206 cm)
Wheel Base - 85 in. (216 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,870 lb (848 kg) (417 lb / 189 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 900 lb (408 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage 3.7 gal (14 L) removable bin
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,100 lb (499 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 3
Suspensions Front Suspension - Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display
Battery - 30A/hr (400 CCA)
Magneto - 1700 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full glass tilt up windshield with wiper kit, Full color match doors with locks and electric opening windows, Rear clear glass window, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Heavy-duty front bumper, Mudguards, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-

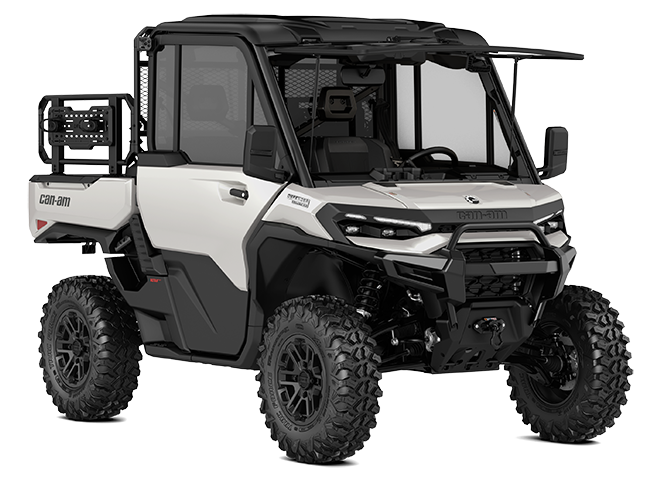

2027Defender XU Limited
-
Ranching & Farming
- Hunting
- HD11 - 95 hp, Triple cylinder
- Heating, venting and air conditioning (HVAC) climate system
- Quick-4Lok auto-locking front differential
- Rockford Fosgate Premium Audio System - Level 2, 2 speakers & subwoofer with AMP
- 5 in. color display with keypad & 10.25 in. Wireless Touch display with rear camera
![2027 Can-Am Defender XU Limited]()
![hybrid-white]()
FACTORY READY TO NEVER STOP WORKING. Everything that defines the Defender as a category-leader, plus work-ready features to make tough jobs seem easy and a fully enclosed CAB with HVAC system for comfort and all-season performance.
-
Engine
95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
LED headlights, LED taillights with back up light & LED signature
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD11
Type - 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9/10 x 15 in.
Rear Tires - XPS Trac Force 30 x 9/10 x 15 in.
Wheels - 15 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 129.8 x 65 x 81 in. (330 x 165 x 206 cm)
Wheel Base - 85 in. (216 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,870 lb (848 kg) (512 lb / 232 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 900 lb (408 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box including protected cell phone area and USB A plug Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,100 lb (499 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 3
Suspensions Front Suspension - Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display with keypad & 10.25 in. Touch Display
Battery - 30A/hr (400 CCA)
Magneto - 1700 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light LED signature
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full glass tilt up windshield with wiper kit, Full color match doors with locks and electric opening tinted windows, Rear tinted glass window, Panoramic & side mirror, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Large heavy-duty front bumper, Mudguards, Floor mats, Side Mirrors, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display with keypad & 10.25 in. Touch Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
2027Defender XU MAX XT
-
Ranching & Farming
- Hunting
- HD10 - 80 hp, Triple cylinder & HD11 - 95 hp, Triple cylinder
- Quick-4Lok auto-locking front differential
- 4,500 lb (2,041 kg) winch with synthetic cable and autostop
- Full skid plate, full hard roof, heavy-duty front bumper, mudguards
- LED headlights and LED taillights with back up light
![2027 Can-Am Defender XU MAX XT]()
![dolomite-grey]()
![dark-wildland-camo]()
REFINEMENT YOU'LL FEEL ON EVERY JOB. The Gen 2 Defender XU MAX XT is our most versatile work-warrior yet. It seats up to six passengers and includes upgrades to make life on the land easier: a headache rack protects cargo components, a low wall bed extender expands cargo space and LinQ tool holders keep essentials handy.
![2027 Can-Am Defender XU MAX XT]()
![dolomite-grey]()
![dark-wildland-camo]()
REFINEMENT YOU'LL FEEL ON EVERY JOB. The Gen 2 Defender XU MAX XT is our most versatile work-warrior yet. It seats up to six passengers and includes upgrades to make life on the land easier: a headache rack protects cargo components, a low wall bed extender expands cargo space and LinQ tool holders keep essentials handy.
-
Engine
HD10: 80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled HD11: 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
4,500 lb (2,041 kg) winch with synthetic cable and autostop
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD10
HD11
Type - HD10: 80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
HD11: 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trail King 2 27 x 9/11 x 14 in.
XPS Trail King 2 29 x 9/11 x 14 in.
Rear Tires - XPS Trail King 2 27 x 9/11 x 14 in.
XPS Trail King 2 29 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 162.4 x 65 x 81.4 in. (412 x 165 x 207 cm)
Wheel Base - 117,5 in (298 cm)
Ground Clearance - 13 in. (33 cm)
14 in. (35.6 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 2,090 lb (948 kg) (219 lb / 99kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 900 lb (408 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage 3.7 gal (14 L) removable bin
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,325 lb (601 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 6
Suspensions Front Suspension - HD10: Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
HD11: Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
HD11: Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display
Battery - 30A/hr (400 CCA)
Magneto - 650 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full heavy-duty HMW plastic skid plate, Full hard roof, Heavy-duty front bumper, Mudguards, Door safety net, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- HD10 - 80 hp, Triple cylinder
- Full glass tilt up windshield with wiper kit
- Heating, venting and air conditioning (HVAC) climate system
- Full color match doors with locks and electric opening windows
- Quick-4Lok auto-locking front differential
![2027 Can-Am Defender XU MAX XT CAB]()
![dolomite-grey]()
ENGINEERED FOR HARD WORK. The most value-packed CAB in the industry, the Gen 2 Defender XU MAX XT CAB seats six comfortably and offers additional cargo space and utility-focused accessories so you can overcome the land's toughest, grittiest tasks.
-
Engine
80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
4,500 lb (2,041 kg) winch with synthetic cable and autostop
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD10
Type - 80 hp / 65 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trail King 2 27 x 9/11 x 14 in.
Rear Tires - XPS Trail King 2 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 162.4 x 65 x 81.4 in. (412 x 165 x 207 cm)
Wheel Base - 117,5 in (298 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 2,090 lb (948 kg) (615 lb / 279 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 600 lb (272 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage 3.7 gal (14 L) removable bin
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 900 lb (408 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 6
Suspensions Front Suspension - Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display
Battery - 30A/hr (400 CCA)
Magneto - 1700 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full glass tilt up windshield with wiper kit, Full color match doors with locks and electric opening windows, Rear clear glass window, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Heavy-duty front bumper, Mudguards, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- HD11 - 95 hp, Triple cylinder
- Heating, venting and air conditioning (HVAC) climate system
- Quick-4Lok auto-Locking front differential
- Rockford Fosgate Premium Audio System - Level 3 , 4 speakers & 1 subwoofer with AMP
- 5 in. color display with keypad & 10.25 in. Wireless Touch display with Front and rear cameras
![2027 Can-Am Defender XU MAX LONE STAR CAB]()
![stealth-black]()
RIDE WHERE WORK TAKES YOU. The Gen 2 Defender XU MAX Lone Star CAB HD11 seats up to six passengers and comes utility-focused so you can work the long haul in total comfort. It feels premium because it is.
-
Engine
95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
65 in wide with Arched Double A-Arm and sway bar
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD11
Type - 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9/10 x 15 in.
Rear Tires - XPS Trac Force 30 x 9/10 x 15 in.
Wheels - 15 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 162.4 x 65 x 82.6 in. (412 x 165 x 210 cm)
Wheel Base - 117,5 in (298 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 2,090 lb (948 kg) (775 lb / 351 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 600 lb (272 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box including protected cell phone area and USB A plug Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage 3.7 gal (14 L) removable bin
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 750 lb (340 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 6
Suspensions Front Suspension - Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display with keypad & 10.25 in. Touch Display
Battery - 30A/hr (400 CCA)
Magneto - 1700 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light LED signature
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full glass tilt up windshield with wiper kit, Full color match front doors with locks and electric opening tinted windows, Rear color match doors with roll down window, Rear tinted glass window, Panoramic & side mirror, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Steel rock sliders, Large heavy-duty front bumper, Mudguards, Floor mats, Side Mirrors, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display with keypad & 10.25 in. Touch Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- HD11 - 95 hp, Triple cylinder
- Heating, venting and air conditioning (HVAC) climate system
- Quick-4Lok auto-Locking front differential
- Rockford Fosgate Premium Audio System - Level 3 , 4 speakers & subwoofer with AMP
- 5 in. color display with keypad & 10.25 in. Wireless Touch display with rear camera
![2027 Can-Am Defender XU MAX Limited]()
![hybrid-white]()
FROM THE FACTORY TO THE FIELD. The Gen 2 Defender XU MAX Limited seats up to six passengers and comes equipped with work-ready upgrades like a headache rack to protect cab components, a low bed wall extender to expand cargo options and 3,500 lb. towing capacity.
-
Engine
95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
-
Seat
Adjustable driver seat, 40/20/40 Bolster
-
Features
30 in. XPS Trac Force with 15 in. aluminum wheels
-
Accessories
Metal headache rack, low bed wall extension, 2 x 2 LinQ tool holder, trailer hitch ball mount
Engine Engine - HD11
Type - 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System (QRS) CVT with high airflow and Electronic Drive Belt Protection
L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential
Driving Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - XPS Trac Force 30 x 9/10 x 15 in.
Rear Tires - XPS Trac Force 30 x 9/10 x 15 in.
Wheels - 15 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Rear - Dual 236 mm disc brakes with hydraulic single piston caliper (28 mm)
Brakes - Standard
Dimensions L x W x H - 162.4 x 65 x 81.4 in. (412 x 165 x 207 cm)
Wheel Base - 117,5 in (298 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 2,090 lb (948 kg) (751 lb / 340 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 600 lb (272 kg) / California only: 500 lb (227 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Weather resistant above gage glove box including protected cell phone area and USB A plug Weather resistant passenger glove box with USB-C, USB-A & DC outlet Cubby storage and lower dash storage
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 750 lb (340 kg)
Fuel Capacity - 11.9 gal (45 L)
Person Capacity - 6
Suspensions Front Suspension - Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 5 in. Color Display with keypad & 10.25 in. Touch Display
Battery - 30A/hr (400 CCA)
Magneto - 1700 watt
Instrumentation - USB outlets Lighter DC Outlet Cargo 12V Outlet
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
Lighting - LED headlights LED taillights with back up light LED signature
Winch - 4,500 lb (2,041 kg) winch with synthetic cable and autostop
Seat - Adjustable driver seat 40/20/40 Bolster
Steering Wheel - Premium steering wheel Adjustable steering wheel with full-tilt up feature
Protection - Full glass tilt up windshield with wiper kit, Full color match doors with locks and electric opening tinted windows, Rear tinted glass window, Panoramic & side mirror, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Large heavy-duty front bumper, Mudguards, Floor mats, Side Mirrors, Trailer hitch ball mount, Metal Headache rack, 2 x 2 LinQ Tool Holder, Low Bed Wall Extension
Hitch Type - Trailer hitch ball mount
Gauge Type of gauge - 5 in. Color Display with keypad & 10.25 in. Touch Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
Download spec sheet
Share
All the SxS accessories you need to level up
YOU MAY ALSO LIKE
-
2027 Defender XU PRO/6X6 HD10
The Defender 2027 XU PRO/6X6 HD10 is a workhorse through and through, equipped with work-ready upgrades like a headache rack to protect cab components, LinQ tool holders, and more. It’s overqualified to outperform.
-
2027 Defender HD7/HD9/HD10
With proven reliability and affordability, the Gen 1 Defender is the side-by-side that has your back with over a decade of real-world experience under its belt.
-
2027 Outlander 500/700
Built to work, made for adventure, and priced to win. The Outlander 500/700 delivers Can-Am strength for trails, hauling, and more. Go farther, do more, and power through every mile.
-
2027 Outlander PRO
Built to take on tough jobs and long days, this ATV pairs work-calibrated Rotax® power with a utility-tuned suspension. Durable, reliable, and ready for anything—on the trail or at the worksite.
