MAIN FEATURES
- Work-ready features
- All-season comfort
- A powerful range
Explore Defender XU HD7/HD9/HD10 packages & specifications
-
2027Defender XU
-
Ranching & Farming
- Hunting
- HD7 - 52 hp, Single cylinder
- Visco-Lok† auto-locking front differential
- Rear differential with Turf mode
- Integrated front steel bumper
- 27 in. tires on 14 in. steel wheels

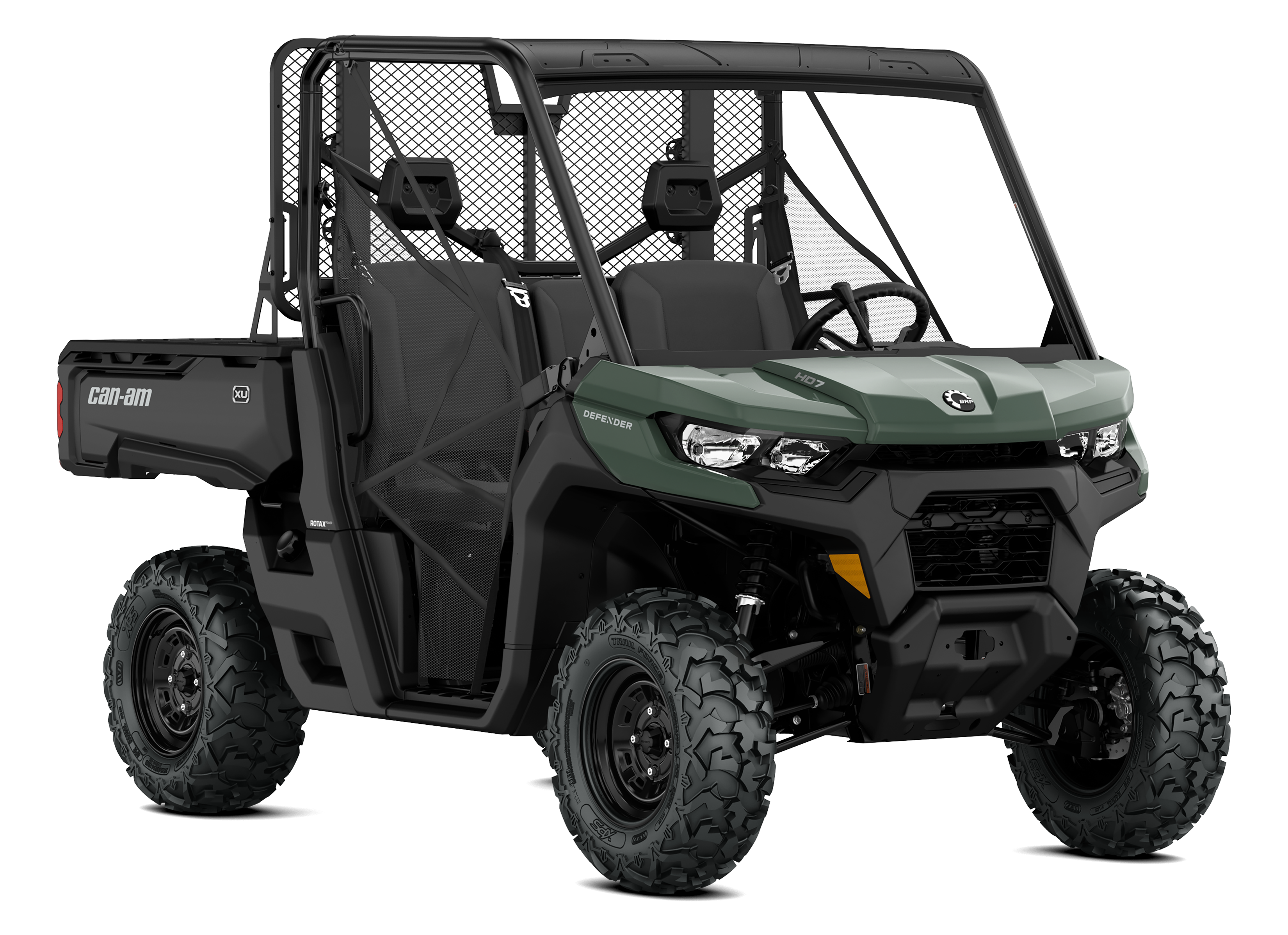

![2027 Can-Am Defender XU]()
![compass-green]()
With this ride, there's no room for compromise. You get exceptional work-ready features and capabilities for farming, ranching or any other job you need to get done on the land.
-
Engine
52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights
-
Accessories
Integrated front steel bumper, Full heavy-duty HMW plastic skid plate, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD7
Type - 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - N/A
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. Steel
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Single piston caliper (32 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,477 lb (670 kg) (111 lb / 50 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 18A/hr (270 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front steel bumper Full heavy-duty HMW plastic skid plate Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
2027Defender XU DPS
-
Ranching & Farming
- Hunting
- HD7 - 52 hp, Single cylinder & HD9 - 65 hp, V-twin
- All Defender top features
- Dynamic Power Steering (DPS)
- 14 in. cast-aluminum wheels

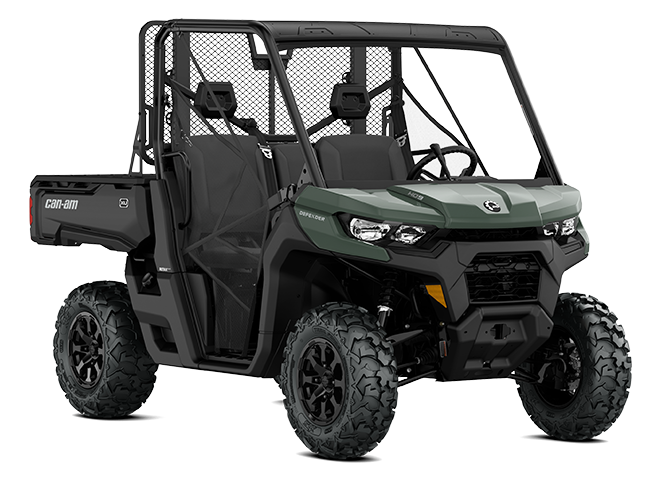

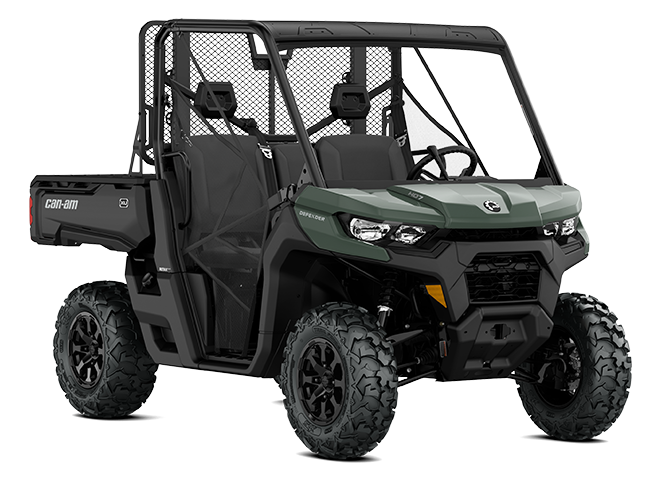

![2027 Can-Am Defender XU DPS]()
![compass-green]()
Own every workday. The Defender XU with Dynamic Power Steering (DPS) is a utility workhorse that adapts to the way you want to ride, without stretching your wallet.
-
Engine
HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights
-
Accessories
Integrated front steel bumper, Full heavy-duty HMW plastic skid plate, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD7
HD9
Type - HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7 : pDrive primary CVT with engine braking and Electronic Drive Belt Protection
L / H / N / R / P
HD9 : PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - HD7: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Single piston caliper (32 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - HD7: 1,501 lb (681 kg)
(111 lb / 50 kg of accessories)
HD9: 1,545 lb (701 kg) (111 lb / 50 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 18A/hr (270 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front steel bumper Full heavy-duty HMW plastic skid plate Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- All Defender DPS top features
- Heating and ventilation
- Full glass tilt up windshield with wiper/washer kit
- Full hard roof with liner and interior dome light
- Full color match doors with electric opening windows and door locks

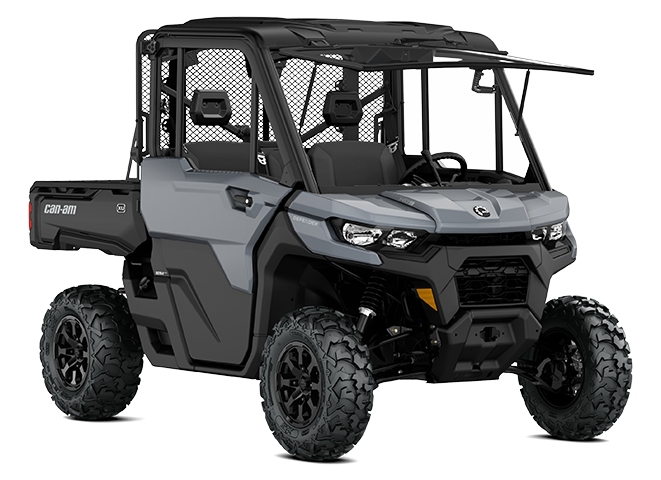

![2027 Can-Am Defender XU DPS CAB HD9]()
![compass-green]()
![dolomite-grey]()
Gear up for comfort. With Dynamic Power Steering (DPS), a fully-sealed scab and more horsepower, this work vehicle keeps you covered and comfortable all year long.
![2027 Can-Am Defender XU DPS CAB HD9]()
![compass-green]()
![dolomite-grey]()
Gear up for comfort. With Dynamic Power Steering (DPS), a fully-sealed scab and more horsepower, this work vehicle keeps you covered and comfortable all year long.
-
Engine
65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights, Heating and ventilation
-
Accessories
Integrated front bumper, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and interior dome light, Full color match doors with electric opening windows and door locks, Full glass tilt up windshield with wiper/washer kit, Clear rear glass window, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD9
Type - 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Twin piston caliper (28 mm) / 220 mm discs
Single piston caliper (32 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (30.5 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,545 lb (701 kg) (502 lb / 288 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched Double A-Arm with swaybar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 30A/hr (400 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front bumper Full heavy-duty HMW plastic skid plate Full hard roof with liner and interior dome light Full color match doors with electric opening windows and door locks Full glass tilt up windshield with wiper/washer kit Clear rear glass window Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- All Defender DPS top features
- Heating, venting and air conditioning (HVAC) climate system
- Full glass tilt up windshield with wiper/washer kit
- Full hard roof with liner and interior dome light
- Full color match doors with electric opening windows and door locks

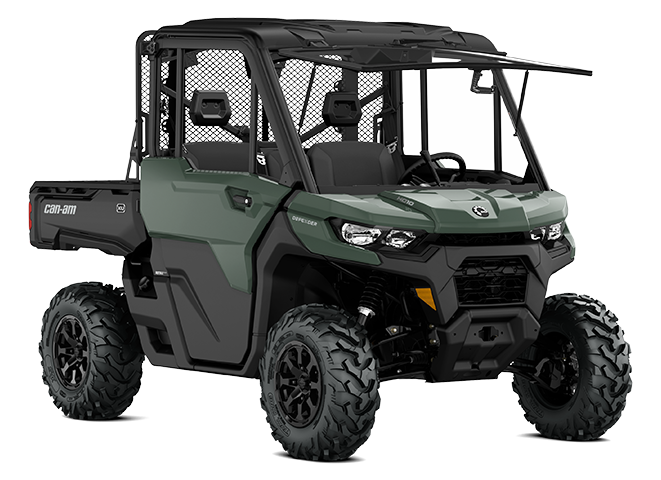

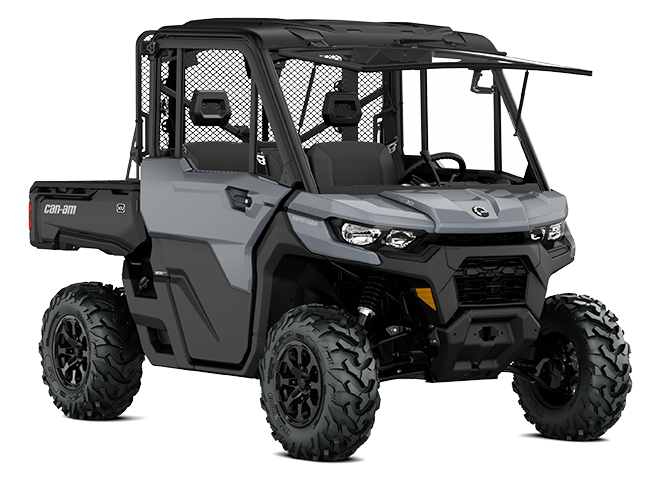

![2027 Can-Am Defender XU DPS CAB HD10]()
![compass-green]()
![dolomite-grey]()
Own every workday. The Defender XU with Dynamic Power Steering (DPS) is a utility workhorse that adapts to the way you want to ride, with more power and without stretching your wallet.
![2027 Can-Am Defender XU DPS CAB HD10]()
![compass-green]()
![dolomite-grey]()
Own every workday. The Defender XU with Dynamic Power Steering (DPS) is a utility workhorse that adapts to the way you want to ride, with more power and without stretching your wallet.
-
Engine
82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights, Heating, venting and air conditioning (HVAC) climate system
-
Accessories
Integrated front bumper, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and interior dome light, Full color match doors with electric opening windows and door locks, Full glass tilt up windshield with wiper/washer kit, Clear rear glass window, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD auto-Locking QE front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9/11 x 14 in.
Rear Tires - XPS Trail King 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Twin piston caliper (28 mm) / 220 mm discs
Single piston caliper (32 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (30.5 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,545 lb (701 kg) (502 lb / 288 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched Double A-Arm with swaybar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 30A/hr (400 CCA)
Magneto - 850 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front bumper Full heavy-duty HMW plastic skid plate Full hard roof with liner and interior dome light Full color match doors with electric opening windows and door locks Full glass tilt up windshield with wiper/washer kit Clear rear glass window Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- HD7 - 52 hp, Single cylinder & HD9 - 65 hp, V-twin
- All Defender DPS features
- XT Front bumper, full hard roof and HMWPE full skid plate
- 4,500 lb (2,041 kg) winch with synthetic cable
- VERSA-PRO bolster bench seat with reinforced XT seat skin and adjustable driver seat

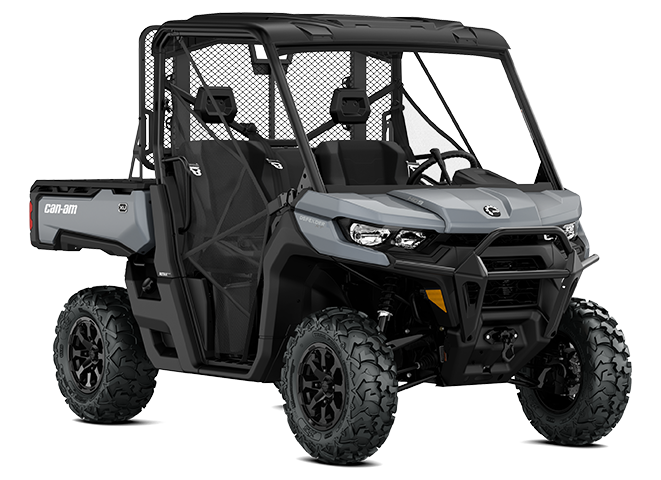

![2027 Can-Am Defender XU XT HD7/HD9]()
![dolomite-grey]()
Equipped for long days. Full exterior protection and factory-installed work accessories make the Defender XU XT ready to take on anything. Just say when.
-
Engine
HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bolster bench seats with passenger seats flipping up, Adjustable driver seat, underside hooks, reinforced XT seat skin
-
Features
Front lighting output 140-W, LED taillights
-
Accessories
XT Front bumper, Full heavy-duty HMW plastic skid plate, Full hard roof, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD7
HD9
Type - HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection
L / H / N / R / P
HD9: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - HD7: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Single piston caliper (32 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 125.7 x 62 x 78 in. (319.4 x 157.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - HD7: 1,603 lb (729 kg)
(111 lb / 50 kg of accessories)
HD9: 1,624 lb (736 kg) (111 lb / 50 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,500 lb (680 kg)
1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 30A/hr (400 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A) USB Port (10-A) x 2
Lighting - Front lighting output 140-W LED taillights
Winch - 4,500 lb (2,041 kg) winch with synthetic cable
Seat - VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced XT seat skin
Steering Wheel - Tilt steering adjustment
Protection - XT Front bumper Full heavy-duty HMW plastic skid plate Full hard roof Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
2027Defender XU MAX
-
Ranching & Farming
- Hunting
- HD7 - 52 hp, Single cylinder
- Visco-Lok† auto-locking front differential
- Rear differential with Turf mode
- Integrated front steel bumper
- 27 in. tires on 14 in. steel wheels
![2027 Can-Am Defender XU MAX]()
![compass-green]()
Outwork the rest. Conquer the land with a Defender XU MAX that doesn’t just work hard—but works smart. With 6 seats, it’s built to get your crew in, out and on to the next job faster than ever.
-
Engine
52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights
-
Accessories
Integrated front steel bumper, Full heavy-duty HMW plastic skid plate, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD7
Type - 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid coole
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - N/A
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. Steel
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Twin piston caliper (28 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,747 lb (792 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 18A/hr (270 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front steel bumper Full heavy-duty HMW plastic skid plate Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
2027Defender XU MAX DPS
-
Ranching & Farming
- Hunting
- HD7 - 52 hp, Single cylinder & HD9 - 65 hp, V-twin
- All Defender top features
- Dynamic Power Steering (DPS)
- 14 in. cast-aluminum wheels

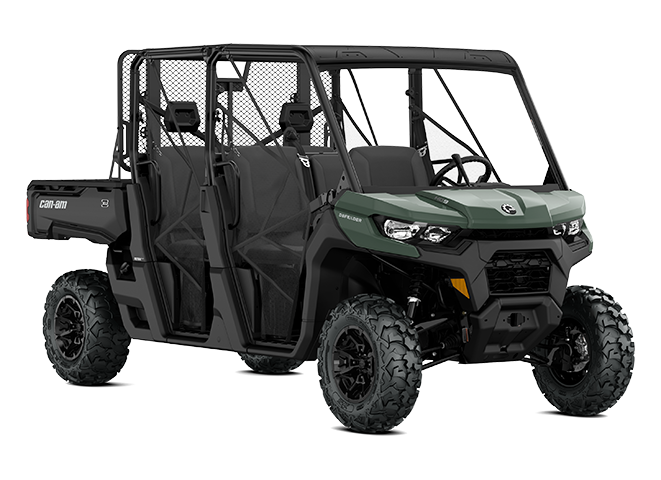

![2027 Can-Am Defender XU MAX DPS]()
![compass-green]()
Conquer the day, no excuses. The Defender XU with Dynamic Power Steering (DPS) and room for 6 is your ultimate sidekick on wheels. Take charge, haul the crew and show the workday who's boss.
-
Engine
HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights
-
Accessories
Integrated front steel bumper, Full heavy-duty HMW plastic skid plate, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD7
HD9
Type - HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection
L / H / N / R / P
HD9: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - HD7: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Twin piston caliper (28 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - HD7: 1,781 lb (808 kg)
(111 lb / 50 kg of accessories)
HD9: 1,876 lb (851 kg) (111 lb / 50 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) suspension travel
Double A-arm / 10 in. (25.4 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 18A/hr (270 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front steel bumper Full heavy-duty HMW plastic skid plate Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- HD10 - 82 hp, V-twin
- Heating, venting and air conditioning (HVAC) climate system
- Full glass tilt up windshield with wiper/washer kit
- Full hard roof with liner and interior dome light
- Full color match doors with electric opening windows and door locks

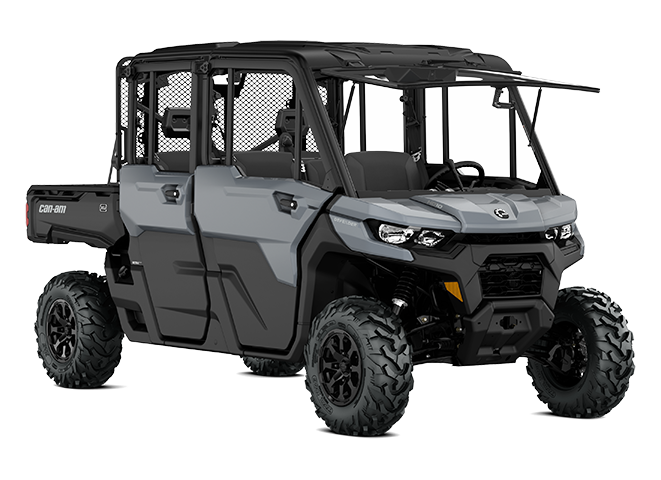

![2027 Can-Am Defender XU MAX DPS CAB HD10]()
![compass-green]()
![dolomite-grey]()
Bring on the elements. Dynamic Power Steering (DPS) and a sealed cab on a Defender XU MAX mean you’ve got year-round comfort for everyone. This isn't your ordinary work vehicle. It's an all-season workhorse.

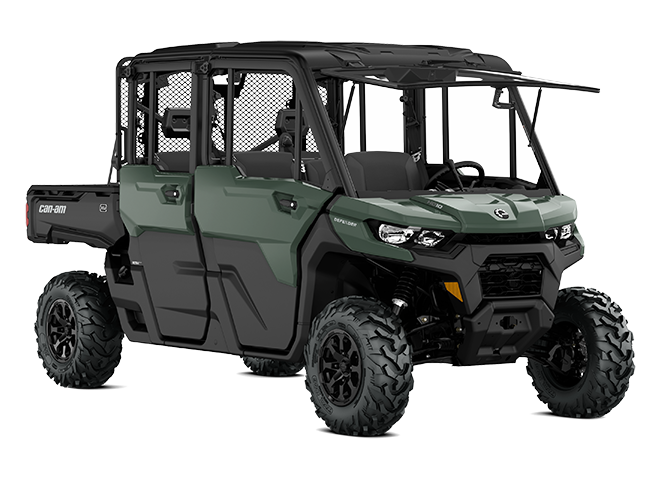

![2027 Can-Am Defender XU MAX DPS CAB HD10]()
![compass-green]()
![dolomite-grey]()
Bring on the elements. Dynamic Power Steering (DPS) and a sealed cab on a Defender XU MAX mean you’ve got year-round comfort for everyone. This isn't your ordinary work vehicle. It's an all-season workhorse.
-
Engine
82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bench seat with passenger seats flipping up, Underside hooks
-
Features
Front lighting output 140-W, LED taillights, Heating, venting and air conditioning (HVAC) climate system
-
Accessories
Integrated front bumper, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and interior dome light, Full color match front doors with locks and electric opening windows, Rear color match doors with roll down windows, Full clear glass tilt up windshield with wiper/washer kit, Clear rear glass window, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD auto-Locking QE front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail King 27 x 9/11 x 14 in.
Rear Tires - XPS Trail King 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Twin piston caliper (28 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 160 x 65 x 81 in. (405.7 x 165.1 x 228.7 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (30.5 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,908 lb (865,5 kg) (661 lb / 299 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched Double A-Arm with swaybar / 12 in. (30.5 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 12 in. (30.5 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 30A/hr (400 CCA)
Magneto - 850 watt
Instrumentation - DC outlet (10-A)
Lighting - Front lighting output 140-W LED taillights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up Underside hooks
Steering Wheel - Tilt steering adjustment
Protection - Integrated front bumper Full heavy-duty HMW plastic skid plate Full hard roof with liner and interior dome light Full color match front doors with locks and electric opening windows Rear color match doors with roll down windows Full clear glass tilt up windshield with wiper/washer kit Clear rear glass window Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
-
-
Ranching & Farming
- Hunting
- HD9 - 65 hp, V-twin
- All Defender DPS top features
- VERSA-PRO bolster bench seat with reinforced XT seat skin and adjustable driver seat
- 4,500 lb (2,041 kg) winch with synthetic cable
- XT Front bumper, full hard roof and HMWPE full skid plate

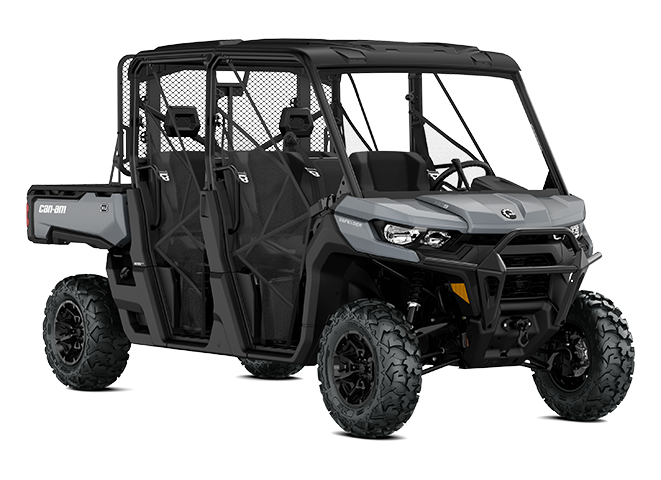

![2027 Can-Am Defender XU MAX XT HD9]()
![dolomite-grey]()
On-duty, all day. Rock-solid protection, seating for six and built-in work-ready tools make the Defender XU MAX XT ready to show up anytime and get it done.
-
Engine
65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
-
Seat
VERSA-PRO bolster bench seats with passenger seats flipping up, Adjustable driver seat, underside hooks, reinforced XT seat skin
-
Features
Front lighting output 140-W, LED taillights
-
Accessories
XT Front bumper, Full heavy-duty HMW plastic skid plate, 2-piece full hard roof, Trailer hitch mount, Metal headache rack, 2 x 2 LinQ Tool Holder
Engine Engine - HD9
Type - 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9/11 x 14 in.
Rear Tires - XPS Trail Force 27 x 9/11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Twin piston caliper (32 mm) / 220 mm discs
Rear - Twin piston caliper (28 mm) / 220 mm discs
Brakes - Standard
Dimensions L x W x H - 158.3 x 63.5 x 76 in. (402 x 161.2 x 193cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage ROPS approved
Estimated Dry Weight* - 1,926 lb (873 kg) (111 lb / 50 kg of accessories)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) suspension travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) suspension travel
Rear Shocks - Twin tube gas charged shocks
Suspension - Standard
Feature Gauge - 4.5 in. Display
Battery - 30A/hr (400 CCA)
Magneto - 650 watt
Instrumentation - DC outlet (10-A) USB Port (10-A) x 2
Lighting - Front lighting output 140-W LED taillights
Winch - 4,500 lb (2,041 kg) winch with synthetic cable
Seat - VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced XT seat skin
Steering Wheel - Tilt steering adjustment
Protection - XT Front bumper Full heavy-duty HMW plastic skid plate 2-piece full hard roof Trailer hitch mount Metal headache rack 2 x 2 LinQ Tool Holder
Hitch Type - 2 in. hitch receiver with trailer hitch mount
Gauge Type of gauge - 4.5 in. Display
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 60 months
-
Download spec sheet
All the SxS accessories you need to level up
YOU MAY ALSO LIKE
-
Gen 2
2027 Defender HD10/HD11
Your number one companion for ranching and farming jobs, the Defender HD10/HD11 is integrated with a work-dedicated engine of up to 95 hp and refined transmission for smoother shifts and better handling.
-
2027 Defender HD7/HD9/HD10
With proven reliability and affordability, the Gen 1 Defender is the side-by-side that has your back with over a decade of real-world experience under its belt.
-
Gen 2
2027 Defender XU HD10/HD11
With expanded capabilities, including an 80 to 95 hp engine with 65 lb.-ft of torque, the all-new Can-Am Defender XU HD10/HD11 is a true workhorse redefining the SxS utility category.
-
2027 Defender XU PRO/6X6 HD10
The Defender 2027 XU PRO/6X6 HD10 is a workhorse through and through, equipped with work-ready upgrades like a headache rack to protect cab components, LinQ tool holders, and more. It’s overqualified to outperform.
