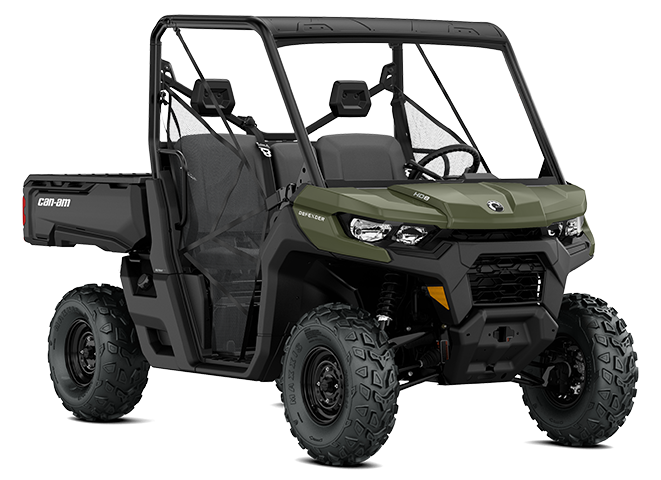

2020Defender
-
Work
- Trail
- HD5: 38 hp / HD8: 50 hp - 50 lb-ft
- Up to 11 in. (28 cm) ground clearance
- HD8: 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![green]()
DO IT ALL (AND THEN SOME). The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
-
Engine
HD5: Rotax 427 cc single cylinder HD8: Rotax® 799.9 cc V-twin
-
Transmission
HD5: CVT HD8 PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
12-in. (30.5 cm) steel wheels
-
Suspension
Front: Double A-arm / Rear: TTA with external sway bar
-
Protection
Integrated front steel bumper HMWPE central skid plate
Engine Engine - HD8
HD5
Engine displacement - 799
427
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD5: 38 hp, Rotax 427 cc single cylinder, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD8: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
Extra-L / H / N / R / P
HD5: CVT, P / R / N / H / L, standard engine braking
Drive Train - HD10: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
HD5: Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO Off / Work modes
Power Steering - N/A
Tires/Wheels Front Tires - HD8: Maxxis Bighorn 2.0† 27 x 9 x 12 in. (68.6 x 22.9 x 30.5 cm)
HD5: Maxxis M923J† 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - HD8: Maxxis Bighorn 2.0† 27 x 11 x 12 in. (68.6 x 27.9 x 30.5 cm)
HD5: Maxxis M924J† 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. (30.5 cm) steel
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - HD8: Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
HD5: Single 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD8: 11 in. (28 cm)
HD5: 10.5 in. (26.7 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD8: 1,459.5 lb (662 kg)
HD5: 1,305.1 lb (592 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - HD8: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
HD5: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L) Under dash (enclosed pocket) : 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - HD8: 2,500 lb (1134 kg)
HD5: 1,500 lb (680 kg)
Payload Capacity - HD8: 1,500 lb (680 kg)
HD5: 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - HD8: 650-W
HD5: 500-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

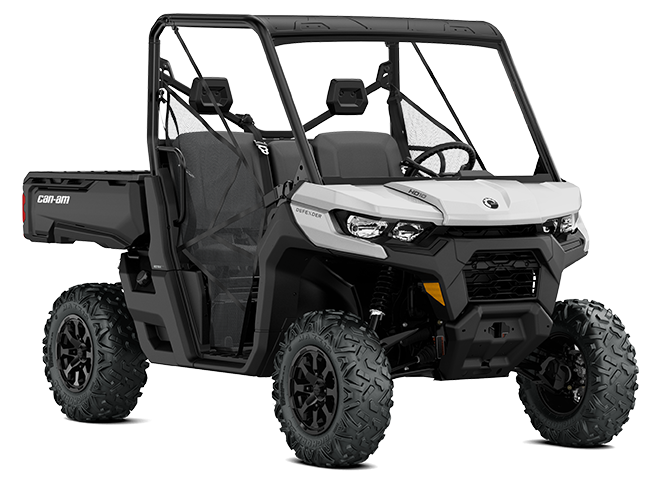

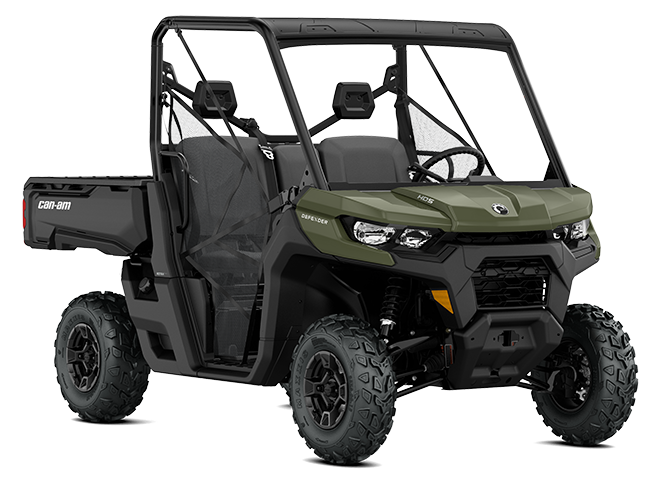

2020Defender DPS
-
Work
- Hunting
- Trail
- HD5: 38 hp / HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- HD8-HD10: 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![mossy-oak-break-up-country-camo]()
![green]()
![hyper-silver]()
![boreal-green]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
-
Engine
HD5: Rotax 427 cc single cylinder HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc, V-twin, liquid cooled
-
Transmission
HD5: CVT HD8-10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
HD5: 12-in. (30.5 cm) cast-aluminum wheels HD8-10: 14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
HD5-8: Front: Double A-arm / Rear: Arched TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Protection
Integrated front steel bumper, HMWPE central skid plate
Engine Engine - HD5
HD8
HD10
Engine displacement - 427
799
976
Type - HD5: 38 hp, Rotax 427 cc single cylinder, liquid cooled
HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD5: CVT, P / R / N / H / L, standard engine braking
HD8-HD10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD5: Maxxis M923J† 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
HD8-HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - HD5: Maxxis M924J† 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
HD8-HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - HD5: 12-in. (30.5 cm) cast-aluminum
HD8-HD10: 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - HD5: Single 220 mm ventilated disc brakes with hydraulic twin-piston calipers
HD8-HD10: Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD5-HD8: 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
HD10: 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
84 in. (211.5 cm)
Ground Clearance - HD5: 10.5 in. (26.7 cm)
HD8: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD5: 1,322.8 lb (600 kg)
HD8: 1,521.2 lb (690 kg)
HD10: 1,536.6 lb (697 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - HD5: 600 lb (272.2 kg)
HD8-HD10: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - HD5: 1,500 lb (680 kg)
HD8-HD10: 2,500 lb (1134 kg)
Payload Capacity - HD5: 1,200 lb (544 kg)
HD8-HD10: 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD5-HD8: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD5-HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - HD5: 500-W
HD8-HD10: 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - HD5: Four 35-W reflectors ensuring a wide visiblity and LED tail lights
HD8-10: 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

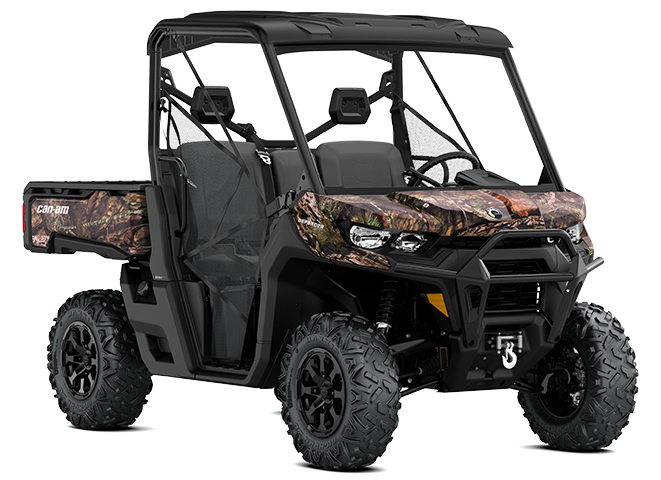

2020Defender XT
-
Work
- Hunting
- Trail
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![mossy-oak-break-up-country-camo]()
![hyper-silver]()
![boreal-green]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Protection
XT front bumper, HMWPE full skid plate, Full hard roof
Engine Engine - HD10
HD8
Engine displacement - 976
799
Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD10: 125.7 x 64 x 80 in. (319,4 x 162.5 x 203.2 cm)
HD8: 125.7 x 62 x 78 in. (319,4 x 157.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD10: 13 in. (33 cm)
HD8: 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD10: 1,600.6 lb (726 kg)
HD8: 1,585.1 lb (719 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 1,500 lb (680 kg)
Person Capacity - 3
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
HD8: Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

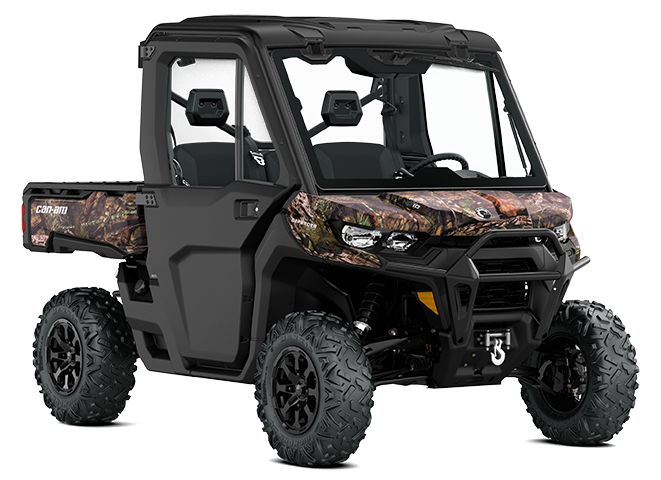

2020Defender XT CAB
-
Work
- Hunting
- Trail
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- 11 in. (30.5 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![mossy-oak-break-up-country-camo]()
![hyper-silver]()
COMPLETELY COVERED. All-weather cab, factory-installed winch, and everything else needed for a true 4-season, futureproof workhorse.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
XT front bumpe,r HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Engine Engine - HD8
HD10
Engine displacement - 799
976
Type - HD8: hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 122.2 x 65 x 79 in. (310.5 x 165.1 x 200.6 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD8: 12 in. (30.5 cm)
HD10: 12 in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD8: 1863 lb (845 kg)
HD10: 1874 lb (850 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar and sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / Work / Normal modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender XT-P
-
Performance
- Work
- Trail
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat with bolster seats
![carbon-black---platinum-satin]()
The next step in Defender performance is here—our top-shelf Rotax HD10 V-Twin engine powering numerous interior and exterior upgrades factory-engineered to extend its capabilities—and fun—any day of the week.
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Protection
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Full hard roof
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 125.8 x 64 x 80 in. (319.5 x 162.5 x 203.2 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,613.8 lb (732 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,100 lb (499 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seat with bolster seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

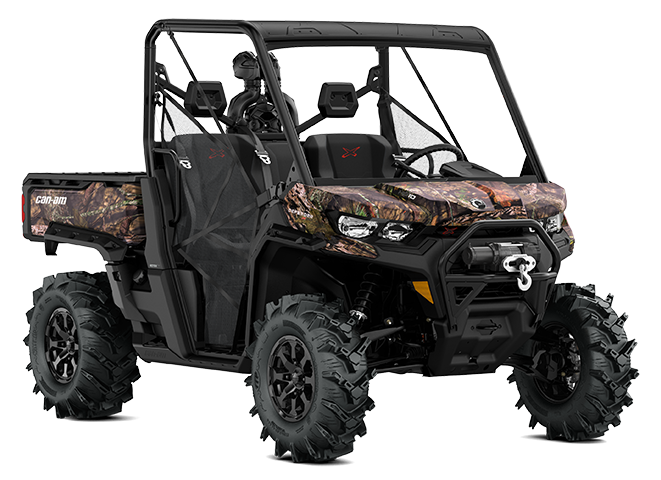

2020Defender X mr
-
Mud
- Work
- Trail
- HD10: 82 hp - 69 lb-ft
- 15 in. (38.1 cm) ground clearance
- 30-in. ITP Cryptid† tires
- VERSA-PRO bench seat with bolster seats
- Exclusive Smart-Lok technology
![mossy-oak-break-up-country-camo]()
![iron-gray---manta-green]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. of ground clearance.
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders , Mudguards
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-alumium
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD10: 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,697.6 lb (770 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar and sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bench seat with bolster seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Hunting
- Work
- Trail
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 28-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
- Exclusive Smart-Lok technology
![mossy-oak-break-up-country-camo]()
FOLLOW THE HUNT ANYWHERE. The Mossy Oak Edition is fully-equipped with rugged bumpers, winch, tires, wheels, and exclusive Smart Lok technology.
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Full hard roof
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 129.4 x 65 x 80 in. (328.6 x 165.1 x 203.1cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,646.9 lb (747 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar and sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two lighted USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced vinyl with two-tones stitching and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

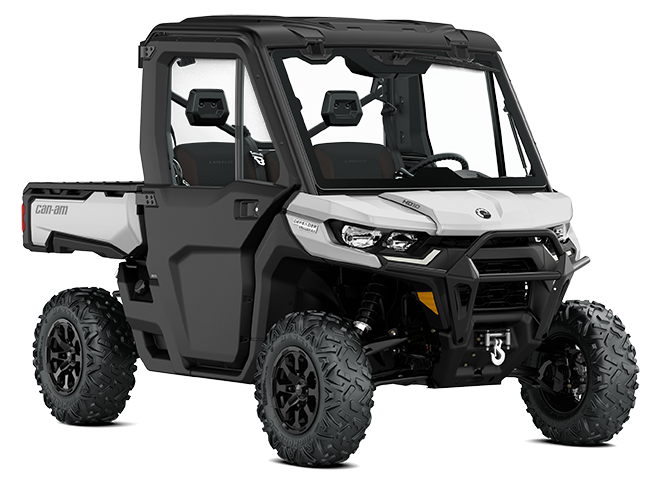

2020Defender Limited
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 12 in. (30.5 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat with Limited trims
- HVAC heating, ventilation, and air conditioning
![mossy-oak-break-up-country-camo]()
![hyper-silver]()
STANDARD AIR CONDITIONING. Work & play in complete comfort, loaded with the features and capability you'd expect from our most refined all-weather workhorse.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Engine Engine - HD10
Engine displacement - 976
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 126 x 65 x 79 in (319 x 165.1 x 201 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 12-in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1928 lb (874.5 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 141 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
142 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper HMWPE full skid plate Full hard roof with liner and interior dome light Full black doors with electric opening windows 3-position full glass tilt up windshield with wiper/washer kit Rear glass
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender MAX
-
Work
- Trail
- HD8: 50 hp - 50 lb-ft
- 11 in. (28 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![green]()
Defender MAX is well-equipped from standard to tackle your jobs, with room for 6, 4WD, 1-year warranty, and a capable Rotax® powertrain.
-
Engine
Rotax® 799.9 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Double A-arm / Rear: TTA with external sway bar
-
Protection
Integrated front steel bumper, HMWPE central skid plate
Engine Engine - HD8
Engine displacement - 799
Type - 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - N/A
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD8: 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,715.2 lb (778 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L) Under dash (enclosed pocket) : 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

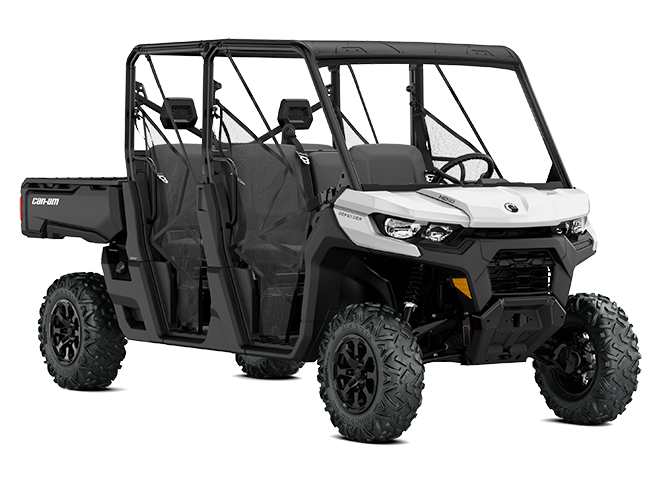

2020Defender MAX DPS
-
Work
- Hunting
- Trail
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
![mossy-oak-break-up-country-camo]()
![green]()
![hyper-silver]()
![boreal-green]()
Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco Lok† QE 4WD—and get it done.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Protection
Integrated front steel bumper, HMWPE central skid plate
Engine Engine - HD8
HD10
Engine displacement - 799
976
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - HD8: 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
HD10: 153.4 x 64 x 77.5 in. (389.6 x 162.5 x x 196.9 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD8: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD8: 1,750.4 lb (794 kg)
HD10: 1,771.2 lb (803.4 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD8: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

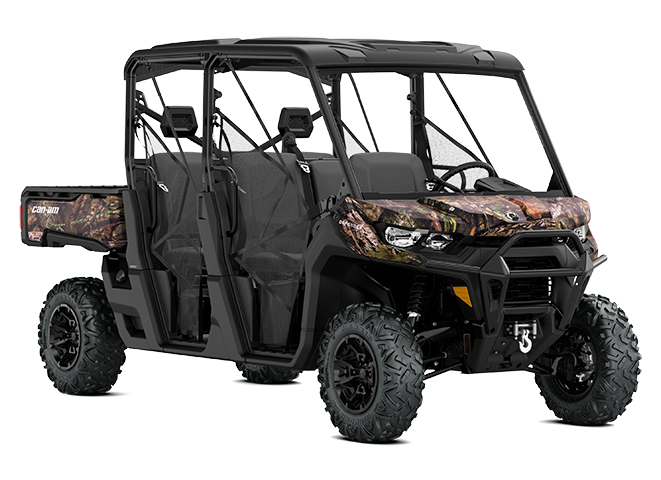

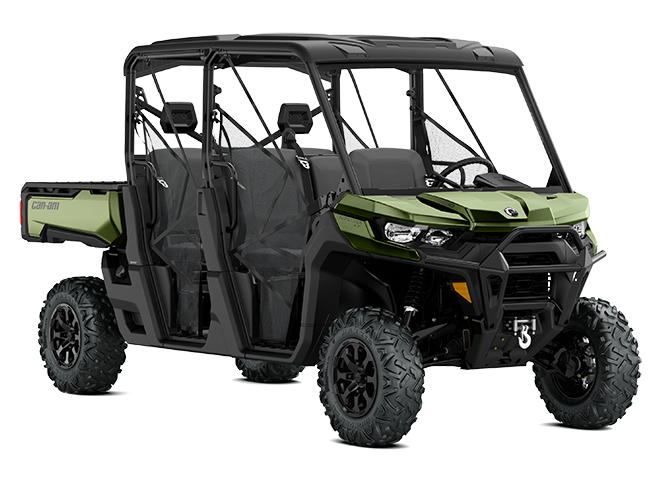

2020Defender MAX XT
-
Work
- Hunting
- Trail
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat with XT reinforcement
![mossy-oak-break-up-country-camo]()
![hyper-silver]()
![boreal-green]()
Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Protection
XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Engine Engine - HD10
HD8
Engine displacement - 976
799
Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
HD8: 158.3 x 63.5 x 76 in. (402 x 161.2 x 193cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD10 : 13 in. (33 cm)
HD8: 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD10: 1,902.6 lb (863 kg)
HD8: 1,882.8 lb (854 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
HD8: Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

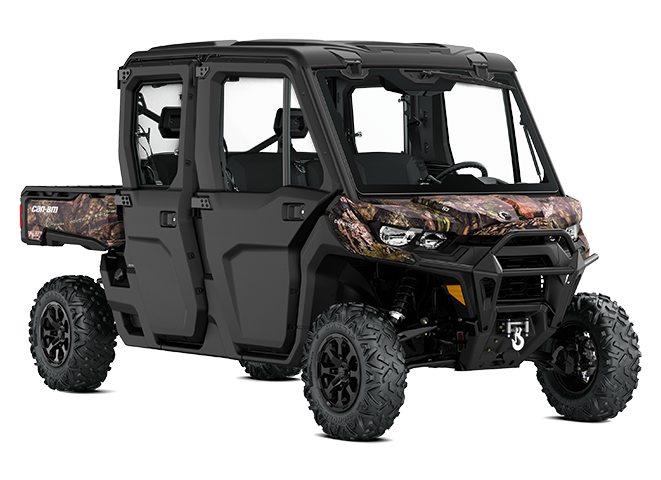

2020Defender MAX XT CAB
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 12 in. (30.5 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat with XT reinforcement
![mossy-oak-break-up-country-camo]()
![hyper-silver]()
Equipped with choice factory-installed accessories like 27 in (68.6 cm) Maxxis Bighorn 2.0 tires, 14 in. (35.6 cm) cast-aluminum wheels, and Dynamic Power Steering (DPS), the Defender MAX XT CAB is ready when you are—with room for 6.
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
XT front bumper, HMWPE full skid plate, 2-piece full hard roof, Full black doors with electric opening windows in front, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 158.3 x 65 x 79 in. (402 x 165.1 x 200.6 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD10: 12 in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 2,302 lb (1044 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 14 gal (53 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 1.6 gal (6.1 L) Interior doors: 1.5 gal (5.8 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,300 lb (590 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / Work / Normal modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A) | Integrated heater kit
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof, Full black doors with electric opening windows in front, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 28-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat with Lonestar trims
![stone-gray]()
BUILT FOR HIGHER GROUND. The ultimate Defender MAX, upgraded from top to bottom: 6-person seating, industry-leading Rotax HD10 engine, unique interior trim—and tons of factory extras.
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 158.9 x 67 x 79.9 in. (403.6 x 170.2 x 203.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,929 lb (875 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring LONE STAR package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender MAX X mr
-
Mud
- Performance
- Trail
- HD10: 82 hp - 69 lb-ft
- 15 in. (38.1 cm) ground clearance
- 30-in. ITP Cryptid tires
- VERSA-PRO bench seat with bolster seats
- Exclusive Smart-Lok technology
![mossy-oak-break-up-country-camo]()
Defender MAX X mr is the ultimate mud workhorse: 6 seats, Rotax® HD10 V-Twin engine, Smart-Lok differential, 15-in. ground clearance, a winch, and more
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA
-
Protection
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 161.9 x 64 x 82 in. (411.2 x 162.6 x 208.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD10: 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,999 lb (907.7 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,650 lb (750 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A) and two USB port in the dash storage
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - Dual VERSA-PRO bench seats with bolster seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender MAX Limited
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 12 in. (30.5 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- Dual VERSA-PRO bench seat with Limited trims
- HVAC heating, ventilation, and air conditioning
![mossy-oak-break-up-country-camo]()
![hyper-silver]()
COMFORT FOR THE WHOLE CREW. Standard 3-mode air conditioning turns the Defender MAX into the perfect way to ensure up to 6 people can work, travel and adapt as the conditions demand.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Engine Engine - HD10
Engine displacement - 976
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158 x 67 x 79 in (402 x 170 x 201 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12-in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 2337 lb (1060 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1300 lb (590 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 144 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
145 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper HMWPE full skid plate Full hard roof with liner and interior dome light Full black doors with electric opening windows 3-position full glass tilt up windshield with wiper/washer kit Rear glass
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender 6x6 DPS
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 27-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
- 3, 000 lb (1360.8 kg) towing capacity
![mossy-oak-break-up-country-camo]()
![white]()
CAN-AM OFF-ROAD REVOLUTION. Six wheels, unlimited potential. Get the most traction, load-carrying, power, and capability ever engineered into an off-road workhorse.
-
Engine
Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
Integrated front steel bumper, HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 153.4 x 64 x 78 (389.6 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,945 lb (882 kg)
Cargo Box Dimensions - 73 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender PRO DPS
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 28-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat
- Lower Storage 83.6 gal (316.5 L)
![mossy-oak-break-up-country-camo]()
![white]()
PERFECT PLATFORM. The world’s best Can-Am with a 4.5 x 6 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
Integrated front steel bumper, HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 153 x 64 x 78 in (390 x 163 x 198 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 33 cm (13 in.)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1833 lb (831.5 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L) 83.6 gal (316.5 L) Cargo box under storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 141 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
142 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Defender PRO XT
-
Work
- Hunting
- Trail
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 28-in. Maxxis† Bighorn 2.0 tires
- VERSA-PRO bench seat with XT reinforcement
- Lower Storage 83.6 gal (316.5 L)
![triple-black]()
EXTRA PAYLOAD THAT NEVER QUITS. Our best workhorse, and then some: 4, 500-lb winch, rugged bumper & VERSA-PRO seats ensure every job will be done with strength to spare.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Wheels
14-in. (35.6 cm) cast-aluminum
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Protection
XT front bumper, HMWPE full skid plate, Full hard roof
Engine Engine - HD10
Engine displacement - 976
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158 x 64 x 80 in (402 x 163 x 203 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 33 cm (13 in.)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 880.5 kg (1941 lb)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Cargo box under storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 144 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper HMWPE full skid plate Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
Share
