2020Maverick X3 Turbo
-
Performance
- 120 hp
- 20-in. (50.8 cm) of suspension travel
- 28-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 64-in. width
![hyper-silver---can-am-red]()
![white]()
![can-am-red]()
THE BEST IS BETTER THAN EVER. High-performance at an MSRP that keeps our competitors up at night: the 2 or 4-seat 120 horsepower Maverick X3 Turbo thrills with next-generation go-anywhere.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO
Engine displacement - 900
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,481 lb (671.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20-in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Mud
- Performance
- 120 hp
- 20-in. (50.8 cm) suspension travel
- 30-in. ITP Cryptid† tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 64-in. width
![iron-gray---manta-green]()
Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges. Balanced with 64-in width, 18-in of suspension travel, and armored 30-in. ITP Cryptid tires for the ultimate in mud performance.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD
-
Wheels
14-in. (35.6 cm) cast-aluminum with machined finish wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Engine Engine - TURBO
Engine displacement - 900
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum with machined finish
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 66.7 x 66.1 in. (337.8 x 169.4 x 167.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,664 lb (754.8 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 18-in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar 20 in. (50.8 cm) travel.
Rear Shocks - FOX 2.5 PODIUM RC2 Piggyback with dual speed compression, rebound adjustments and bottom-out control.
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Rock Crawling
- Performance
- 120 hp
- 18-in. (45.7 cm) suspension travel
- 30-in. Maxxis† Liberty 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 64-in. width
![carbon-black---orange]()
FULL OF ALTITUDE. Conquer the last mile with Rock-specific Smart-Lok differential tuning, upgraded FOX 2.5 Podium RC2 shocks, winch & full protection for whoops and rocky ridges alike. It's as furious and smart as it looks.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links
-
Protection
Front bumper, Quarter-doors, UHMWPE rock sliders, HMWPE skidplates, Full heavy duty with differential / Under bumper / Front and rear suspension arm, Rear tow hook
Engine Engine - TURBO
Engine displacement - 900
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 30 x 10 x 14 in. (76.2 x 25.4 x 35.6 cm)
Rear Tires - Maxxis Liberty† 30 x 10 x 14 in. (76.2 x 25.4 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 65.6 x 66 in. (337.8 x 166.6 x 167.6 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,642 lb (744.8 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 18-in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3†
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18-in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Quarter-doors, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with differential / Under bumper / Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 172 hp
- 20-in. (50.8 cm) of suspension travel
- 28-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 64-in. width
![can-am-red---white]()
RACE ONLY YOUR PULSE. New 64-in. DS Turbo R is your blend of more standard features & improved suspension across all terrains.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with new intercooler and less restrictive airbox
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper Quarter-doors HMWPE full skid plate Rear tow hook
Engine Engine - TURBO R
Engine displacement - 900
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,481 lb (671.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20-in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 172 hp
- 22-in. (55.9 cm) of suspension travel
- 29-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 72-in. width
![can-am-red---white]()
72 inch wide & WIDE OPEN. Winning the Dakar. And Baja. And Vegas to Reno. Enough said...…what are YOU waiting for?
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with new intercooler and less restrictive airbox
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Double A-arm with sway bar and trophy truck inspired arms / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO R
Engine displacement - 900
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.4 x 68.5 in. (335.3 x 183.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 15.5 in. (39.4 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,620 lb (735 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22-in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22-in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, sport / ECO™ mode, seat belt and 4 x 4 indicator, diagnostics, clock, auto shut off
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 195 hp
- 20-in. (50.8 cm) of suspension travel
- 29-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM RC2† Piggyback shocks
- 64-in. width
![iron-gray---manta-green]()
![phoenix-orange-metallic]()
![triple-black]()
Front and rear FOX shocks are serious hardware to help you harness all 172 horses on any terrain, anywhere—and do it all again tomorrow.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok technology. 4WD TRAIL ACTIV / 4WD TRAIL
-
Wheels
14-in. (35.6 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.7 in. (335.3 x 162.5 x 166.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,501 lb (680.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20-in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 195 hp
- Up to 24-in. (61 cm) of suspension travel
- 30-in. Maxxis† Bighorn 2.0 tires
- FOX† 3.0 PODIUM RC2† Piggyback shocks
- 72-in. width
![hyper-silver--intense-blue---manta-green]()
![gold--can-am-red---hyper-silver]()
![triple-black]()
BUILT FOR THE VICTORY LAP. Run at the front of any pack with 195 horsepower, FOX 3.0 PODIUM suspension, Smart-Lok™ differential featuring Trail Activ mode—and up to 4 seats.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok technology. 4WD TRAIL ACTIV / 4WD TRAIL
-
Wheels
14-in. (35.6 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Double A-arm with sway bar and trophy truck inspired arms / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,627 lb (738 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22-in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24-in (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Mud
- Performance
- 195 hp
- 22-in. (55.9 cm) of suspension travel
- 30-in. ITP Cryptid† tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 72-in. width
![iron-gray---manta-green]()
Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges, it's the widest Maverick with 22 in. of suspension travel and armored 30 in. ITP Cryptid tires for the ultimate in mud performance
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD
-
Wheels
14-in. (35.6 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Arched double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132.3 x 74.2 x 68 in. (336 x 188.5 x 172.7 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 22-in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22-in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate, Rear tow hook,
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Rock Crawling
- Performance
- 195 hp
- Up to 24-in. (61 cm) suspension travel
- 32-in. Maxxis† Liberty 2.0 tires
- FOX† 3.0 PODIUM RC2† remote reservoir with bypass
- 72-in. width
![carbon-black---orange]()
Test your mettle and finally conquer the last mile: The Maverick™ X3 X rc Turbo RR is the ultimate factory rock-crawling side-by-side vehicle for leaving rivals at the bottom of the heap. Four-link TTX suspension with 24-in of travel features a trophy truck-like trailing arm and front double arched A-arm with sway bar.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD
-
Wheels
15-in. (38.1 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Trophy truck inspired arched double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Aluminum roof, Intrusion bar, 4-point harness with shoulder pads, UHMWPE rock sliders, HMWPE skidplates, Full heavy duty with differential / Under bumper / Front and rear suspension arm Rear tow hook
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 32 x 10 x 15 in. (81.3 x 25.4 x 38.1 cm)
Rear Tires - Maxxis Liberty† 32 x 10 x 15 in. (81.3 x 25.4 x 38.1 cm)
Wheels - 15-in. (38.1 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 134.5 x 72.8 x 68.5 in. (341.6 x 184.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,811 lb (821.5 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Trophy truck inspired double arched A-arm with sway bar / 22-in. (55.9 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 24-in. (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Aluminum roof, Intrusion bar, 4-point harness with shoulder pads, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with differential, Under bumper, Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 120 hp
- 20-in. (50.8 cm) of suspension travel
- 28-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 64-in. width
![hyper-silver---can-am-red]()
![white]()
![can-am-red]()
THE BEST IS BETTER THAN EVER. High-performance with no compromise: the 2 or 4-seat 120 horsepower Maverick X3 Turbo thrills with next-generation go-anywhere abilities.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO
Engine displacement - 900
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20-in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, sport / ECO™ mode, seat belt and 4 x 4 indicator, diagnostics, clock, auto shut off
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate , Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 172 hp
- 20-in. (50.8 cm) of suspension travel
- 28-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 64-in. width
![can-am-red---white]()
Front and rear FOX shocks are serious hardware to help you harness all 172 horses on any terrain, anywhere—and do it all again tomorrow.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with new intercooler and less restrictive airbox
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO R
Engine displacement - 900
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20-in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, sport / ECO™ mode, seat belt and 4 x 4 indicator, diagnostics, clock, auto shut off
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 172 hp
- 22-in. (55.9 cm) of suspension travel
- 29-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 72-in. width
![can-am-red---white]()
WIDE & WIDE OPEN. Invite 3 passengers to live the winning spirit of the vehicle which won the Dakar. And Baja. And Vegas to Reno. And…what are you waiting for?
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with new intercooler and less restrictive airbox
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Wheels
14-in. (35.6 cm) cast-aluminum wheels
-
Suspension
Front: Trophy truck inspired double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO R
Engine displacement - 900
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 72.4 x 68.5 in. (416.6 x 183.9 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 15.5 in. (39.4 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,869 lb (848 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22-in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22-in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, sport / ECO™ mode, seat belt and 4 x 4 indicator, diagnostics, clock, auto shut off
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 195 hp
- 20-in. (50.8 cm) of suspension travel
- 29-in. Maxxis† Bighorn 2.0 tires
- FOX† 2.5 PODIUM RC2† Piggyback shocks
- 64-in. width
![iron-gray---manta-green]()

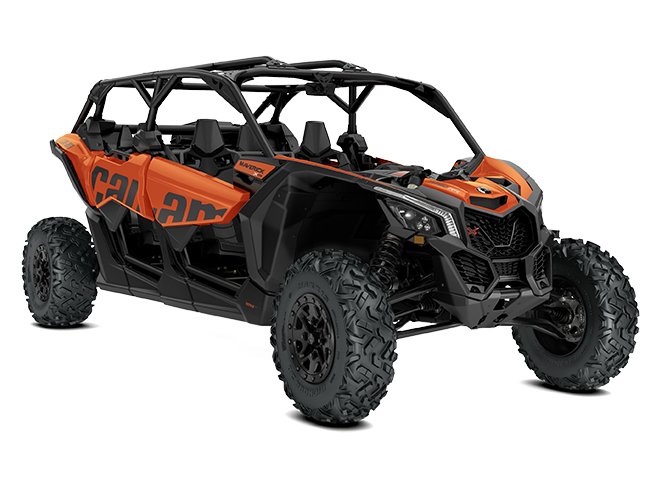

![phoenix-orange-metallic]()

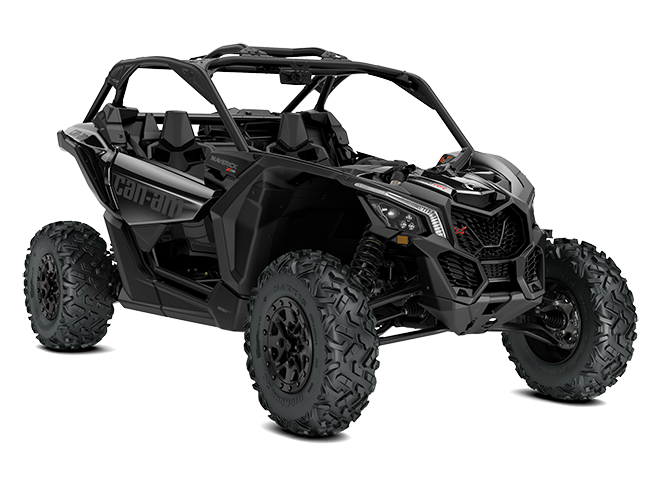

![triple-black]()
Front and rear FOX shocks are serious hardware to help you harness all 172 horses on any terrain, anywhere—and do it all again tomorrow.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Wheels
14-in. (35.6 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 66 in. (416.6 x 162.5 x 167.6 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,766 lb (801 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20-in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- 195 hp
- 22-in. (55.9 cm) of suspension travel
- 30-in. Maxxis† Bighorn 2.0 tires
- FOX† 3.0 PODIUM RC2†
- 72-in. width
![hyper-silver--intense-blue---manta-green]()
![gold--can-am-red---hyper-silver]()

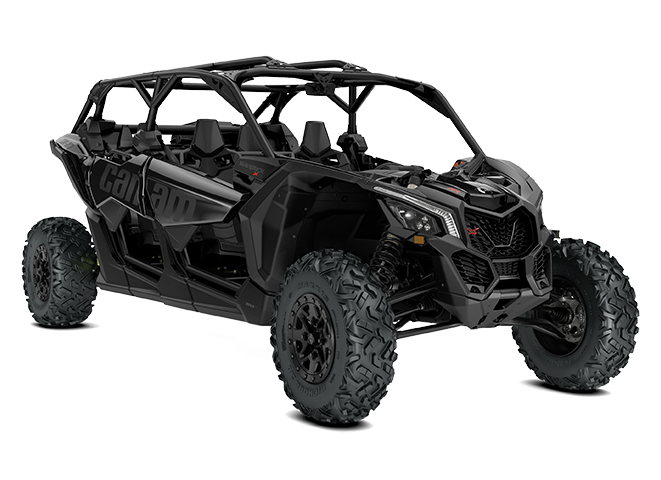

![triple-black]()
BUILT FOR THE VICTORY LAP. Run at the front of any pack with 3 of your friends, 195 horsepower, FOX 3.0 PODIUM RC2 shocks, Smart-Lok™ differential featuring Trail Activ mode.
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Wheels
14-in. (35.6 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Trophy truck inspired double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar
-
Protection
Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 72.7 x 68.5 in. (419.1 x 184.7 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,858 lb (843 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22-in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22-in. (55.9 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Mud
- 195 hp
- 22-in. (55.9 cm) of suspension travel
- 30-in. ITP Cryptid† tires
- FOX† 2.5 PODIUM Piggyback shocks with QS3†
- 72-in. width
![iron-gray---manta-green]()
Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges, it's the widest Maverick with 22 in. of suspension travel and armored 30 in. ITP Cryptid tires for the ultimate in mud performance
-
Engine
Rotax ACE 900 cc Turbocharged Triple-cylinder engine with a bigger turbo, new intercooler and less restrictive airbox
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD
-
Wheels
14-in. (35.6 cm) cast-aluminum beadlock wheels
-
Suspension
Front: Trophy truck inspired arched double A-arm with sway bar / Rear: 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Engine Engine - TURBO RR
Engine displacement - 900
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 74.2 x 68 in. (419.1 x 188.5 x 172.7 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,940 lb (880 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 22-in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22-in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, SPORT / ECO™ modes, seat belt, diagnostics, clock
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate,
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
