2020Outlander 450 / 570
-
Recreational Riding
- Trail
- 450: 38 hp / 570: 48 hp
- 25-in. Carlisle† Trail Wolf tires
- Prewired for available winch
![green]()
![viper-red]()
PERFORMANCE BEYOND ITS PRICE. The most capable Outlander you'd expect from Can-Am with a complete range of accessories at your disposal.
-
Engine
450: Rotax 427 cc single cylinder, liquid cooled 570: Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. steel wheels
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Feature
1,300 lbs (590 kg) of towing capacity
Engine Engine - 450
570
Engine displacement - 450
570
Type - 450: 38HP, Rotax 427 cc single cylinder, liquid cooled
570: 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok auto-locking front differential
Tires/Wheels Front Tires - Carlisle Trail Wolf 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - Carlisle Trail Wolf 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. steel
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 83 x 46 x 49 in. (211 x 116.8 x 124 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 450: 678 lb (308 kg)
570: 704 lb (319 kg)
Rack Capacity - Front: 120 lb (54.4 kg) Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 70 W from dual 35-W front light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - N/A
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-

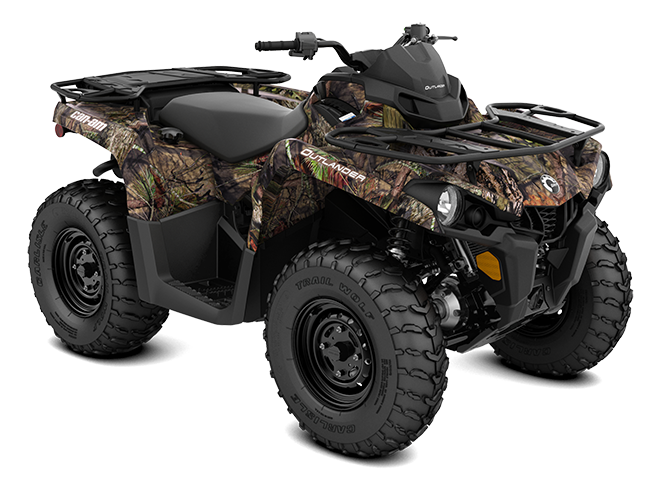

Recreational Riding
- Trail
- 450: 38 hp / 570: 48 hp
- 25-in. tires on 12-in. steel wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
![orange]()
![mossy-oak-break-up-country-camo]()
![green]()
HANDLE THE WORST WITH EASE. Dynamic Power Steering (DPS) improves comfort and steering feel everywhere: from tight turns on delicate turf to challenging trails.
-
Engine
450: Rotax 427 cc single cylinder, liquid cooled 570: Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. steel wheels
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
-
Feature
1,300 lbs (590 kg) of towing capacity
Engine Engine - 450
570
Engine displacement - 450
570
Type - 450: 38HP, Rotax 427 cc single cylinder, liquid cooled
570: 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† Trail Wolf 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† Trail Wolf 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. steel
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 83 x 46 x 49 in. (211 x 116.8 x 124 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 450: 678 lb (308 kg)
570: 704 lb (319 kg)
Rack Capacity - Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 70 W from dual 35-W front light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - N/A
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

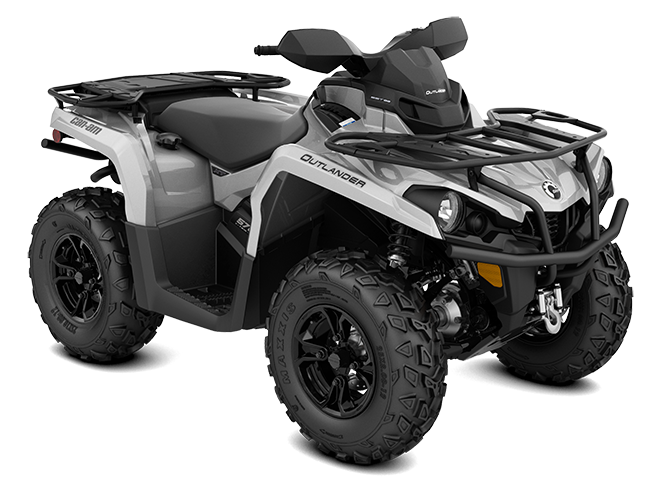

2020Outlander XT 570
-
Recreational Riding
- Trail
- 48 hp
- 25-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Heavy-duty front & rear bumpers
- Winch
![iron-gray---octane-blue]()
![hyper-silver]()
Expand your off-road capabilities with added features – and added value. Get equipped with Tri-Mode Dynamic Power Steering (DPS), a 3,000-lb (1,361 kg) winch, and heavy-duty front and rear bumpers.
-
Engine
Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Handlebar wind deflectors
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 570
Engine displacement - 570
Type - 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis M923J 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - Maxxis M923J 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 83 x 46 x 49 in. (211 x 116.8 x 124 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 704 lb (319 kg)
Rack Capacity - Front: 120 lb (54.4 kg) Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) trave
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 70 W from dual 35-W front light / brake light
Winch - 3,000-lb (1,361 kg) WARN winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-

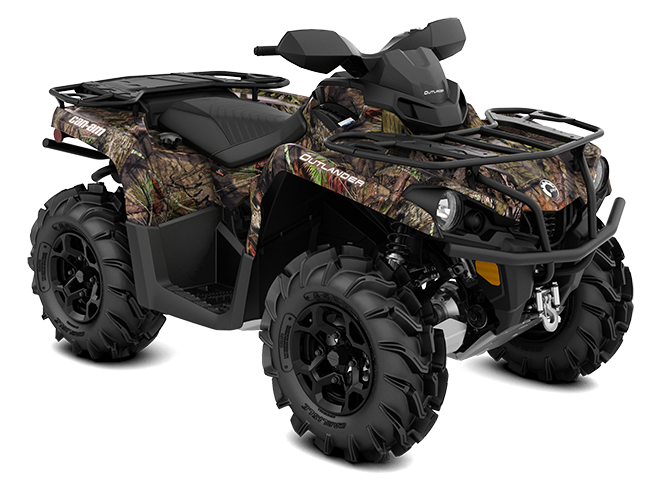

Hunting
- Trail
- Recreational Riding
- 450: 38 hp / 570: 48 hp
- 26-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Heavy-duty front & rear bumpers
- Winch, heated grips
![mossy-oak-break-up-country-camo]()
Combine Mossy Oak’s Break-Up Country pattern with factory-installed hunting accessories and you get the ultimate hunting package.
-
Engine
450: Rotax 427 cc single cylinder, liquid cooled 570: Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Front, central & footwell aluminum skid plates , Aluminum a-arms protectors, Heated grips & throttle, Handlebar wind deflectors
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 450
570
Engine displacement - 450
570
Type - 450: 38HP, Rotax 427 cc single cylinder, liquid cooled
570: 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT HD 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† ACT HD 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 83 x 46 x 49 in. (211 x 116.8 x 124 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11.5 in. (29.2 cm)
Estimated Dry Weight* - 450: 678 lb (308 kg)
570: 704 lb (319kg)
Rack Capacity - Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI2) with quick-release sway bar 8.8 in. (22 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 70 W from dual 35-W front light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Standard
Protection - Heavy-duty front & rear bumpers Front, central & footwell aluminum skid plates, Aluminum a-arms protectors, Heated grips & throttle, Handlebar wind deflectors
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2020Outlander X mr 570
-
Mud
- Trail
- Recreational Riding
- 48 hp
- 28-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Heavy-duty front bumper
- Bumper, relocated radiator
![granite-gray--black---manta-green]()
The most accessible mud-ready ATV on the market. Take on any mud hole with confidence and best-in-class power.
-
Engine
Rotax 570 cc V-twin, snorkeled, liquid cooled with relocated radiator
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front bumper, Mud-riding footrests
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 570
Engine displacement - 570
Type - 48HP, Rotax 570 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Mega Mayhem 28 x 8 x 12 in. (71.1 x 20.3 x 30.5 cm)
Rear Tires - ITP† Mega Mayhem 28 x 10 x 12 in. (71.1 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 83 x 46 x 49 in. (211 x 116.8 x 124 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11.7 in. (29.7 cm)
Estimated Dry Weight* - 843 lb (382 kg)
Rack Capacity - Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 70 W from dual 35-W front light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Heavy-duty front bumper, Mud-riding footrests
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Trail
- Recreational Riding
- 38 hp
- 26-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
![green]()
We build heavy-duty 6x6 ATV's for you—and the work that goes with it. For tough terrain and working off-road, there's nothing like the additional traction from a 6x6 being driven by the torquey and efficient Rotax 450 engine.
-
Engine
Rotax 427 cc single cylinder, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Central skid plate
-
Differential
Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 450
Engine displacement - 450
Type - 38HP, Rotax 427 cc single cylinder, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 4WD / 6WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 118 x 46 x 57 in (300 x 117 x 145 cm)
Wheel Base - 90 in. (228.5cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 1000 lb (454 kg)
Rack Capacity - Front: 120 lb (54.4 kg) / Rear: 350 lb (159kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI2) with quick-release sway bar 8.8 in. (22 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 70 W from dual 35-W front light and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - Central skid plate
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Recreational Riding
- Trail
- 450: 38 hp / 570: 48 hp
- 25-in. tires on 12-in. steel wheels
- Prewired for available winch
![viper-red]()
Raise your expectations, not your price range. Get the all-terrain performance you'd expect from Can-Am at the most accessible price ever. A more comfortable two-up riding experience that simply and quickly converts to a one-up.
-
Engine
450: Rotax 427 cc single cylinder, liquid cooled 570: Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. steel wheels
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Feature
1,300 lbs (590 kg) of towing capacity
Engine Engine - 450
570
Engine displacement - 450
570
Type - 450: 38HP, Rotax 427 cc single cylinder, liquid cooled
570: 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok auto-locking front differential
Power Steering - N/A
Tires/Wheels Front Tires - Carlisle† Trail Wolf 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† Trail Wolf 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. Steel
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 91 x 46 x 52.5 in (231 x 116.8 x 133 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 715 lb (324 kg)
741 lb (336 kg)
Rack Capacity - Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 71 W from dual 35-W front light / brake light
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - N/A
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Recreational Riding
- Trail
- 450: 38 hp / 570: 48 hp
- 25-in. tires on 12-in. steel wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Prewired for available winch
![orange]()
![green]()
A more comfortable two-up riding experience that simply and quickly converts to a one-up. With the added comfort of Tri-Mode Dynamic Power Steering (DPS).
-
Engine
450: Rotax 427 cc single cylinder, liquid cooled 570: Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. steel wheels
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
-
Feature
1,300 lbs (590 kg) of towing capacity
Engine Engine - 450
570
Engine displacement - 450
570
Type - 450: 38HP, Rotax 427 cc single cylinder, liquid cooled
570: 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† Trail Wolf 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - Carlisle† Trail Wolf 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. steel
Breaks Front - Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 91 x 46 x 52.5 in (231 x 116.8 x 133 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 450: 715 lb (324 kg)
570: 741 lb (336 kg)
Rack Capacity - Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 71 W from dual 35-W front light / brake light
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - N/A
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

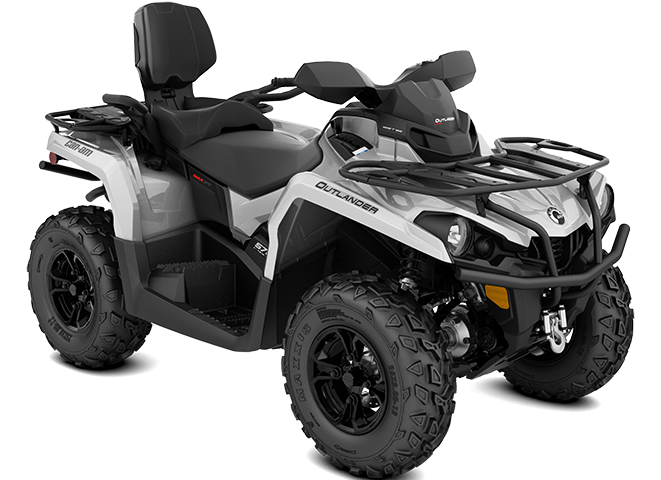

2020Outlander MAX XT 570
-
Hunting
- Trail
- Recreational Riding
- 48 hp
- 25-in. tires on 12-in. cast-aluminum wheels
- Tri-Mode Dynamic Power Steering (DPS)
- Heavy-duty front & rear bumpers
- Winch
![iron-gray---octane-blue]()
![hyper-silver]()
Expand your off-road capabilities with added features – and added value. Get equipped with Tri-Mode Dynamic Power Steering (DPS), a 3,000-lb (1,361 kg) winch, and heavy-duty front and rear bumpers.
-
Engine
Rotax 570 cc V-twin, liquid cooled
-
Suspension
Front: Double A-arm / Rear: Torsional Trailing arm Independent (TTI)
-
Wheels
12-in. cast-aluminum wheels
-
Protection
Heavy-duty front & rear bumpers, Handlebar wind deflectors
-
Differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Engine Engine - 570
Engine displacement - 570
Type - 48HP, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis† M923J 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
Rear Tires - Maxxis† M923J 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
Wheels - 12-in. cast-aluminum
Breaks Front - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Rear - Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 91 x 46 x 52.5 in (231 x 116.8 x 133 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 10.5 in. (26.7 cm)
Estimated Dry Weight* - 741 lb (336 kg)
Rack Capacity - Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg)
Storage Capacity - Rear: 2.9 gal (10.9 L)
Towing Capacity - 1,300 lb (590 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 33.8 in. (85.8 cm)
Suspensions Front Suspension - Double A-arm 9 in. (22.9 cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) travel
Rear Shocks - Oil
Feature Gauge - Multifunction digital: Speedometer, tachometer, odometer, trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 71 W from dual 35-W front light / brake light
Winch - 3,000-lb (1,361 kg) WARN† winch with roller fairlead
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
