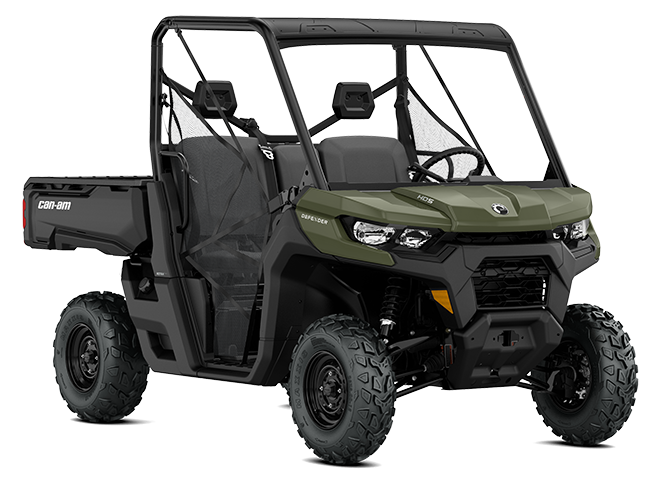

2021Defender
-
Work
- Trail
- Hunting
- HD5: 38 hp / HD8: 50 hp - 50 lb-ft
- Up to 11 in. (28 cm) ground clearance
- HD8: 27 in. Maxxis† Bighorn 2.0 tires
- 12 in. (30.5 cm) steel wheels
- Integrated front steel bumper
![green]()
DO IT ALL. The toughest, most capable Can-Am ever—exceptional work abilities & adaptible to any use at a price too good to pass up.
-
Engine
HD5: Rotax 427 cc single cylinder HD8: Rotax® 799.9 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
HD5: CVT / HD8: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Double A-arm / Rear: TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD5
HD8
Type - HD5: 38 hp, Rotax 427 cc single cylinder, liquid cooled
HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD5: CVT, P / R / N / H / L, standard engine braking
HD8: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - HD5: Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
HD8: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO Off / Work modes
Power Steering - N/A
Tires/Wheels Front Tires - HD5: Maxxis M923J† 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
HD8: Maxxis Bighorn 2.0† 27 x 9 x 12 in. (68.6 x 22.9 x 30.5 cm)
Rear Tires - HD5: Maxxis M924J† 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
HD8: Maxxis Bighorn 2.0† 27 x 11 x 12 in. (68.6 x 27.9 x 30.5 cm)
Wheels - 12 in. (30.5 cm) steel
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - HD5: Single 220 mm ventilated disc brakes with hydraulic twin-piston calipers
HD8: Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD5: 10.5 in. (26.7 cm)
HD8: 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD5: 1,305.1 lb (592 kg)
HD8: 1,459.5 lb (662 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - HD5: 600 lb (272.2 kg)
HD8: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L) Under dash (enclosed pocket) : 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - HD5: 1,500 lb (680 kg)
HD8: 2,500 lb (1134 kg)
Payload Capacity - HD5: 1,200 lb (544 kg)
HD8: 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - HD5: 500-W
HD8: 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

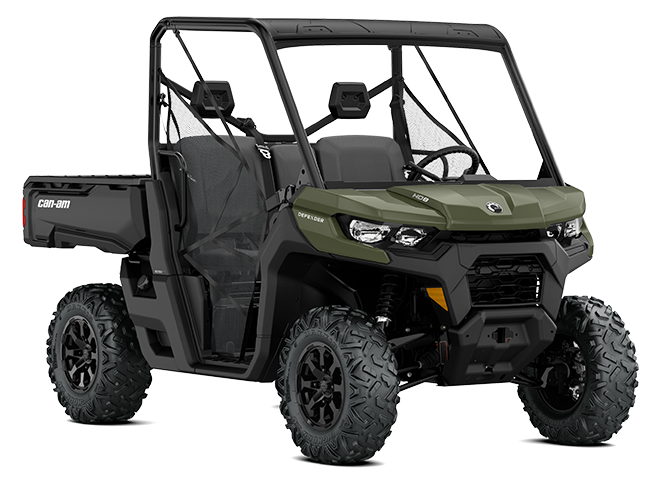

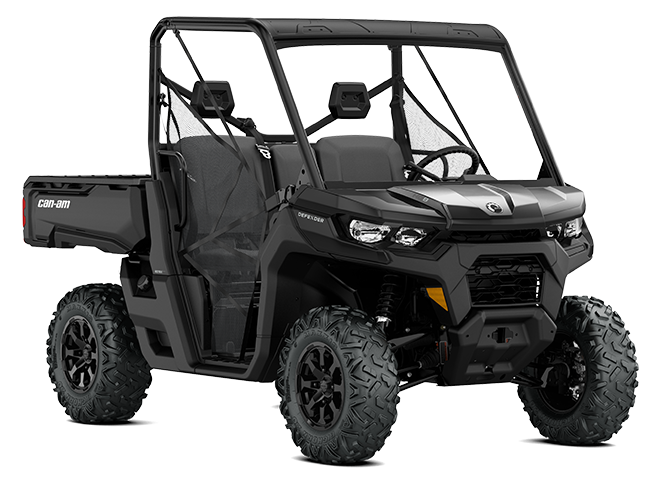

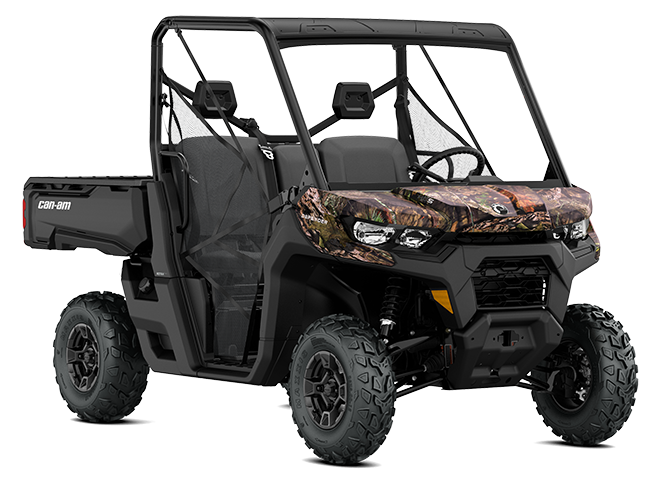

2021Defender DPS
-
Work
- Trail
- Hunting
- HD5: 38 hp / HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- HD10: 27 in. Maxxis† Bighorn 2.0 tires
- HD8-HD10: 14 in. (35.6 cm) cast-aluminum wheels
- Integrated front steel bumper
![mossy-oak-break-up-country-camo]()
![timeless-black]()
![oxford-blue]()
![green]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
-
Engine
HD5: Rotax 427 cc single cylinder HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc, V-twin, liquid cooled
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
HD5: CVT / HD8-HD10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD5-HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD8
HD5
HD10
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD5: 38 hp, Rotax 427 cc single cylinder, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD8-HD10: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
HD5: CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
HD5: Maxxis M923J† 25 x 8 x 12 in. (63.5 x 20.3 x 30.5 cm)
HD10: Maxxis Bighorn 2.0 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in
HD5: Maxxis M924J† 25 x 10 x 12 in. (63.5 x 25.4 x 30.5 cm)
HD10: Maxxis Bighorn 2.0 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - HD8-HD10: 14 in. (35.6 cm) cast-aluminum
HD5: 12 in. (30.5 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - HD8-HD10: Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
HD5: Single 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - HD5-HD8: 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
HD10: 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
85 in. (211.5 cm)
Ground Clearance - HD8: 11 in. (28 cm)
HD5: 10.5 in. (26.7 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD8: 1,521.2 lb (690 kg)
HD5: 1,322.8 lb (600 kg)
HD10: 1,536.6 lb (697 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - HD8-HD10: 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
HD5: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - HD8-HD10: 2,500 lb (1134 kg)
HD5: 1,500 lb (680 kg)
Payload Capacity - HD8-HD10: 1,500 lb (680 kg)
HD5: 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD5-HD8: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD5-HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - HD8-HD10: 650-W
HD5: 500-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

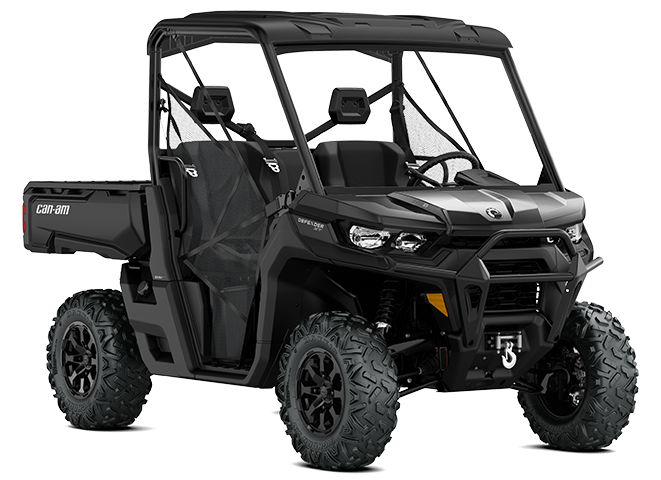

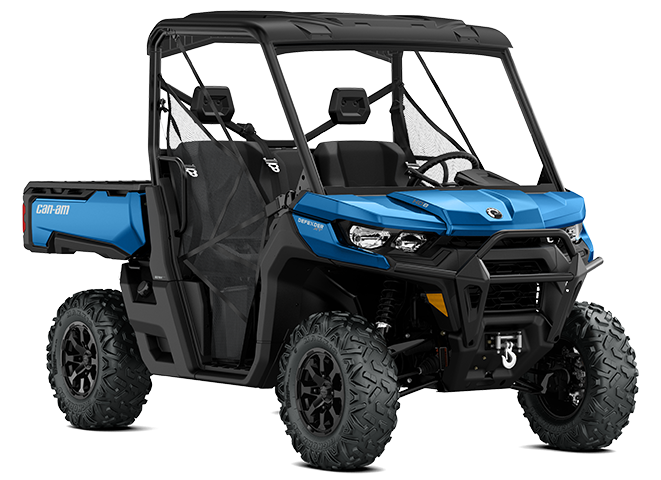

2021Defender XT
-
Work
- Trail
- Hunting
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 13 in. (33 cm) ground clearance
- HD10: 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- 4,500-lb winch, XT front bumper
![mossy-oak-break-up-country-camo]()
![timeless-black]()
![oxford-blue]()
![boreal-green]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, Full hard roof, 4,500-lb winch with roller fairlead, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD8
HD10
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
HD10: Maxxis Bighorn 2.0 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - HD8: 125.7 x 62 x 78 in. (319,4 x 157.5 x 198.1 cm)
HD10: 125.7 x 64 x 80 in. (319,4 x 162.5 x 203.2 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD8: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD8: 1,585.1 lb (719 kg)
HD10: 1,600.6 lb (726 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD8: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender DPS CAB
-
Work
- Trail
- Hunting
- HD8: 50 hp - 50 lb-ft
- 12 in. (30.5 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires or XPS Trail Force tires*
- 14 in. (35.6 cm) cast-aluminum wheels
- Heating and ventilation, integrated front steel bumper
![green]()
COMPLETELY COVERED. Fully sealed cab for less dust, more protection from the elements, standard heater—your weatherproof workhorse has arrived.
-
Engine
HD8: Rotax® 799.9 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD8
Type - 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
Rear Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 65 x 79 in (307.1 x 165.1 x 201 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,799 lb (816 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with swaybar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit & Rear glass window
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

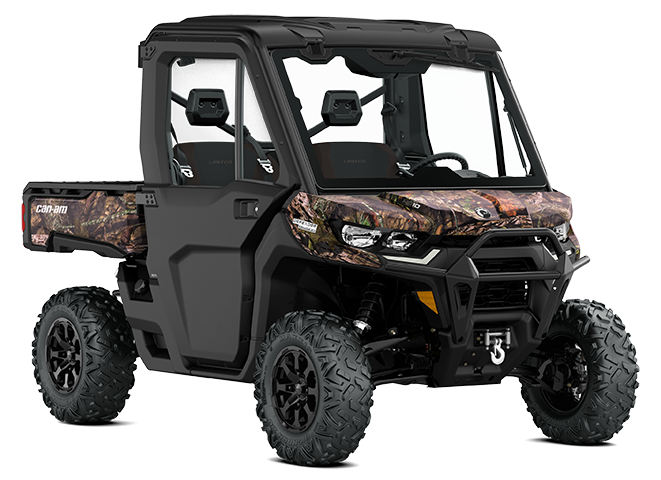

2021Defender Limited
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 12 in. (30.5 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires or XPS Trail Force tires*
- 14 in. (35.6 cm) cast-aluminum wheels
- HVAC heating, ventilation and air conditioning, 4,500-lb winch, XT front bumper
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![hyper-silver]()
STANDARD AIR CONDITIONING. Work & play in complete comfort, loaded with the features like front electric window, flip-up winshield, and capability you'd expect from our most refined all-weather workhorse.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 4,500-lb winch with roller fairlead, 7.6 in. digital display with keypad, Signature LED
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in
Rear Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 126 x 65 x 79 in (319 x 165.1 x 201 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1928 lb (874.5 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit & Rear glass
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

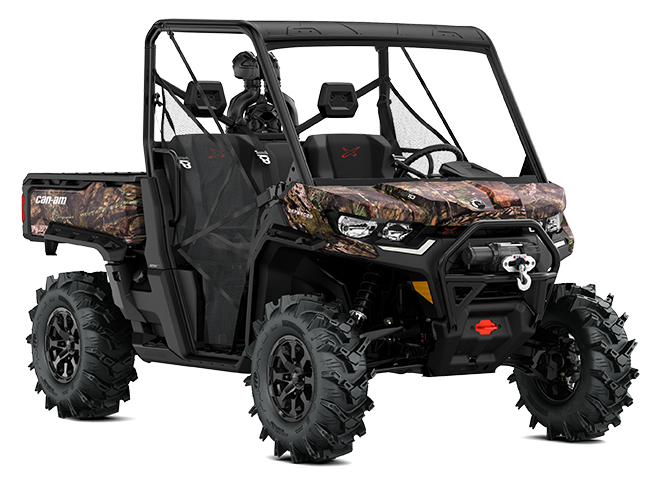

2021Defender X mr
-
Mud
- Work
- Hunting
- HD10: 82 hp - 69 lb-ft
- 15 in. (38.1 cm) ground clearance
- 30 in. ITP Cryptid† tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Smart-Lok™, 4,500-lb winch with synthetic rope, heavy-duty front steel bumper
![mossy-oak-break-up-country-camo]()
![iron-gray---manta-green]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
-
Engine
Rotax® 976 cc V-twin
-
Features
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards, Relocated 4,500-lb winch with synthetic rope and roller fairlead, 7.6 in. digital display with keypad, Signature LED, X mr trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-alumium
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,697.6 lb (770 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender MAX
-
Work
- Trail
- Hunting
- HD8: 50 hp - 50 lb-ft
- 11 in. (28 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 or XPS Trail Force tires*
- 14 in. (35.6 cm) cast-aluminum wheels
- Integrated front steel bumper
![green]()
DO IT ALL (AND THEN SOME). Defender MAX is well-equipped from standard to tackle your jobs. Room for 6, 4WD, 1-year warranty, and a punchy Rotax® powertrain. And it's a six-seater that doesn't compromise on turning radius.
-
Engine
Rotax® 799.9 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Double A-arm / Rear: TTA with external sway bar
-
Seat
Dual VERSA-PRO bench seats
Engine Engine - HD8
Type - 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - N/A
Tires/Wheels Front Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
Rear Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,715.2 lb (778 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L) Under dash (enclosed pocket) : 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

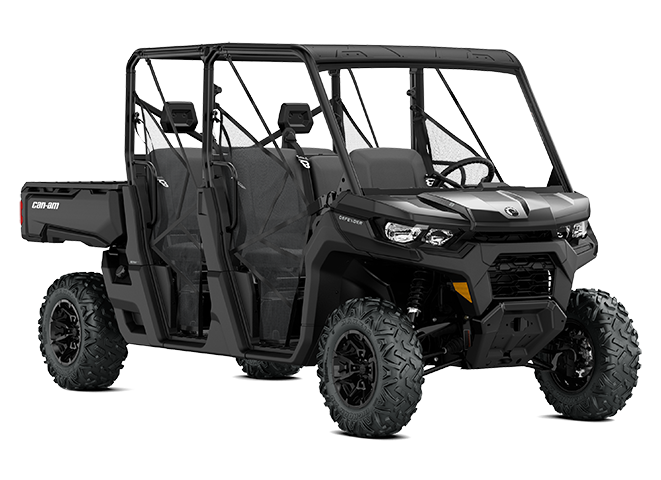

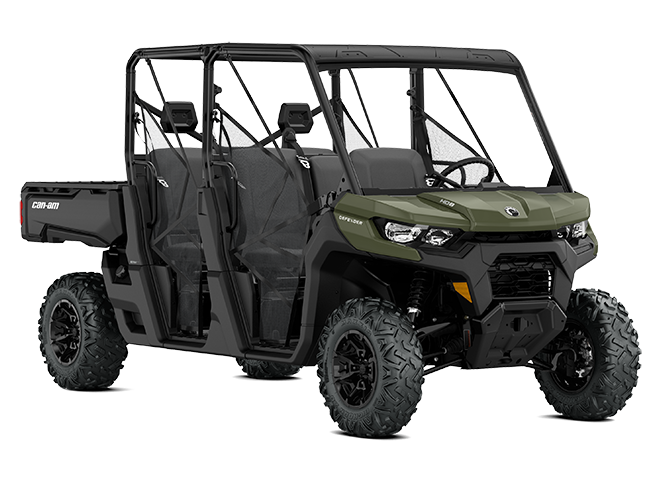

2021Defender MAX DPS
-
Work
- Trail
- Hunting
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 12.5 in. (31.8 cm) ground clearance
- HD10: 27 in. Maxxis† Bighorn 2.0
- 14 in. (35.6 cm) cast-aluminum wheels
- Integrated front steel bumper
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![timeless-black]()
![green]()
TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco-Lok QE 4WD—and get it done.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
Dual VERSA-PRO bench seats
Engine Engine - HD8
HD10
Type - HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - HD8: 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
HD10: 153.4 x 64 x 77.5 in. (389.6 x 162.5 x x 196.9 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD8: 11 in. (28 cm)
HD10: 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD8: 1,750.4 lb (794 kg)
HD10: 1,771.2 lb (803.4 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD8: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

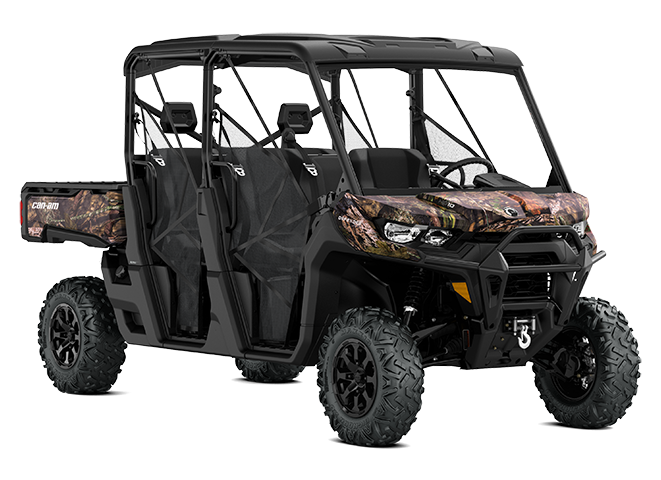

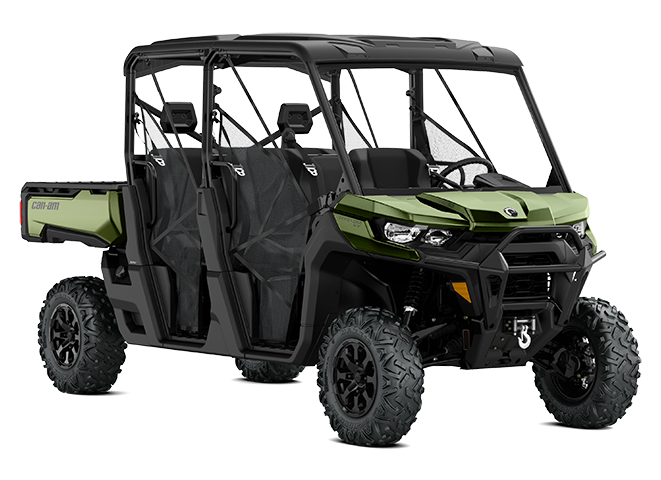

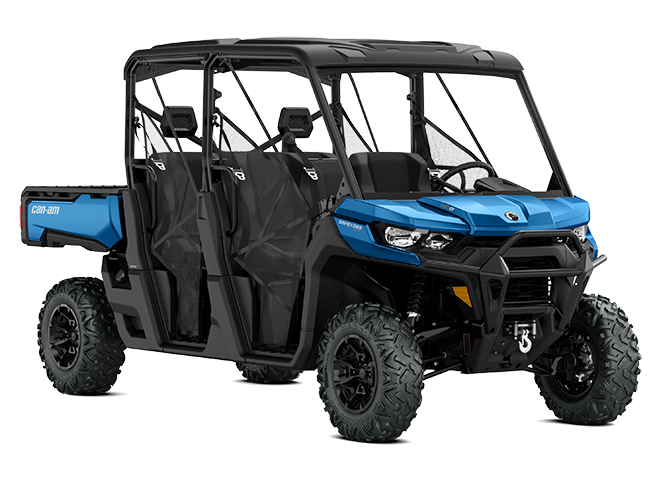

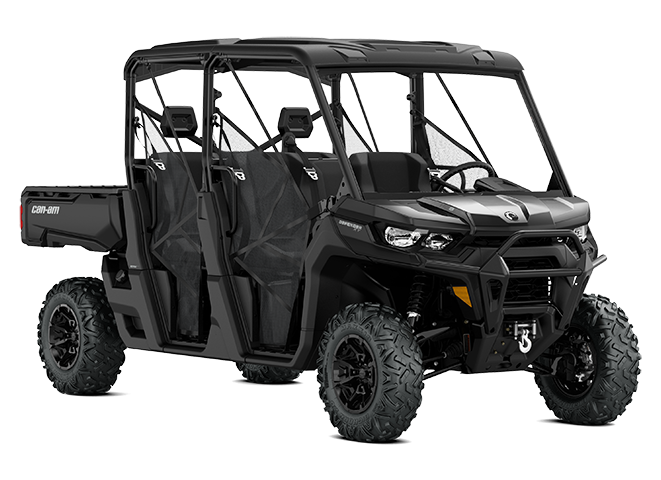

2021Defender MAX XT
-
Work
- Trail
- Hunting
- HD8: 50 hp / HD10: 82 hp - 69 lb-ft
- Up to 12.5 in. (31.8 cm) ground clearance
- HD10: 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- 4,500-lb winch, XT front bumper
![mossy-oak-break-up-country-camo]()
![timeless-black]()
![oxford-blue]()
![boreal-green]()
EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
-
Engine
HD8: Rotax® 799.9 cc V-twin HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, 4,500-lb winch with roller fairlead, HMWPE full skid plate, 2-piece full hard roof, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
HD8: Front: Double A-arm / Rear: TTA with external sway bar HD10: Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
Dual VERSA-PRO bolster reinforced bench seats
Engine Engine - HD10
HD8
Type - HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
HD8: 50 hp / 50 lb-ft , Rotax® 799.9 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
Rear Tires - HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
HD8: Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
HD8: 158.3 x 63.5 x 76 in. (402 x 161.2 x 193cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD10: 12.5 in. (31.8 cm)
HD8: 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD10: 1,902.6 lb (863 kg)
HD8: 1,882.8 lb (854 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
39 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD10: Arched double A-arm / 11 in. (27.9 cm) travel
HD8: Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
HD8: TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 13 in. (33 cm) ground clearance
- 28 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- 4,500-lb winch, Heavy-duty front steel bumper
![stone-gray]()
BUILT FOR HIGHER GROUND. The ultimate Defender MAX, upgraded from top to bottom: 6-person seating, industry-leading Rotax HD10 engine, unique interior trim—and tons of factory extras.
-
Engine
Rotax® 976 cc V-twin
-
Features
Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders, 4,500-lb winch with roller fairlead, 7.6 in. digital display with keypad, Signature LED, Lone Star trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
Dual VERSA-PRO bolster reinforced bench seats
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158.9 x 65 x 79.9 in. (403.6 x 165.1 x 203.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,929 lb (875 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,730 lb (785 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring LONE STAR package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

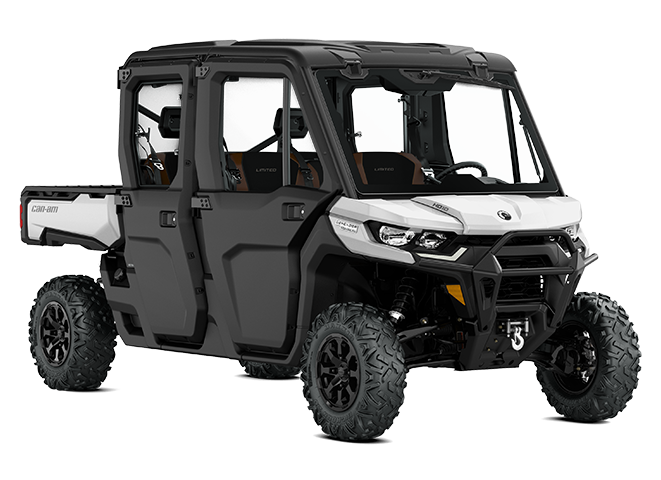

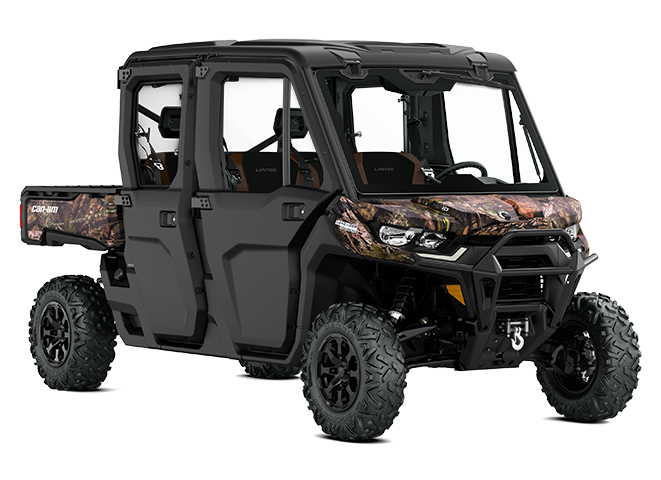

2021Defender MAX Limited
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 12 in. (30.5 cm) ground clearance
- 27 in. Maxxis† Bighorn 2.0 tires or XPS Trail Force tires*
- 14 in. (35.6 cm) cast-aluminum wheels
- HVAC heating, ventilation and air conditioning, 4,500-lb winch, XT front bumper
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![hyper-silver]()
COMFORT FOR THE WHOLE CREW. Standard 3-mode air conditioning turns the Defender MAX into the perfect way to ensure up to 6 people can work, travel and adapt as the conditions demand.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 4,500-lb winch with roller fairlead, 7.6 in. digital display with keypad, Signature LED
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
Dual VERSA-PRO bolster reinforced bench seats
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 9 x 14 in. or XPS Trail Force 27 x 9 x 14 in.
Rear Tires - Depending on production date: Maxxis Bighorn 2.0† 27 x 11 x 14 in. or XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158 x 65 x 79 in (402 x 165.1 x 201 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 2337 lb (1060 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1300 lb (590 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit & Rear glass window
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender MAX X mr
-
Mud
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 15 in. (38.1 cm) ground clearance
- 30 in. ITP Cryptid tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Smart-Lok™, 4,500-lb winch with synthetic rope, heavy-duty front steel bumper
![mossy-oak-break-up-country-camo]()
FORCE OF NATURE. Defender MAX X mr is the ultimate mud workhorse: 6 seats, Rotax HD10 V-Twin engine, Smart-Lok™ differential, 15 in. ground clearance, a winch, and more.
-
Engine
Rotax® 976 cc V-twin
-
Features
Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards, Relocated 4,500-lb winch with synthetic rope and roller fairlead, 7.6 in. digital display with keypad, Signature LED, X mr trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA
-
Seat
Dual VERSA-PRO bolster reinforced bench seats
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust, Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 161.9 x 64 x 82 in. (411.2 x 162.6 x 208.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,999 lb (907.7 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,630 lb (739 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

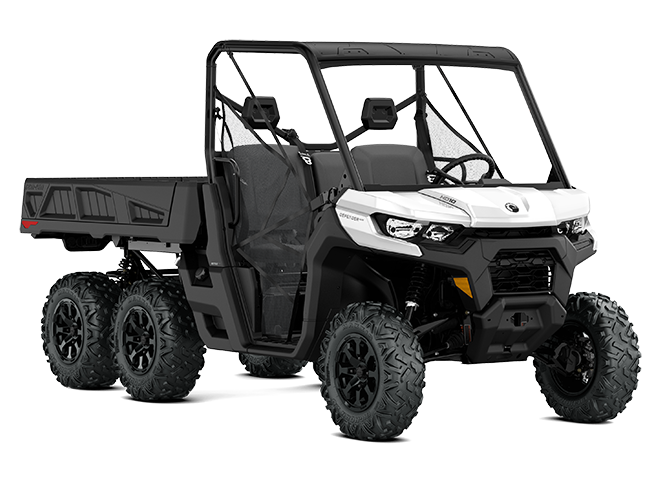

2021Defender 6x6 DPS
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- 3, 000 lb towing capacity, integrated front steel bumper
![mossy-oak-break-up-country-camo]()
![white]()
CAN-AM OFF-ROAD REVOLUTION. Six wheels, unlimited potential. Get the most traction, load-carrying, power, and capability ever engineered into an off-road workhorse.
-
Engine
Rotax® 976 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 154.1 x 64 x 78 (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,945 lb (882 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender 6x6 XT
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 27 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Power Tilt Bed, 4,500-lb winch, XT front bumper
![oxford-blue]()
BETTER WITH 6. Our most work-focused 6x6 workhorse, with added features to Get. It. Done. Standard power tilt and dump bed, 4,500-lb winch, and XT body protection.
-
Engine
Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, 4,500-lb winch with roller fairlead, Full hard roof, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in. (68.6 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in. (68.6 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 159.7 x 64 x 80 in. (405.7 x 162.5 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 2,077 lb (942 kg)
Cargo Box Dimensions - 73 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-

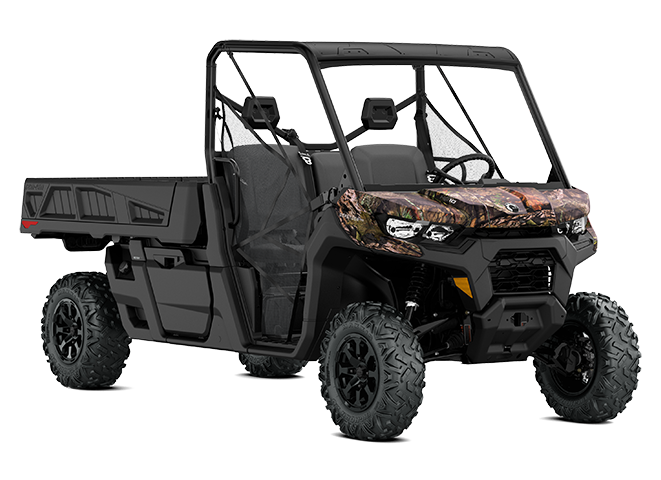

2021Defender Pro DPS
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 28 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Lower Storage 83.6 gal (316.5 L), Integrated front steel bumper
![mossy-oak-break-up-country-camo]()
![white]()
PERFECT PLATFORM. The world’s best Can-Am with a 6 x 4.5 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
Integrated front steel bumper, HMWPE central skid plate
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 154.1 x 64 x 78 in. (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,833 lb (831.5 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender Pro XT
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 28 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Power Tilt Bed, lower Storage 83.6 gal (316.5 L), 4,500-lb winch, XT front bumper
![oxford-blue]()
EXTRA PAYLOAD ON A RIG THAT NEVER QUITS. Our best workhorse, and then some: 4,500 lb winch, rugged bumper and VERSA-PRO seats ensure every job will be done with strength to spare.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, 4,500-lb winch with roller fairlead, Full hard roof, XT trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159.7 x 64 x 80 in. (405.7 x 162.5 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,960 lb (889 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bench seat with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 28 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- Power Tilt Bed, lower Storage 83.6 gal (316.5 L), 4,500-lb winch, Heavy-duty front steel bumper
![stone-gray]()
LIKE A POWERLIFTER WITH WHEELS. Super-rough terrain? That's no big deal, not when you've got wheels, tires and suspension that give you a full 13 inches of ground clearance and the most eye-catching and bold package we offer.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
Heavy-duty front steel bumper, HMWPE full skid plate, 4,500-lb winch with roller fairlead, Full hard roof, Aluminum rock sliders, 7.6 in. digital display with keypad, Signature LED, Lone Star trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 160.6 x 65 x 80 in (407.2 x 165.1 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,995 lb (905 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,650 lb (748 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring LONE STAR package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Full hard roof, Aluminum rock sliders
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP imited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
2021Defender PRO Limited
-
Work
- Trail
- Hunting
- HD10: 82 hp - 69 lb-ft
- 6 x 4.5 ft bed
- 28 in. Maxxis† Bighorn 2.0 tires
- 14 in. (35.6 cm) cast-aluminum wheels
- HVAC heating, ventilation and air conditioning, Power Tilt Bed, lower Storage 83.6 gal (316.5 L), 4,500-lb winch, XT front bumper
![oxford-blue]()
WORK LIKE A BOSS. Everything that makes the Defender great, plus the world's first automatic climate control (A/C, ventillation and heating) system, full cab, power driver / passenger windows, and the most quiet, plush off-road handling. If you can dream it, the Defender PRO Limited does it.
-
Engine
HD10: Rotax® 976 cc V-twin
-
Features
XT front bumper, HMWPE full skid plate, 4,500-lb winch with roller fairlead, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 7.6 in. digital display with keypad, Signature LED, Limited Trims
-
Transmission
PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection
-
Suspension
Front: Arched double A-arm with sway bar / Rear: Arched TTA with external sway bar
-
Seat
VERSA-PRO bolster reinforced bench seat
Engine Engine - HD10
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14-in. (35.6 cm) cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159.7 x 65 x 79.5 in (405.7 x 165.1 x 202.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 2,360 lb (1070.5 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,360 lb (617 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof with liner and interior dome light, Full black doors with electric opening windows, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass window
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
Share
