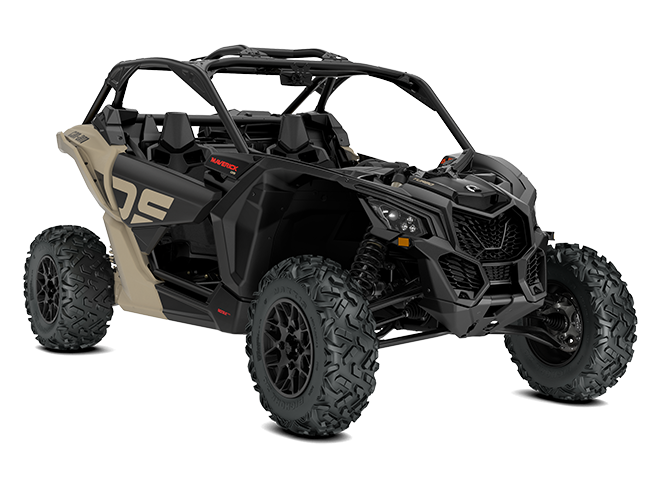

2021Maverick X3 DS Turbo
-
Performance
- Desert / Trail
- 120 hp
- 64 in. width
- 20 in. (50.8 cm) of suspension travel
- 28 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum wheels
![can-am-red]()
![desert-tan---carbon-black]()
![octane-blue]()
THE BEST IS BETTER THAN EVER. High-performance at an MSRP that keeps our competitors up at night: the 2 or 4-seat 120 horsepower Maverick X3 DS Turbo thrills with next-generation go-anywhere.
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
Rear tow hook
Engine Engine - TURBO
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,481 lb (671.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-

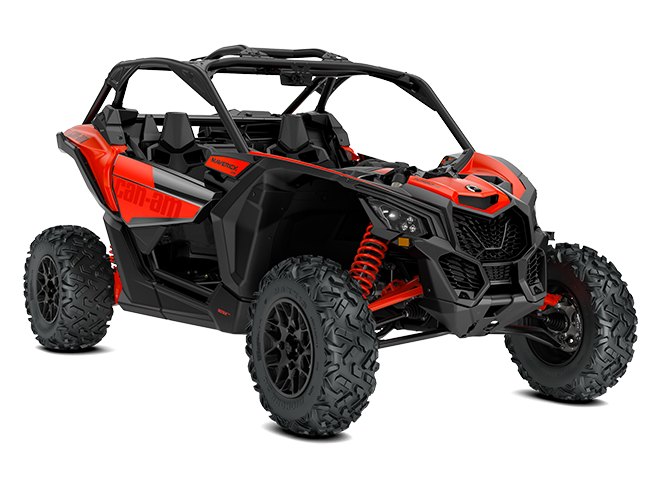

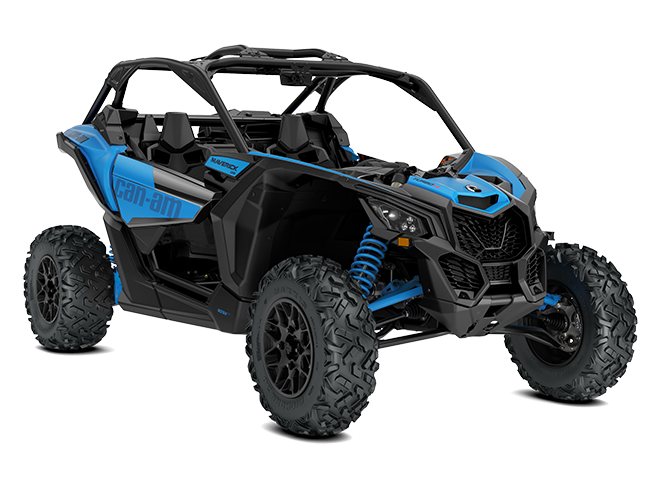

Performance
- Desert / Trail
- 172 hp
- 64 in. width
- 20 in. (50.8 cm) of suspension travel
- 28 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum wheels
![can-am-red]()
![desert-tan---carbon-black]()
![octane-blue]()
RACE ONLY YOUR PULSE. New 64 in. DS Turbo R is your blend of more standard features & improved suspension across all terrains.
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
Rear tow hook
Engine Engine - TURBO R
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,481 lb (671.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-

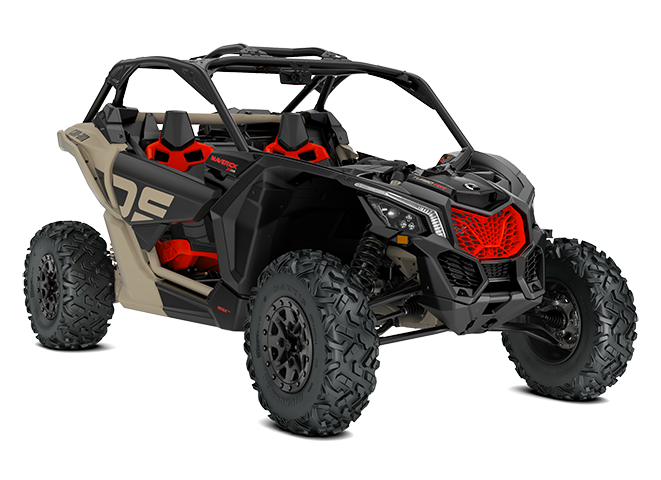

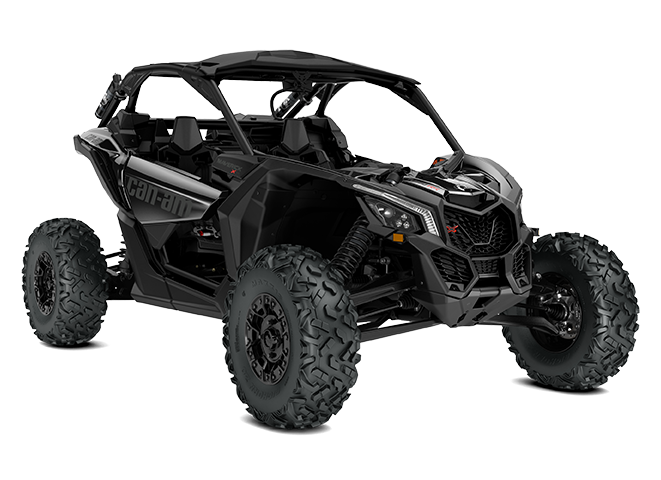

Performance
- Desert / Trail
- 195 hp
- 64 in. width
- 20 in. (50.8 cm) of suspension travel
- Smart-Lok featuring 4WD TRAIL ACTIV mode
- 29 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum beadlock wheels
![desert-tan---carbon-black---can-am-red]()
![triple-black]()
MAKE THE WORLD YOUR STAGE. Front and rear FOX shocks are serious hardware to help you harness all 195 horses on any terrain, anywhere—and do it all again tomorrow.
-
Differential
Lockable front differential with exclusive Smart-Lok technology. 4WD TRAIL ACTIV / 4WD TRAIL
-
Shocks
FOX† 2.5 PODIUM RC2† Piggyback
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.7 in. (335.3 x 162.5 x 166.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,501 lb (680.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20-in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-

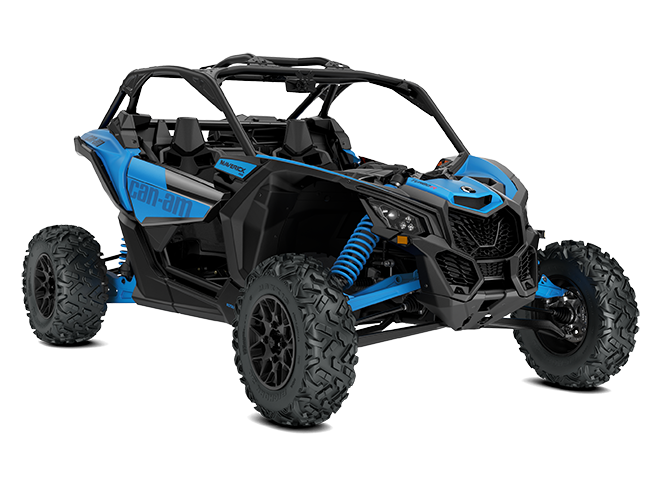

Performance
- Desert / Dunes
- 172 hp
- 72 in. width
- 22 in. (55.9 cm) of suspension travel
- 29 in. Maxxis† Bighorn 2.0 tires 14 in. cast-aluminum wheels
![can-am-red]()
![desert-tan---carbon-black]()
![octane-blue]()
72 inch wide & WIDE OPEN. Winning the Dakar. And Baja. And Vegas to Reno. Enough said...…what are YOU waiting for?
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double A-arm with sway bar and trophy truck inspired arms / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
Rear tow hook
Engine Engine - TURBO R
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.4 x 68.5 in. (335.3 x 183.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 15.5 in. (39.4 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,620 lb (735 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22-in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Dunes
- 195 hp
- 72 in. width
- Up to 24 in. (61 cm) of suspension travel
- Smart-Lok featuring 4WD TRAIL ACTIV mode
- 30 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum beadlock wheels
![desert-tan---carbon-black---can-am-red]()
![intense-blue]()
![triple-black]()
Run at the front of any pack with 195 horsepower and Smart-Lok™ differential featuring Trail Activ mode.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback / Rear: FOX† 3.0 PODIUM RC2† Piggyback
-
Suspension
Front: Double A-arm with sway bar and trophy truck inspired arms / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate
-
Features
7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,627 lb (738 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24-in (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Dunes
- 195 hp
- 72 in. width
- Up to 24 in. (61 cm) of suspension travel
- Smart-Shox Technology, Smart-Lok featuring 4WD TRAIL ACTIV mode
- 30 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum beadlock wheels
![desert-tan---carbon-black---can-am-red]()
![triple-black]()
BUILT FOR THE VICTORY LAP. Run at the front of any pack with 195 horsepower, Smart-Lok™ differential featuring Trail Activ mode and Smart-Shox semi-active suspension.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Shocks
Front: FOX† 2.5 PODIUM Piggyback with bypass and Smart-Shox Technology / Rear: FOX† 3.0 PODIUM Remote reservoir with bypass and Smart-Shox Technology
-
Suspension
Front: Trophy truck inspired double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate
-
Features
7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,646 lb (747 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24-in (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM† remote reservoir with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment) **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Mud
- Performance
- 120 hp
- 64 in. width
- 18 in. (45.7 cm) of suspension travel
- Smart-Lok featuring 4WD MUD mode
- 30 in. ITP Cryptid† tires on 14 in. cast-aluminum with machined finish wheels
![iron-gray---manta-green]()
STIR IT UP. Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges. Balanced with 64 in. width, 18 in. of suspension travel, and armored 30 in. ITP Cryptid tires for the ultimate in mud performance.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double arched A-arm with sway bar / Rear: 4-link TTX with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
-
Features
4,500-lb winch with synthetic rope, 7.6 in. digital display with keypad, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum with machined finish
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 66.7 x 66.1 in. (337.8 x 169.4 x 167.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,664 lb (754.8 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 18 in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18 in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Mud
- Performance
- 195 hp
- 72 in. width
- 22 in. (55.9 cm) of suspension travel
- Smart-Lok featuring 4WD MUD mode
- 30 in. ITP Cryptid† tires on 14 in. cast-aluminum beadlock wheels
![iron-gray---manta-green]()
MUD ISN’T A DIRTY WORD. Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges, it's the widest Maverick with 22 in. of suspension travel and armored 30 in. ITP Cryptid tires for the ultimate in mud performance
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Trophy truck inspired double arched A-arm with sway bar / Rear: 4-link TTX with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
-
Features
4,500-lb winch with synthetic rope, 7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132.3 x 74.2 x 68 in. (336 x 188.5 x 172.7 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22-in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate,
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Rock
- Performance
- 120 hp
- 64 in. width
- 18 in. (45.7 cm) of suspension travel
- Smart-Lok featuring 4WD ROCK mode
- 30 in. Maxxis† Liberty 2.0 tires on 14 in. cast-aluminum wheels
![chalk-gray---magma-red]()
FULL OF ALTITUDE. Conquer the last mile with Rock-specific Smart-Lok™ differential tuning, upgraded FOX 2.5 PODIUM Piggyback shocks with QS3†, winch & full protection for whoops and rocky ridges alike. It's as furious and smart as it looks.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double arched A-arm with sway bar / Rear: 4-link TTX with sway bar and arched lower links
-
Protection
Front bumper Quarter-doors, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with differential / Under bumper / Front and rear suspension arm
-
Features
4,500-lb winch with synthetic rope, 7.6 in. digital display with keypad, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 30 x 10 x 14 in. (76.2 x 25.4 x 35.6 cm)
Rear Tires - Maxxis Liberty† 30 x 10 x 14 in. (76.2 x 25.4 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 65.6 x 66 in. (337.8 x 166.6 x 167.6 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,642 lb (744.8 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 18 in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18 in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Quarter-doors, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with differential / Under bumper / Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Rock
- Performance
- 195 hp
- 72 in. width
- Up to 24 in. (61 cm) of suspension travel
- Smart-Lok featuring 4WD ROCK mode
- 32 in. Maxxis† Liberty 2.0 tires on 15 in. cast-aluminum beadlock wheels
![chalk-gray---magma-red]()
ROCK ON ROCKS. Test your mettle and finally conquer the last mile: The Maverick X3 X rc Turbo RR is the ultimate factory rock-crawling side-by-side vehicle for leaving rivals at the bottom of the heap. Four-link TTX suspension with 24 in. of travel features a trophy truck-like trailing arm and front double arched A-arm with sway bar.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback / Rear: FOX† 3.0 PODIUM RC2† Piggyback
-
Suspension
Front: Trophy truck inspired double arched A-arm with sway bar / Rear: 4-link TTX with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Aluminum roof, Intrusion bar, 4-point harness with shoulder pads, UHMWPE rock sliders, HMWPE skidplates, Full heavy duty with differential / Under bumper / Front and rear suspension arm
-
Features
4,500-lb winch with synthetic rope, 7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 32 x 10 x 15 in. (81.3 x 25.4 x 38.1 cm)
Rear Tires - Maxxis Liberty† 32 x 10 x 15 in. (81.3 x 25.4 x 38.1 cm)
Wheels - 15 in. (38.1 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 134.5 x 72.8 x 68.5 in. (341.6 x 184.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,811 lb (821.5 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Trophy truck inspired double arched A-arm with sway bar / 22 in. (55.9 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 24 in. (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Aluminum roof, Intrusion bar, 4-point harness with shoulder pads, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with differential, Under bumper, Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Trail
- 120 hp
- 64 in. width
- 20 in. (50.8 cm) of suspension travel
- 28 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum wheels
![can-am-red]()
![desert-tan---carbon-black]()
![octane-blue]()
THE BEST IS BETTER THAN EVER. High-performance with no compromise: the 2 or 4-seat 120 horsepower Maverick X3 Turbo thrills with next-generation go-anywhere abilities.
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
Rear tow hook
Engine Engine - TURBO
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate , Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Trail
- 172 hp
- 64 in. width
- 20 in. (50.8 cm) of suspension travel
- 28 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum wheels
![can-am-red]()
![desert-tan---carbon-black]()
![octane-blue]()
MAKE THE WORLD YOUR STAGE. Front and rear FOX shocks are serious hardware to help you harness all 195 horses on any terrain, anywhere—and do it all again tomorrow.
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
Rear tow hook
Engine Engine - TURBO R
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in. (71.1 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in. (71.1 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Trail
- 195 hp
- 64 in. width
- 20 in. (50.8 cm) of suspension travel
- Smart-Lok featuring 4WD TRAIL ACTIV mode
- 29 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum beadlock wheels
![desert-tan---carbon-black---can-am-red]()
![triple-black]()
WHERE TO? Front and rear FOX shocks are serious hardware to help you harness all 195 horses on any terrain, anywhere—and do it all again tomorrow.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Shocks
FOX† 2.5 PODIUM RC2† Piggyback
-
Suspension
Front: Double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 66 in. (416.6 x 162.5 x 167.6 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,766 lb (801 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Dunes
- 172 hp
- 72 in. width
- 22 in. (55.9 cm) of suspension travel
- 29 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum wheels
![can-am-red]()
![desert-tan---carbon-black]()
![octane-blue]()
WIDE & WIDE OPEN. Invite 3 passengers to live the winning spirit of the vehicle which won the Dakar. And Baja. And Vegas to Reno. And…what are you waiting for?
-
Differential
Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Trophy truck inspired double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, HMWPE full skid plate
-
Features
Rear tow hook
Engine Engine - TURBO R
Type - 172 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Selectable 2WD / 4WD with Visco-Lok+ auto-locking front differential
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 29 x 9 x 14 in. (73.7 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 29 x 11 x 14 in. (73.7 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 72.4 x 68.5 in. (416.6 x 183.9 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 15.5 in. (39.4 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,869 lb (848 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Dunes
- 195 hp
- 72 in. width
- 22 in. (55.9 cm) of suspension travel
- Smart-Lok featuring 4WD TRAIL ACTIV mode
- 30 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum beadlock wheels
![desert-tan---carbon-black---can-am-red]()
![intense-blue]()
![triple-black]()
Run at the front of any pack with 3 of your friends, 195 horsepower & Smart-Lok™ differential featuring Trail Activ mode.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback / Rear: FOX† 3.0 PODIUM RC2† Piggyback
-
Suspension
Front: Trophy truck inspired double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate
-
Features
7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 72.7 x 68.5 in. (419.1 x 184.7 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,858 lb (843 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Performance
- Desert / Dunes
- 195 hp
- 72 in. width
- 22 in. (55.9 cm) of suspension travel
- Smart-Shox Technology, Smart-Lok featuring 4WD TRAIL ACTIV mode
- 30 in. Maxxis† Bighorn 2.0 tires on 14 in. cast-aluminum beadlock wheels
![desert-tan---carbon-black---can-am-red]()
![triple-black]()
BUILT FOR THE VICTORY LAP. Run at the front of any pack with 3 of your friends, 195 horsepower, Smart-Lok™ differential featuring Trail Activ mode and Smart-Shox semi-active suspension.
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD
-
Shocks
Front: FOX† 2.5 PODIUM Piggyback with bypass and Smart-Shox Technology / Rear: FOX† 3.0 PODIUM Remote reservoir with bypass and Smart-Shox Technology
-
Suspension
Front: Trophy truck inspired double A-arm with sway bar / Rear: 4-link TTX with sway bar
-
Protection
Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate
-
Features
7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - Maxxis Bighorn 2.0† 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 72.7 x 68.5 in. (419.1 x 184.7 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,877 lb (851 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 3.0 PODIUM† remote reservoir with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment) **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE heavy-duty full skid plate, Rear tow hook
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
-
-
Mud
- Performance
- 195 hp
- 72 in. width
- 22 in. (55.9 cm) of suspension travel
- Smart-Lok featuring 4WD MUD mode
- 30 in. ITP Cryptid† tires on 14 in. cast-aluminum beadlock wheels
![iron-gray---manta-green]()
FOR THE DEEP. Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges, it's the widest Maverick with 22 in. of suspension travel and armored 30 in. ITP Cryptid tires for the ultimate in mud performance
-
Differential
Lockable front differential with exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
-
Suspension
Front: Trophy truck inspired double arched A-arm with sway bar / Rear: 4-link TTX with sway bar and arched lower links
-
Protection
Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
-
Features
4,500-lb winch with synthetic rope, 7.6 in. digital display with keypad, New 850w magneto, X-package graphics/seats/signature, Rear tow hook
Engine Engine - TURBO RR
Type - 195 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in. (76.2 x 22.9 x 35.6 cm)
Rear Tires - ITP Cryptid 30 x 11 x 14 in. (76.2 x 27.9 x 35.6 cm)
Wheels - 14 in. (35.6 cm) cast-aluminum beadlock
Breaks Front - Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 74.2 x 68 in. (419.1 x 188.5 x 172.7 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,940 lb (880 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double arched A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Instrumentation - Lighter type DC outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate,
Warranty Factory - 6-months BRP limited warranty
Extended Service Terms - B.E.S.T. terms available for up to 30 months
-
Download spec sheet
Share
