2022Defender
-
Work
- Trail
- Visco-Lok† auto-locking front differential
- Rear differential with Turf mode
- Integrated front steel bumper
- 27 in. tires on 14 in. steel wheels
![tundra-green]()
DO IT ALL. Get exceptional work abilities & adaptible to any use at a price too good to pass up.
-
Engine
52 hp (41 lb-ft torque) on Rotax single cylinder HD7 engine / 65 hp (59 lb-ft torque) on Rotax V-twin HD9 engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD9
HD7
Engine displacement - 976
650
Type - HD7: 52 hp / 41 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7: PDrive primary CVT with engine braking and Electronic Drive Belt Protection
HD9: PRO-TORQ Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO Off / Work modes
Power Steering - N/A
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. steel
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD7: 1,475 lb (669.2 kg)
HD9: 1,479 lb (671 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L) Under dash (enclosed pocket) : 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

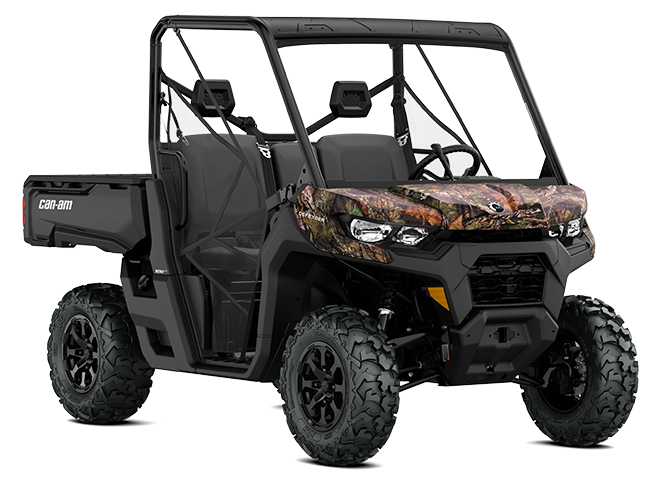

2022Defender DPS
-
Work
- Hunting
- Defender top features
- Visco-Lok† QE auto-locking front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![timeless-black]()
![oxford-blue]()
![tundra-green]()
TAKE THE REIGNS. Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn. Fill the adaptable storage, engage 4WD, & drive the best without stretching your wallet.
-
Engine
52 hp (41 lb-ft torque) on Rotax HD7 single cylinder engine / 65 hp (59 lb-ft torque) on Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD7
HD9
HD10
Engine displacement - 650
976
Type - HD7: 52 hp / 41 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7: PDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P
HD9-HD10: PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD7-HD9: XPS Trail Force 27 x 9 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in.
Rear Tires - HD7-HD9: XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - HD7-HD9: 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
HD10: 121 x 64 x 78 in. (307.1 x 162.5 x 198.1 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - HD7-HD9: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Estimated Dry Weight* - HD7: 1460 lb (662.3 kg)
HD9: 1541 lb (698.8 kg)
HD10: 1536.6 lb (697 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD7-HD9: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD7-HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

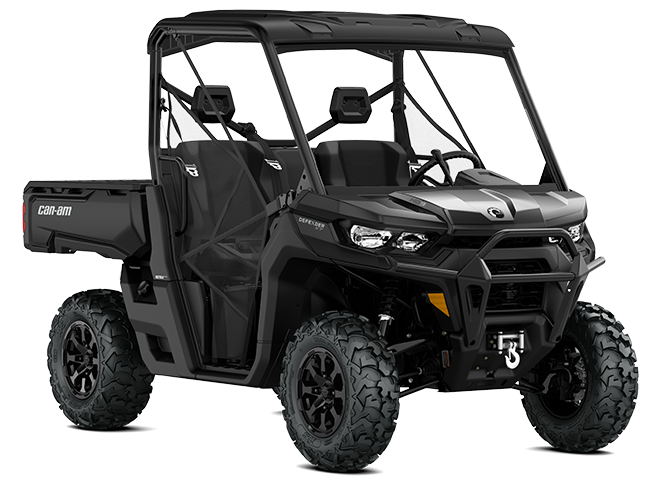

2022Defender XT
-
Work
- Hunting
- Defender DPS top features
- Brake holding mechanism
- 4,500-lb winch
- Full hard roof
- XT front bumper
![mossy-oak-break-up-country-camo]()
![timeless-black]()
![oxford-blue]()
![stone-gray]()
EQUIPPED TO GET IT DONE. Full exterior protection and 4,500 lbs factory-installed winch plus choice accessories from bumper to bumper, the Defender XT is ready when you are.
-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin engine / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat, flip-up and contoured bench to improve entrance/exit of the cab
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, XT trims
Engine Engine - HD10
HD9
Engine displacement - 976
Type - HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD9: XPS Trail Force 27 x 9 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in
Rear Tires - HD9: XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - HD9: 125.7 x 62 x 78 in. (319,4 x 157.5 x 198.1 cm)
HD10: 125.7 x 64 x 80 in. (319,4 x 162.5 x 203.2cm)
Ground Clearance - HD9: 11 in. (28 cm)
HD10: 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD9: 1606 lb (728,5 kg)
HD10: 1600.6 lb (726 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - HD9: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seat for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender DPS CAB
-
Work
- Trail
- Defender DPS top features
- Ventilation and heating system
- Full painted doors with electric opening windows
- Full hard roof
- Integrated front steel bumper
![tundra-green]()
COMPLETELY COVERED. Fully sealed cab for less dust, more protection from the elements—your weatherproof workhorse has arrived.
-
Engine
65 hp (59 lb-ft torque) on Rotax HD9 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass
Engine Engine - HD9
Engine displacement - 976
Type - 65 hp/59 lb-ft , Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Dimensions L x W x H - 121 x 65 x 79 in (307.1 x 165.1 x 201 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage, ROPS approved
Estimated Dry Weight* - 1,820 lb (825.5 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with swaybar/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. wide digital display: speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt and 4 x 4 indicator, front and rear diff. lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter-type DC outlet in console (20 A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring wide visibility and LED tail lights
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate, full hard roof with liner and interior dome light, full color match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, rear glass window
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender Limited
-
Hunting
- Trail
- Defender DPS CAB top features
- Auto heating, venting and air conditioning (HVAC) system
- 7.6 in. digital display with keypad
- XT front bumper
- 27 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![stone-gray]()
HEATING, VENTING & AIR CONDITIONING. Work & play in complete comfort, loaded with the features like front electric window, flip-up winshield, and capability you'd expect from our most refined all-weather workhorse.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 7.6 in. digital display with keypad, Limited trims, Signature LED
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 126 x 65 x 79 in. (319 x 165.1 x 201 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage, ROPS approved
Estimated Dry Weight* - 1,928 lb (874.5 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)/California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,200 lb (544 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad: speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt and 4 x 4 indicator, front and rear diff. lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter-type DC outlets in the console (10 A) and two lighted USB ports in the dash storage (10 A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring wide visibility, signature LED and LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, full hard roof with liner and interior dome light, full doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, rear glass window, panoramic mirror
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

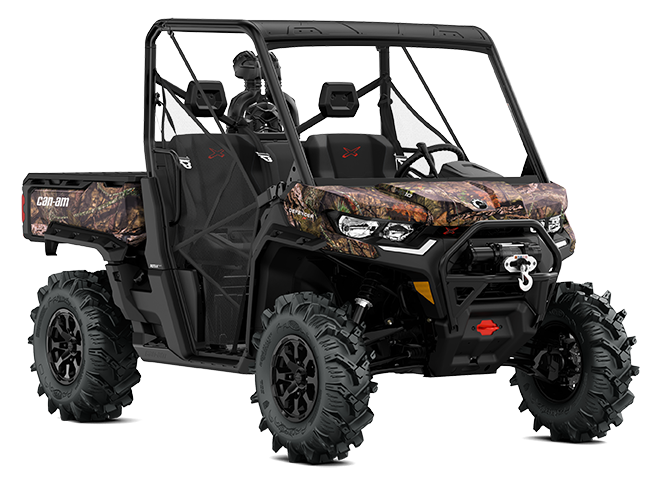

2022Defender X mr
-
Mud
- Hunting
- Smart-Lok featuring 4WD MUD mode
- Strategically positioned engine air intake and CVT inlet / outlet
- Mudguards
- Heavy-duty front steel bumper, Aluminum rock sliders
- 30 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![liquid-titanium---magma-red]()
FORCE OF NATURE. Torture-tested to dominate changeable conditions, this workhorse is mud-ready from winch to tail, including snorkeled intakes and 15 in. (38.1 cm) of ground clearance.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
Relocated 4,500-lb winch with synthetic rope and roller fairlead
-
Features
HMWPE full skid plate, 7.6 in. digital display with keypad, X mr trims, Signature LED
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic single-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 129.4 x 64 x 82 in. (328.6 x 162.6 x 208.3 cm)
Wheel Base - 83 in. (211.5 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,697.6 lb (770 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.2 gal (61.3 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,500 lb (680 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Two lighter type DC outlets, one in the console (20-A) and one in the under dash storage (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender MAX
-
Work
- Trail
- Visco-Lok† auto-locking front differential
- 11 in. Rear differential with Turf mode(28 cm) ground clearance
- Integrated front steel bumper
- 27 in. tires on 14 in. cast-aluminum wheels
![tundra-green]()
DO IT ALL (AND THEN SOME). Defender MAX is well-equipped from standard to tackle your jobs. Room for 6, 4WD, 1-year warranty, and a punchy Rotax® powertrain. And it's a six-seater that doesn't compromise on turning radius.
-
Engine
52 hp (41 lb-ft torque) on Rotax HD7 single cylinder engine / 65 hp (59 lb-ft torque) on Rotax HD9 V-twin engine
-
Seat
Dual VERSA-PRO bench seats
-
Features
HMWPE central skid plate
Engine Engine - HD9
HD7
Engine displacement - 976
650
Type - HD7: 52 hp / 41 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled
HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - HD7: PDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P
HD9: PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - N/A
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 11 in. (28 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD7: 1,710 lb (775.6 kg)
HD9: 1,735 lb (787.1 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 3.1 gal (11.7 L) Under dash (enclosed pocket) : 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Double A-arm / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

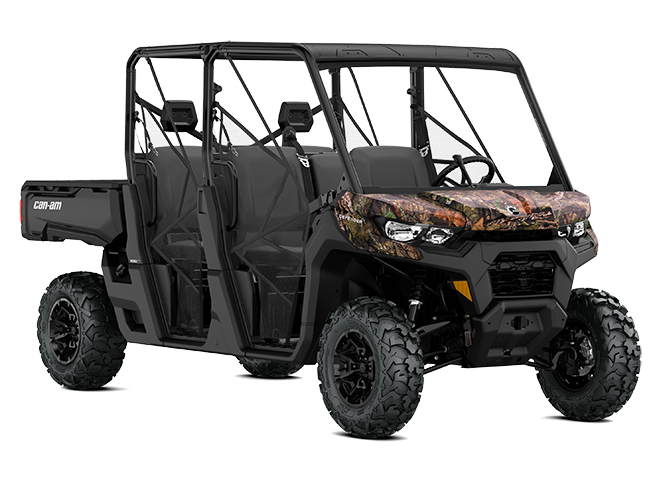

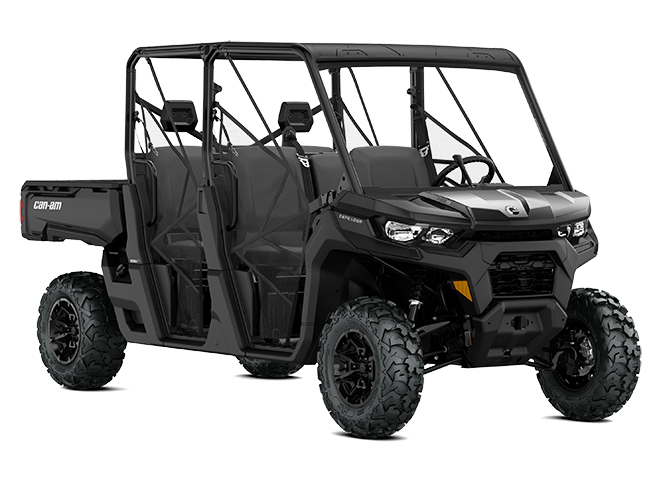

2022Defender MAX DPS
-
Work
- Hunting
- Defender MAX top features
- Visco-Lok† QE auto-locking front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![timeless-black]()
![oxford-blue]()
![tundra-green]()
TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage, Visco-Lok QE 4WD—and get it done.
-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bench seats
-
Features
HMWPE central skid plate
Engine Engine - HD9
HD10
Engine displacement - 976
Type - HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD9: XPS Trail Force 27 x 9 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in.
Rear Tires - HD9: XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - HD9: 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm)
HD10: 153.4 x 64 x 77.5 in. (389.6 x 162.5 x x 196.9 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD9: 11 in. (28 cm)
HD10: 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD9: 1,771 lb (803.2 kg)
HD10: 1,771.2 lb (803.4 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 11.1 gal (42.1 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD9: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

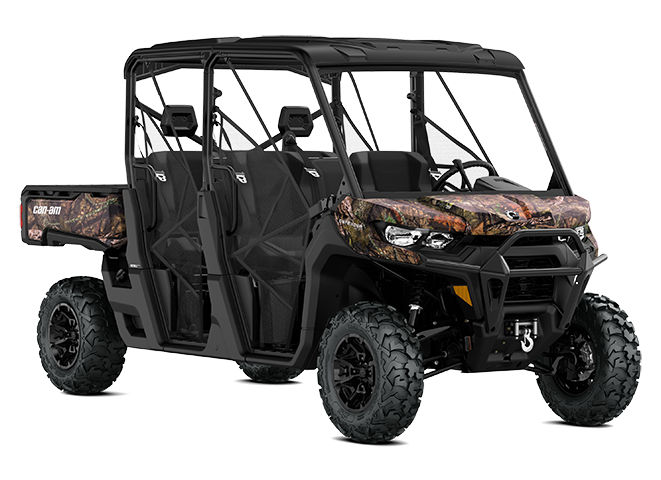

2022Defender MAX XT
-
Work
- Hunting
- Defender MAX DPS top features
- Brake holding mechanism
- 4,500-lb winch
- 2-piece full hard roof
- XT front bumper
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![stone-gray]()
EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires.
-
Engine
65 hp (59 lb-ft torque) Rotax HD9 V-twin / 82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, XT trims
Engine Engine - HD10
HD9
Engine displacement - 976
Type - HD9: 65 hp / 59 lb-ft , Rotax® 976 cc, V-twin, liquid cooled
HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - HD9: XPS Trail Force 27 x 9 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 9 x 14 in.
Rear Tires - HD9: XPS Trail Force 27 x 11 x 14 in.
HD10: Maxxis Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - HD9: 158.3 x 63.5 x 76 in. (402 x 161.2 x 193cm)
HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - HD9: 11 in. (28 cm)
HD10: 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - HD9: 1,902 lb (862.7 kg)
HD10: 1,902.6 lb (863 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,750 lb (793,8 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - HD9: Double A-arm / 10 in. (25.4 cm) travel
HD10: Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - HD9: TTA with external sway bar / 10 in. (25.4 cm) travel
HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Work
- Trail
- 7.6 in. digital display with keypad
- Lone Star trims
- 2-piece full hard roof
- Heavy-duty front steel bumper, Aluminum rock sliders
- 28 in. tires on 14 in. cast-aluminum wheels
![night-black]()
BUILT FOR HIGHER GROUND. The ultimate Defender MAX, upgraded from top to bottom: 6-person seating, industry-leading Rotax HD10 engine, unique interior trim—and tons of factory extras.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster bench seats with reinforced seat skin featuring LONE STAR package trims and adjustable driver seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 7.6 in. digital display with keypad, Lone Star trims, Signature LED
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158.9 x 65 x 79.9 in. (403.6 x 165.1 x 203.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,929 lb (875 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,730 lb (785 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring LONE STAR package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Work
- Hunting
- Defender MAX Lone Star top features
- Auto heating, venting and air conditioning (HVAC) system
- Full painted doors with electric opening windows in front
- JL audio roof
- Panoramic mirror
![night-black]()
BEAUTY MEETS THE BEAST. An industry’s exclusive Texas Edition package with HVAC and JL Audio roof. For extreme cold or blazing heat, it’s loaded with exclusive features where luxury meets utility.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit and rear glass window, 7.6 in. digital display with keypad, Lone Star trims, Signature LED, Panoramic mirror
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis† Bighorn 2.0† 28 x 9 x 14 in.
Rear Tires - Maxxis† Bighorn 2.0† 28 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159 x 65 x 80.6 in. (403.7 x 165.1 x 204.7 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage, ROPS approved
Estimated Dry Weight* - 2,402 lb (1,089.3 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg)/California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1,134 kg)
Payload Capacity - 1,300 lb (590 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad: speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt and 4 x 4 indicator, front and rear diff. lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter type DC outlets in the console (10 A) and two lighted USB port in the dash storage (10 A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Lone Star package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, aluminum rock sliders, HMWPE full skid plate, JL Audio roof with liner, full color match doors with electric opening windows in front, 3-position full glass tilt-up windshield with wiper/washer kit, rear glass window, panoramic mirror
Hitch Type - 2 in. hitch receiver
Warranty Factory - 2 in. hitch receiver
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

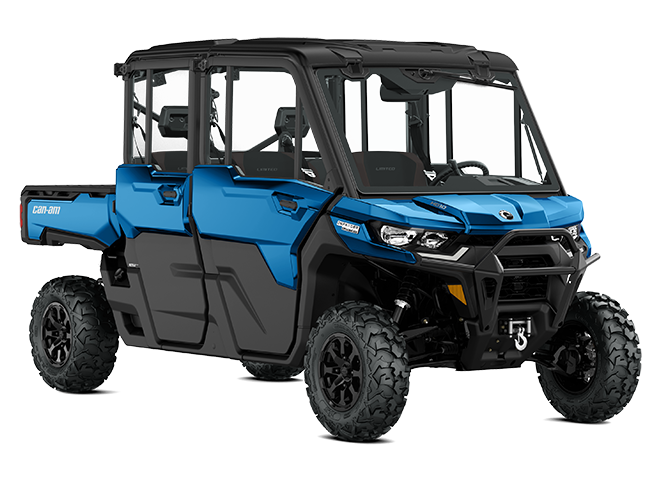

2022Defender MAX Limited
-
Hunting
- Trail
- Defender MAX XT top features
- Auto heating, venting and air conditioning (HVAC) system
- Full painted doors with electric opening windows in front
- 7.6 in. digital display with keypad
- Panoramic mirror
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![stone-gray]()
COMFORT FOR THE WHOLE CREW. Standard 3-mode air conditioning turns the Defender MAX into the perfect way to ensure up to 6 people can work, travel and adapt as the conditions demand.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 7.6 in. digital display with keypad, Limited trims, Signature LED, Panoramic mirror
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - XPS Trail Force 27 x 9 x 14 in.
Rear Tires - XPS Trail Force 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 158 x 65 x 79 in. (402 x 165.1 x 201 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12 in. (30.5 cm)
Chassis Cage - Profiled cage, ROPS approved
Estimated Dry Weight* - 2,337 lb (1,060 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 12.7 gal (48.1 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Under dash: 1.6 gal (6.1 L) Armrests and cup holders: 0.9 gal (3.5 L) Interior doors: 0.8 gal (3.4 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1300 lb (590 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad: speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt and 4 x 4 indicator, front and rear diff. lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850-W
Instrumentation - Lighter-type DC outlets in the console (10 A) and two lighted USB ports in the dash storage (10 A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring wide visibility, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, full hard roof with liner and interior dome light, full color match doors with electric opening windows in front, 3-position full glass tilt-up windshield with wiper/washer kit, rear glass window, panoramic mirror
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-

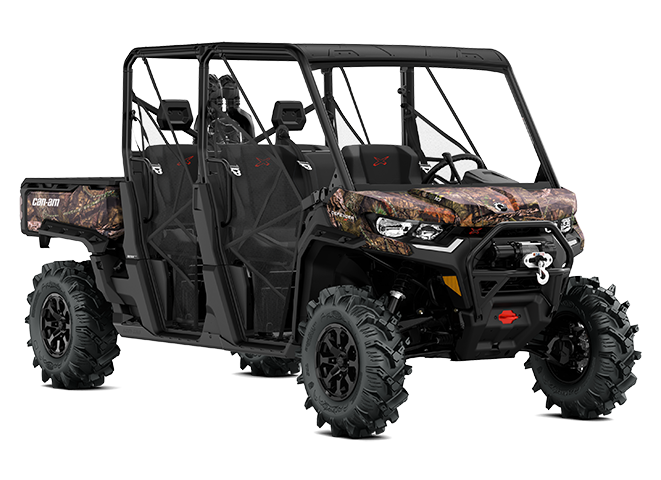

2022Defender MAX X mr
-
Mud
- Hunting
- Smart-Lok featuring 4WD MUD mode
- Strategically positioned air intake and CVT inlet / outlet
- Relocated 4,500-lb winch with synthetic rope
- Heavy-duty front steel bumper, Aluminum rock sliders
- 30 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![liquid-titanium---magma-red]()
FORCE OF NATURE. Defender MAX X mr is the ultimate mud workhorse: 6 seats, Rotax HD10 V-Twin engine, Smart-Lok™ Differential, 15 in. ground clearance, a winch, and more.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
Dual VERSA-PRO bolster reinforced bench seats, adjustable driver seat & flip-up passenger seat
-
Accessories
Relocated 4,500-lb winch with synthetic rope and roller fairlead
-
Features
HMWPE full skid plate, 7.6 in. digital display with keypad, X mr trims, Signature LED
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok * technology. *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 161.9 x 64 x 82 in. (411.2 x 162.6 x 208.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 15 in. (38.1 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,999 lb (907.7 kg)
Cargo Box Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,630 lb (739 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 6
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - Relocated 4,500-lb (2,041 kg) winch with synthetic rope and roller fairlead
Seat - Dual VERSA-PRO bolster bench seats for additional lateral support, passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender 6x6 DPS
-
Hunting
- Work
- Industry-leading 4.5 x 6 ft cargo box
- Industry-leading 3,000 lb towing capacity
- Visco-Lok QE front differential
- Dynamic power steering
- 27 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![white]()
CAN-AM OFF-ROAD REVOLUTION. Six wheels, unlimited potential. Get the most traction, load-carrying, power, and capability ever engineered into an off-road workhorse.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 / 9 / 14 in.
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 154.1 x 64 x 78 (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1,945 lb (882 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 10.4 gal (39.5 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender 6x6 XT
-
Work
- Hunting
- Defender 6x6 DPS top features
- Hydraulic power tilt bed
- 4,500-lb winch
- XT front bumper
- Full hard roof
![oxford-blue]()
BETTER WITH 6. Our most work-focused 6x6 workhorse, with added features to Get. It. Done. Standard power tilt and dump bed, 4,500-lb winch, and XT body protection.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, XT trims
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable 4WD / 6WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 27 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159.7 x 64 x 80 (405.7 x 162.5 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 2,077 lb (942 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 3,000 lb (1360.8 kg)
Payload Capacity - 1,570 lb (712kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender 6x6 Limited
-
Work
- Hunting
- Defender 6x6 XT top features
- Auto heating, venting and air conditioning (HVAC) system
- Full painted doors with electric opening windows in front
- 7.6 in. digital display with keypad
- Panoramic mirror
![oxford-blue]()
WEATHER IT ALL IN COMFORT WITH HVAC. Flooding or herding, whatever mountain you’ve got to climb, here's the pinnacle of off-road comfort. Bale that hay in the longest cargo bed in the industry. Ease any task with flatbed conversion, power tilt bed, low speed settings and a leading towing capacity to tame the toughest terrain.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 7.6 in. digital display with keypad, Limited trims, Signature LED, Panoramic mirror
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L/H/N/R/P
Drive Train - Selectable 4WD/6WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic Hill Descent Control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis† Bighorn 2.0† 27 x 9 x 14 in.
Rear Tires - Maxxis† Bighorn 2.0† 27 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159.7 x 65 x 80 in. (405.7 x 165.1 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage, ROPS approved
Estimated Dry Weight* - 2,370 lb (1,074.8 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg)/California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 16.9 gal (63.9 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L)
Towing Capacity - 3,000 lb (1,360.8 kg)
Payload Capacity - 1,570 lb (712kg)
Fuel Capacity - 10.6 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar/10 in. (25.4 cm) travel
Front Shocks - Twin tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad: speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt and 4 x 4 indicator, front and rear diff. lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850 W
Instrumentation - Lighter type DC outlets in the console (10 A) and two lighted USB port in the dash storage (10 A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500 lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, full hard roof with liner and interior dome light, full color match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, rear glass, panoramic mirror
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender Pro DPS
-
Hunting
- Work
- Industry-leading 4.5 x 6 ft cargo box with easy flat-bed conversion and dump box
- Lower box storage of 83.6 gal (316.5 L)
- Visco-Lok QE front differential
- Dynamic power steering
- 28 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![white]()
PERFECT PLATFORM. The world’s best Can-Am with a 6 x 4.5 ft bed and the torque to haul like nothing else off-road. On the job, farm, ranch, hunting trip and leisure rides, Defender PRO was built to stretch what a side-by-side vehicle can do.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bench seat
-
Features
HMWPE central skid plate
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - N/A
Dimensions L x W x H - 154.1 x 64 x 78 (391.5 x 162.5 x 198.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1833 lb (831.5 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 94 gal (356 L) Under dash: 6 gal (22.8 L) Dash: 1.8 gal (6.9 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 0.9 gal (3.5 L) 83.6 gal (316.5 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (18 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlet in console (20-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - N/A
Seat - VERSA-PRO bench seat with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Integrated front steel bumper, HMWPE central skid plate
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender Pro XT
-
Work
- Hunting
- Defender PRO DPS top features
- 4,500-lb winch
- Total storage of 100.5 gal (380.4 L)
- XT front bumper, Full hard roof
- 28 in. tires on 14 in. cast-aluminum wheels
![timeless-black]()
![oxford-blue]()
EXTRA PAYLOAD ON A RIG THAT NEVER QUITS. Our best workhorse, and then some: 4,500 lb winch, rugged bumper and VERSA-PRO seats ensure every job will be done with strength to spare.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, XT trims
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159.7 x 64 x 80 (405.7 x 162.5 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1960 lb (889 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1700 lb (771 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm / 11 in. (27.9 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 11 in. (27.9 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 4.5 in. (11.4 cm) wide digital display: Speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, Full hard roof
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Work
- Hunting
- 7.6 in. digital display with keypad
- Lone Star trims
- Full hard roof
- Heavy-duty front steel bumper, Aluminum rock sliders
- 28 in. tires on 14 in. cast-aluminum
![night-black]()
LIKE A POWERLIFTER WITH WHEELS. Through thick and thicker, there’s nothing you can’t bale or haul with the industry longest 6 x 4.5 ft cargo bed. Get grain across the toughest terrain in a quieter, comfortable ride. Weather, or not, its day isn’t done until you say it is.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 7.6 in. digital display with keypad, Lone Star trims, Signature LED
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front Differential
Driving Assistance - Electronic Hill Descent Control ECO™ / ECO™ Off / Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0† 28 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0† 28 x 11 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 160.6 x 65 x 80 in (407.2 x 165.1 x 203.3 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Profiled cage. ROPS approved
Estimated Dry Weight* - 1995 lb (905 kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Lower box storage 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,650 lb (748 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar / 10 in. (25.4 cm) travel
Front Shocks - Twin tube gas charged shocks
Rear Suspension - Arched TTA with external sway bar / 10 in. (25.4 cm) travel
Rear Shocks - Twin tube gas charged shocks
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO / ECO Off / Work modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 650-W
Instrumentation - Lighter type DC outlets in the console (10-A) and two lighted USB port in the dash storage (10-A)
Lighting - 140 W lighting output from four 35-W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring LONE STAR package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - Heavy-duty front steel bumper, HMWPE full skid plate, Full hard roof, Aluminum rock sliders
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2022Defender PRO Limited
-
Work
- Hunting
- Defender PRO XT top features
- Auto heating, venting and air conditioning (HVAC) system
- Full painted doors with electric opening windows in front
- 7.6 in. digital display with keypad
- Limited trims
![oxford-blue]()
![stone-gray]()
WORK LIKE A BOSS. Everything that makes the Defender great, plus the world's first automatic climate control (A/C, ventillation and heating) system, full cab, power driver / passenger windows, and the most quiet, plush off-road handling. If you can dream it, the Defender PRO Limited does it.
-
Engine
82 hp (69 lb-ft torque) Rotax HD10 V-twin engine
-
Seat
VERSA-PRO bolster reinforced bench seat, adjustable driver seat & flip-up passenger seat
-
Accessories
4,500-lb winch with roller fairlead
-
Features
HMWPE full skid plate, 3-position full glass tilt up windshield with wiper/washer kit, Rear glass, 7.6 in. digital display with keypad, Limited Trims, Signature LED
Engine Engine - HD10
Engine displacement - 976
Type - 82 hp/69 lb-ft, Rotax® 976 cc, V-twin, liquid-cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P
Drive Train - Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential
Driving Assistance - Electronic hill descent control ECO™/ECO™ Off/Work modes
Power Steering - Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis† Bighorn 2.0† 28 x 9 x 14 in.
Rear Tires - Maxxis† Bighorn 2.0† 28 x 11 x 14 in
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear - Dual 220 mm ventilated disc brakes with hydraulic twin-piston calipers
Technology - Brake holding mechanism
Dimensions L x W x H - 159.7 x 65 x 79.5 in. (405.7 x 165.1 x 202.1 cm)
Wheel Base - 115.5 in. (294 cm)
Ground Clearance - 12.5 in. (31.8 cm)
Chassis Cage - Profiled cage, ROPS approved
Estimated Dry Weight* - 2284lb (1036.5kg)
Cargo Box Dimensions - 72 x 54.5 x 10 in. (180.3 x 138.4 x 25.4 cm)
Cargo Box Capacity - 1,000 lb (454 kg)/California only: 600 lb (272.2 kg)
Tailgate Load Capacity - 250 lb (113.4 kg)
Storage Capacity - Total: 100.5 gal (380.4 L) Under dash: 6 gal (22.8 L) Waterproof and removable box under passenger seat: 5.6 gal (21 L) Dash: 2 gal (7.7 L) Water-resistant and removable toolbox: 1.7 gal (6.3 L) Armrests and cup holders: 1.6 gal (6.1 L) Lower box storage: 83.6 gal (316.5 L)
Towing Capacity - 2,500 lb (1134 kg)
Payload Capacity - 1,360 lb (617 kg)
Fuel Capacity - 10.6 gal (40 L)
Person Capacity - 3
Suspensions Front Suspension - Arched double A-arm with sway bar/10 in. (25.4 cm) travel
Front Shocks - Twin-tube gas-charged shocks
Rear Suspension - Arched TTA with external sway bar/10 in. (25.4 cm) travel
Rear Shocks - Twin-tube gas-charged shocks
Feature Gauge - 7.6 in. wide digital display with keypad: speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt and 4 x 4 indicator, front and rear diff. lock indicators, diagnostics, clock, battery voltage, engine temperature
Battery - 12-V (30 amp/h)
Magneto - 850 W
Instrumentation - Lighter-type DC outlets in the console (10 A) and two lighted USB ports in the dash storage (10 A)
Lighting - 140 W lighting output from four 35 W reflectors ensuring a wide visiblity, signature LED and LED tail lights
Winch - 4,500-lb (2,041 kg) winch with roller fairlead
Seat - VERSA-PRO bolster bench seats for additional lateral support with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims and contoured bench to improve entrance/exit of the cab
Steering Wheel - Adjustable tilt steering
Protection - XT front bumper, HMWPE full skid plate, full hard roof with liner and interior dome light, full color match doors with electric opening windows, 3-position full glass tilt-up windshield with wiper/washer kit, rear glass window, panoramic mirror
Hitch Type - 2-in hitch receiver
Warranty Factory - 1-year BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
Download spec sheet
Share
