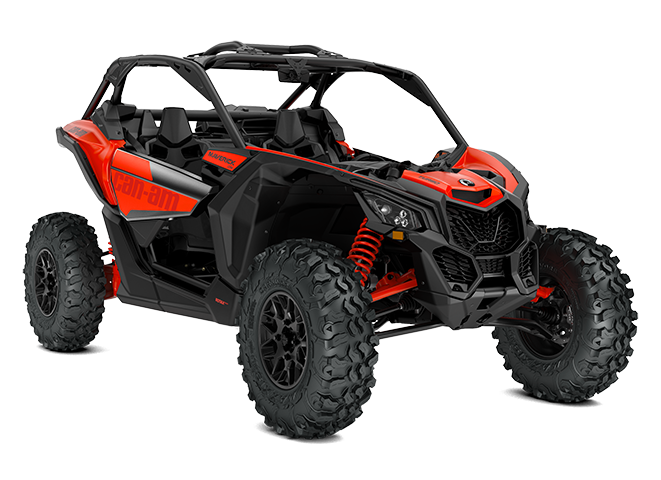

Performance
- Desert / Trail
- 120 hp (8.1 hp / 100lbs)
- Smart-Lok technology
- Quarter-doors
- Integrated front bumper
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
64 in.
-
Features
650w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO
Engine displacement - 900
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,481 lb (671.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 650 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-

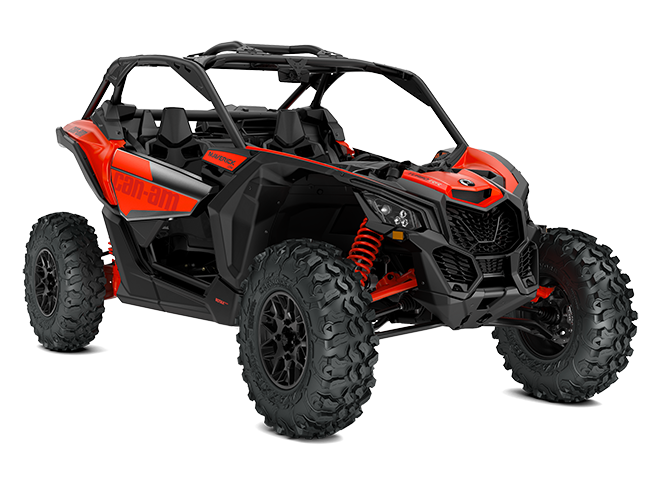

Performance
- Desert / Trail
- 200 hp (13.5 hp / 100lbs)
- Quarter-doors
- Integrated front bumper
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
64 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,481 lb (671.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-

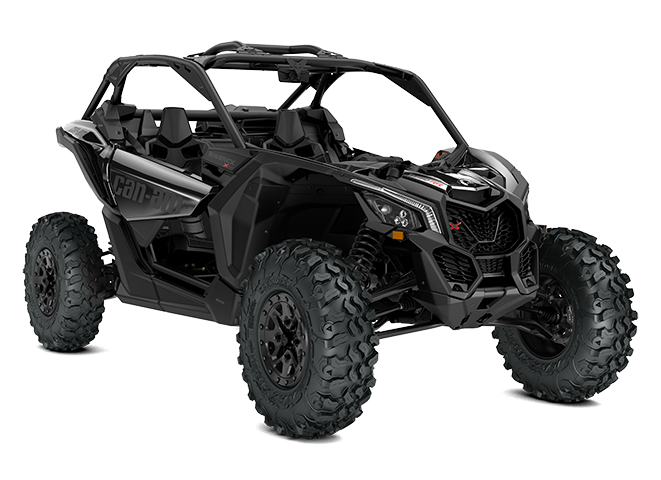

Performance
- Desert / Trail
- Maverick X3 DS Turbo RR top features
- FOX† 2.5 PODIUM RC2† Piggyback shocks
- 7.6 in. digital display with keypad
- X-package graphics/seats/signature
- 30 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
64 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM RC2† Piggyback
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front differential with exclusive Smart-Lok technology. True 4-mode traction system: 2WD/4WD with front diff. lock/4WD TRAIL ACTIV/4WD TRAIL
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.7 in. (335.3 x 162.5 x 166.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,501 lb (680.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-

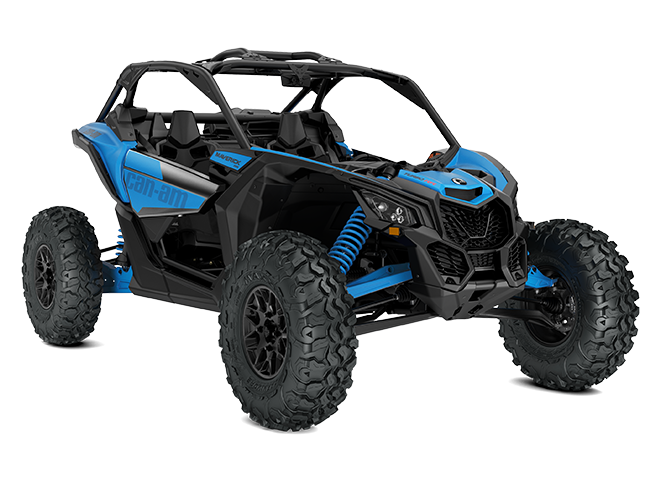

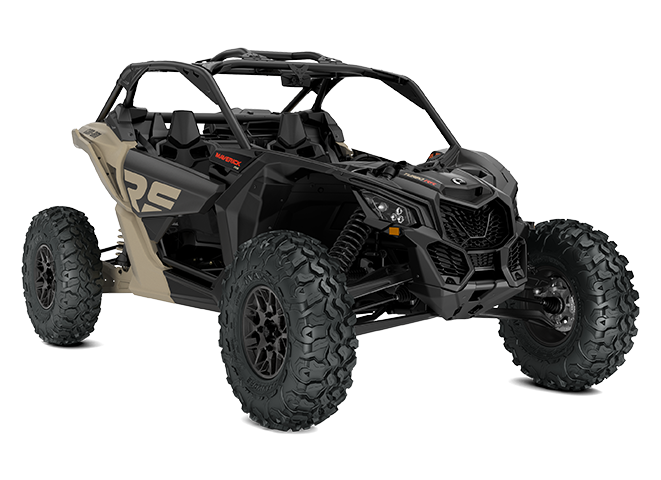

Performance
- Desert / Dunes
- 200 hp (12.3 hp / 100lbs)
- Quarter-doors
- Integrated front bumper
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
72 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.4 x 68.5 in. (335.3 x 183.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 15.5 in. (39.4 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,620 lb (735 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-

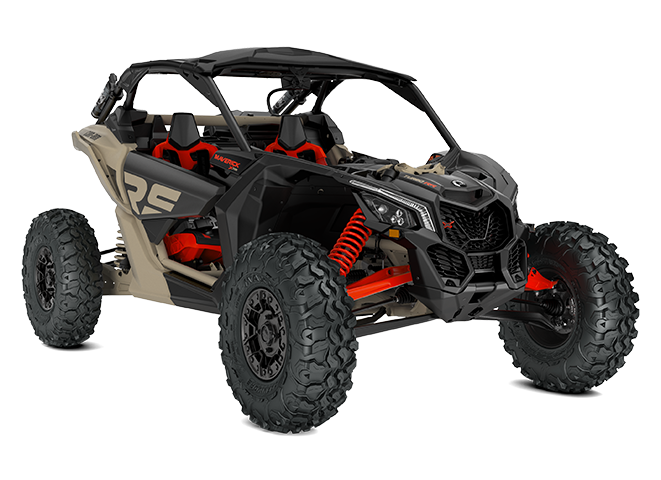

Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- FOX† 3.0 PODIUM RC2† shocks with bypass, Trophy truck inspired double A-arms
- Up to 24 in. of suspension travel
- Full roof
- 32 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
Up to 24 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback / Rear: FOX† 3.0 PODIUM RC2† Piggyback with bypass
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,627 lb (738 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24 in (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- Smart-Shox Technology, Trophy truck inspired double A-arms
- Up to 24 in. of suspension travel
- Full roof
- 32 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
Up to 24 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM Piggyback with bypass and Smart-Shox Technology / Rear: FOX† 3.0 PODIUM Remote reservoir with bypass and Smart-Shox Technology
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,646 lb (747 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24 in (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM† remote reservoir with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment) **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode, Smart-Shox** Suspension Mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Rock
- Performance
- 200 hp (12.2 hp / 100lbs)
- Arched double A-arms
- Quarter-doors
- Front bumper, Rock sliders
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
64 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE skidplates (Full heavy duty with differential / Under bumper / Front and rear suspension arm), Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
18 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 30 x 10 x 14 in.
Rear Tires - Maxxis Liberty† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 65.6 x 66 in. (337.8 x 166.6 x 167.6 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,642 lb (744.8 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 18 in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18 in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Quarter-doors, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with Differential / Under bumper / Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Rock
- Performance
- 200 hp (11 hp / 100lbs)
- Trophy truck inspired arched double A-arms
- Half doors, Aluminum roof
- Front bumper, Rock sliders, Intrusion bar
- 32 in. tires on 15 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE skidplates (Full heavy duty with differential / Under bumper / Front and rear suspension arm), Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
Up to 24 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback / Rear: FOX† 3.0 PODIUM RC2† Piggyback
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 32 x 10 x 15 in.
Rear Tires - Maxxis Liberty† 32 x 10 x 15 in.
Wheels - 15 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 134.5 x 72.8 x 68.5 in. (341.6 x 184.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,811 lb (821.5 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Trophy truck inspired Arched double A-arm with sway bar / 22 in. (55.9 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 24 in. (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Aluminum roof, Intrusion bar, 4-point harness with shoulder pads, UHMWPE rock sliders, HMWPE skidplates, Full heavy duty with Differential / Under bumper / Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Mud
- Performance
- 200 hp (12 hp / 100lbs)
- Arched double A-arms
- Half doors
- Front bumper
- 30 in. tires on 14 in. cast-aluminum with machined finish wheels
-
Width
64 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Front and rear tow hooks, HMWPE full skid plate, Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
18 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum with machined finish
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 66.7 x 66.1 in. (337.8 x 169.4 x 167.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,664 lb (754.8 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 18 in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18 in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Mud
- Performance
- 200 hp (11.6 hp / 100lbs)
- Trophy truck inspired arched double A-arms
- Half doors
- Front bumper
- 30 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Front and rear tow hooks, HMWPE full skid plate, Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132.3 x 74.2 x 68 in. (336 x 188.5 x 172.7 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22 in (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Trail
- 120 hp (7 hp / 100lbs)
- FOX† 2.5 PODIUM QS3 Piggyback shocks
- Quarter-doors
- Integrated front bumper
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
64 in.
-
Features
650w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO
Engine displacement - 900
Type - 120 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 650 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Trail
- 200 hp (11.6 hp / 100lbs)
- Quarter-doors
- Integrated front bumper
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
64 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,726 lb (782.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Trail
- Maverick X3 MAX DS Turbo RR top features
- FOX† 2.5 PODIUM RC2† Piggyback shocks
- 7.6 in. digital display with keypad
- X-package graphics/seats/signature
- 30 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
64 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM RC2† Piggyback
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 66 in. (416.6 x 162.5 x 167.6 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,766 lb (801 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Dunes
- 200 hp (10.7 hp / 100lbs)
- Quarter-doors
- Integrated front bumper
- 30 in. tires on 14 in. cast-aluminum wheels
-
Width
72 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 72.4 x 68.5 in. (416.6 x 183.9 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 15.5 in. (39.4 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,869 lb (848 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 4.5 in. (11.4 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO™ mode, seat belt and 4 x 4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- 4-point harness with shoulder pads
- FOX† 3.0 PODIUM RC2† shocks with bypass, Trophy truck inspired double A-arms
- Full roof
- 32 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback / Rear: FOX† 3.0 PODIUM RC2† Piggyback
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 72.7 x 68.5 in. (419.1 x 184.7 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,858 lb (843 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- 4-point harness with shoulder pads
- Smart-Shox Technology, Trophy truck inspired double A-arms
- Full roof
- 32 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM Piggyback with bypass and Smart-Shox Technology / Rear: FOX† 3.0 PODIUM Remote reservoir with bypass and Smart-Shox Technology
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Rear Tires - Maxxis Carnivore† 32 x 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 72.7 x 68.5 in. (419.1 x 184.7 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,877 lb (851 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 3.0 PODIUM† remote reservoir with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment) **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode, Smart-Shox** Suspension Mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
-
Mud
- Performance
- 200 hp (10.3 hp / 100lbs)
- Trophy truck inspired arched double A-arms
- Half-doors
- Front bumper
- 30 in. tires on 14 in. cast-aluminum beadlock wheels
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Front and rear tow hooks, HMWPE full skid plate, Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
FOX† 2.5 PODIUM Piggyback with QS3†
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - PDrive primary and Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 11 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 165 x 74.2 x 68 in. (419.1 x 188.5 x 172.7 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,940 lb (880 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L) Glove box: 1.6 gal (6.2 L) Central console: 1.1 gal (4.1 L) Cup holders: 0.3 gal (1.1 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. (19.3 cm) wide digital display with keypad: Speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT / ECO modes, seat belt and 4 x4 indicator, front and rear diff lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode
Magneto - 850 W
Instrumentation - Lighter type DC Outlet in central console
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED headlights and tail lights with unique Can-Am LED signature
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
COOKIE USE
This site uses cookies to ensure you have the best experience. By browsing this site, you are agreeing to our use of cookies in accordance with our Privacy Policy. Find out more on cookies and how to manage your settings on our Cookie Policy.
