2022Outlander
-
Work
- Trail
- Recreational Riding
- LinQ quick-attach system
- 26 in. tires on 12 in. steel wheels
![viper-red]()
PERFORMANCE BEYOND ITS PRICE. The most capable Outlander ever, with wider stance, better handling & class-leading power for jobs and thrilling rides alike.
-
Engine
62 hp Rotax 650 V-twin engine / 78 hp Rotax 850 V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 650
850
Engine displacement - 650
850
Type - 650: 62HP, Rotax 649.6 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok auto-locking front Differential
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in.
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in.
Wheels - 12-in. steel
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 650: 749 lb (341kg)
850: 800 lb (363 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander DPS
-
Trail
- Work
- Hunting
- Tri-mode dynamic power steering
- 26 in. tires on 14 in. cast-aluminum wheels
![granite-gray]()
Take command of unmatched all-terrain performance with the new 2020 Outlander DPS ATV. Wider, revised suspension makes the most of legendary Rotax power and tows up to 1,650 lbs (750 kg). When you're ready to gear up, load the cargo racks and go!
-
Engine
62 hp Rotax 650 V-twin engine / 78 hp Rotax 850 V-twin engine and Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 650
850
Engine displacement - 650
850
Type - 650: 62HP, Rotax 650 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 650: 749 lb (341kg)
850: 800 lb (363 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-

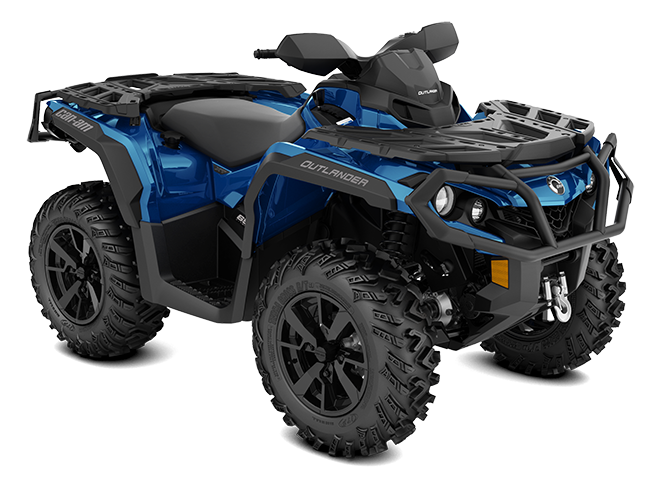

2022Outlander XT
-
Trail
- Work
- Hunting
- Heavy-duty front & rear bumpers
- Handlebar wind deflectors
- 3,500-lb winch
- 26 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![boreal-green]()
THE EXTRAS COME STANDARD. More exterior protection, upgraded bumpers, and winch ensure it’s factory-fit for your next adventure.
-
Engine
62 hp Rotax 650 V-twin engine / 78 hp Rotax 850 V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes / 91 hp Rotax 1000R V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 650
1000R
850
Engine displacement - 650
1000
850
Type - 650: 62HP, Rotax 650 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850-1000R: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121.9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 650: 749 lb (341kg)
850: 800 lb (363 kg)
1000R: 826 lb (375 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
-
Hunting
- Work
- Trail
- Outlander XT top features
- Reinforced seat skin, Heated grips and throttle
- 230-W lighting from headlights
- Aluminum skid plates
- 26 in. tires on 12 in. cast-aluminum wheels

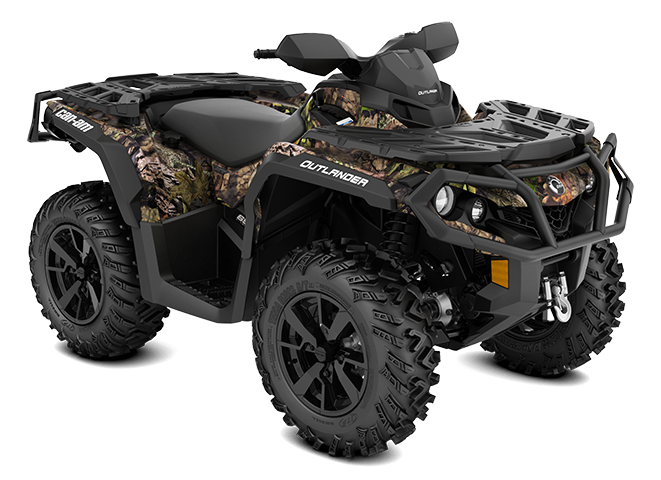

![mossy-oak-break-up-country-camo]()
Exclusive Mossy Oak Break-Up Country camouflage, 26 in. Carlisle ACT HD 6-ply tires and High-strength, multifunction racks with LinQ™ quick-attach accessory system will have you itching to take the Outlander Mossy Oak Hunting Edition out scouting. Wider, revised suspension makes the most of legendary Rotax power.
-
Engine
62 hp Rotax 650 V-twin engine
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Protection
Front, central & footwell aluminum skid plates, A-arms & TTI HMWPE protectors, Handlebar wind deflectors
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 650 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT HD 26 x 8 x 12 in.
Rear Tires - Carlisle† ACT HD 26 x 10 x 12 in.
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121.9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 12 in. (30.5 cm)
Estimated Dry Weight* - 749 (341 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Front, central & footwell aluminum skid plates, A-arms & TTI HMWPE protectors, Heated grips & throttle, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander XT-P
-
Performance
- Trail
- Recreational Riding
- Outlander XT top features
- FOX† 1.5 PODIUM QS3† shocks, Visco-4Lok† front differential
- Aluminum taper-profile handlebar with full wrap handguards
- 26 in. tires on 14 in. cast-aluminum beadlock wheels
![iron-gray--black---neo-yellow]()
Take command of unmatched all-terrain performance with the new Outlander XT-P ATV. Wider, revised FOX suspension makes the most of torquey Rotax power and tows up to 1,650 lbs (750 kg). XT-P adds FOX† 1.5 PODIUM† QS3 shocks, Can-Am HD winch, and more.
-
Engine
78 hp Rotax 850 V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes / 91 hp Rotax 1000R V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 850
1000R
Engine displacement - 850
1000
Type - 850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum beadlock
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 850: 800 lb (363 kg)
1000R: 826 lb (375 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with full wrap handguards, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander X xc
-
Performance
- Trail
- Recreational Riding
- Aluminum front bumper with pre-runner and top brace
- FOX† 1.5 PODIUM RC2† shocks
- X-package coloration, Aluminum taper-profile handlebar with full wrap handguards
- Aluminum skid plates
- 26 in. tires on 14 in. cast-aluminum beadlock wheels
![chalk-gray---magma-red]()
BUILT TO TACKLE THE EXTREME PRESENT. For riders seeking the ultimate all-round performance and handling—with all of the finest factory-fit components to create the ultimate cross country-ready Outlander.
-
Engine
91 hp Rotax 1000R V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 1000R
Engine displacement - 1000
Type - 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum beadlock
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 86 x 48 x 49.5 in. (218.4 x 121,9 x 126 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 826 lb (375 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Aluminum front bumper with pre-runner and top brace, Aluminum taper-profile handlebar with full wrap handguards, Front, center & footwell aluminum skid plates, A-arms HMWPE protectors, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander X mr 650
-
Mud
- Performance
- Trail
- Heavy-duty front bumper
- Visco-4Lok† front differential
- X-package graphics and seats, Mud-riding footrests
- Relocated radiator
- 28 in. tires on 12 in. cast-aluminum wheels
![desert-tan]()
CONFIDENCE THAT RUNS DEEP. Built with extreme mud and wet terrain use with added snorkel, exterior protection and retuned suspension, engine, transmission—and bog-ready wheels & tires.
-
Engine
62 hp Rotax 650 V-twin engine, snorkeled, liquid cooled with relocated radiator
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 650 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Mega Mayhem 28 x 8 x 12 in.
Rear Tires - ITP† Mega Mayhem 28 x 10 x 12 in.
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 88 x 48.5 x 50.5 in. (224 x 123 x 128 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 11.75 in. (29.9 cm)
Estimated Dry Weight* - 874 lb (396 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 35.25 in. (89.5 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Standard
Protection - Heavy-duty front bumper, Mud-riding footrests, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander X mr 850
-
Mud
- Performance
- Trail
- Heavy-duty rear bumper
- FOX† 1.5 PODIUM shocks
- 3,500-lb winch
- 30 in. tires on 14 in. cast-aluminum wheels
![desert-tan]()
MADE WITH MUD IN MIND. Upgraded to maximize the power of the Rotax 850, get a winch, upgraded suspension, wheels & tires that will get you through the nastiest, muddiest terrain. Now with available Visco-4Lok front Differential. The game has changed. Learn more.
-
Engine
78 hp Rotax 850 V-twin engine, snorkeled, liquid cooled with relocated radiator, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 850
Engine displacement - 850
Type - 78HP, Rotax 854 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 9 x 14 in.
Wheels - 14-in.cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 88 x 50 x 51.5 in. (224 x 127 x 131 cm)
Wheel Base - 51 in. (129.5 cm)
Ground Clearance - 13 in. (33 cm)
Estimated Dry Weight* - 990 lb (450 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 36.75 in. (93.3 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar
Front Shocks - FOX† 1.5 PODIUM†
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - FOX† 1.5 PODIUM†
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Standard
Protection - Heavy-duty front & rear bumpers, Mud-riding footrests, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-

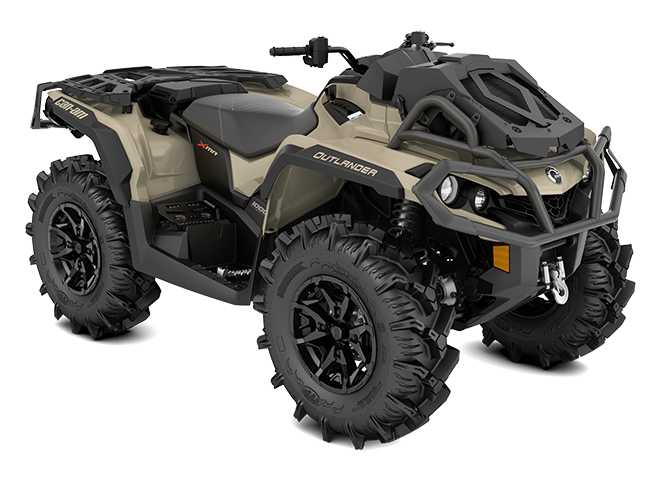

![desert-tan]()
![liquid-titanium---magma-red]()
MADE WITH MUD IN MIND. Upgraded to maximize the power of the Rotax 1000R, get a winch, upgraded suspension, wheels & tires that will get you through the nastiest, muddiest terrain. Now with available Visco-4Lok front Differential. The game has changed. Learn more.
-
Engine
91 hp Rotax 1000R V-twin engine, snorkeled, liquid cooled with relocated radiator, Intelligent Throttle Control (iTC™️) with riding modes & Extra Low L Gear
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
Engine Engine - 1000R
Engine displacement - 1000
Type - 91HP, Rotax 976 cc V-twin, snorkeled, liquid cooled with relocated radiator
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 x 14 in.
Rear Tires - ITP Cryptid 30 x 9 x 14 in.
Wheels - 14-in.cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 97 x 50 x 51.5 in. (246 x 127 x 131 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 13 in. (33 cm)
Estimated Dry Weight* - 1014 lb (460 kg)
Rack Capacity - Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 36.75 in. (93.3 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar
Front Shocks - FOX† 1.5 PODIUM†
Rear Suspension - Torsional Trailing arm Independent (TTI)
Rear Shocks - FOX† 1.5 PODIUM†
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Standard
Protection - Heavy-duty front & rear bumpers
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander MAX DPS
-
Work
- Trail
- Recreational Riding
- Tri-mode dynamic power steering
- Mulitiposition passenger handgrips
- Raised floorboards
- Convertible Rack System (CRS)
- 26 in. tires on 14 in. cast-aluminum wheels
![granite-gray]()
HANDLE THE WORST WITH EASE. Dynamic Power Steering (DPS) improves comfort and steering feel everywhere: from tight turns on delicate turf to challenging trails.
-
Engine
62 hp Rotax 650 V-twin engine, liquid cooled
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Max
Mulitiposition passenger handgrips, Raised floorboards, Convertible Rack System (CRS)
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 650 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 827 lb (375 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Anti Theft System - N/A
Lighting - Lighter type DC Outlet in console, standard connector in the back (15-A)
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander MAX XT
-
Performance
- Trail
- Hunting
- Heavy-duty front & rear bumpers
- Handlebar wind deflectors
- 3,500-lb winch
- 26 in. tires on 14 in. cast-aluminum wheels
![mossy-oak-break-up-country-camo]()
![oxford-blue]()
![boreal-green]()
THE EXTRAS COME STANDARD. More exterior protection, upgraded bumpers, and winch ensure it’s factory-fit for your next adventure.
-
Engine
62 hp Rotax 650 V-twin engine / 78 hp Rotax 850 V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes / 91 hp Rotax 1000R V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Max
Mulitiposition passenger handgrips, Raised floorboards, Convertible Rack System (CRS)
Engine Engine - 650
850
1000R
Engine displacement - 650
850
1000
Type - 650: 62HP, Rotax 650 cc V-twin, liquid cooled
850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - 650: Electronic Fuel Injection (EFI)
850-1000R: Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 650: 827 lb (375 kg)
850: 874 (396 kg)
1000R: 900 lb (408 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with full wrap handguards, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
2022Outlander MAX XT-P
-
Performance
- Trail
- Recreational Riding
- Outlander MAX XT top features
- FOX† 1.5 PODIUM QS3† shocks
- Visco-4Lok† front differential
- Aluminum taper-profile handlebar with full wrap handguards
- 26 in. tires on 14 in. cast-aluminum beadlock wheels
![iron-gray--black---neo-yellow]()
PERFORMANCE THAT GOES THE DISTANCE. Fully-loaded for style & off-road speed with adjustable FOX 1.5 PODIUM QS3, 14 in. beadlock wheels and additional factory upgrades.
-
Engine
78 hp Rotax 850 V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes / 91 hp Rotax 1000R V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Max
Mulitiposition passenger handgrips, Raised floorboards, Convertible Rack System (CRS)
Engine Engine - 850
1000R
Engine displacement - 850
1000
Type - 850: 78HP, Rotax 854 cc V-twin, liquid cooled
1000R: 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - ITP† Terracross 26 x 8 x 14 in.
Rear Tires - ITP† Terracross 26 x 10 x 14 in.
Wheels - 14-in. cast-aluminum beadlock
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 850: 874 (396 kg)
1000R: 900 lb (408 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Aluminum taper-profile handlebar with full wrap handguards, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
-
Performance
- Trail
- Recreational Riding
- Outlander MAX XT top features
- FOX† 1.5 PODIUM QS3† shocks, Visco-4Lok† front differential
- Premium 2-tone seat & passenger seat
- 3,500-lb winch
- 27 in. tires on 14 in. cast-aluminum wheels
![stone-gray]()
FULLY-LOADED FROM THE GET-GO. Supreme capability, style & versatility on top of the powerful 1000R Rotax engine. Handle weekend-long 2-up journeys and any conditions along the way.
-
Engine
91 hp Rotax 1000R V-twin engine, Intelligent Throttle Control (iTC™️) with riding modes
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Protection
Handlebar wind deflectors
-
Max
Mulitiposition passenger handgrips,
Engine Engine - 1000R
Engine displacement - 1000
Type - 91HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / L, standard engine braking
Drive Train - Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Maxxis Bighorn 2.0 27 x 9 x 14 in.
Rear Tires - Maxxis Bighorn 2.0 27 x 11 x 14 in.
Wheels - 14-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 94 x 48 x 53 in. (238.8 x 121.9 x 135 cm)
Wheel Base - 59 in. (149.9 cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 900 lb (408 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 200 lb (90 kg)
Storage Capacity - Rear: 5.7 gal (21.4 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - FOX† 1.5 PODIUM† QS3
Rear Suspension - Torsional Trailing arm Independent (TTI) 9.9 in. (25,1 cm) travel
Rear Shocks - FOX† 1.5 PODIUM† QS3
Feature Gauge - 7.6-in wide digital display : Speedometer, tachometer, odometer, trips & hour meters, gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge, clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™)
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front & rear bumpers, Handlebar wind deflectors, Mudguards
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
-
Work
- Hunting
- Trail
- 800-lb capacity Dual-Level cargo
- Central skid plate
- 26 in. tires on 12 in. cast-aluminum wheels
![tundra-green]()
THE CAVALRY HAS ARRIVED. Whether you’re hauling at capacity or climbing the closest mountain, added 6x6 traction, low ‘L’ gear, and dual-level cargo box mean this Outlander loads & goes like no other ATV.
-
Engine
62 hp Rotax 650 V-twin engine
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Protection
Central skid plate
-
Max
Mulitiposition passenger handgrips,
Engine Engine - 650
Engine displacement - 650
Type - 62HP, Rotax 650 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 4WD / 6WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in.
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in.
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 124.8 x 48.5 x 55.3 in. (317 x 123 x 140 cm)
Wheel Base - 90 in. (228,5cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 1100 lb (499 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 700 lb (318 kg)
Storage Capacity - Dual-level cargo box with sidewalls and tailgate Rear: 18.5 gal (70 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - Prewired for available winch
Seat - Convertible Rack System (CRS)
Protection - Central skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
-
-
Work
- Hunting
- Trail
- Heavy-duty front bumper
- Handlebar wind deflectors
- 3,500-lb winch, Central skid plate
- 26 in. tires on 12 in. cast-aluminum wheels
![boreal-green]()
BUILT FOR LIFE AT THE TOP. Even though our most fully-equipped 6x6 ATV can do just about anything, your ride never takes a back seat with added protection, wind deflectors, and winch.
-
Engine
82 hp Rotax 1000 V-twin engine
-
Features
Steel racks with LinQ quick-attach accessory system, 2.9-gal (10.9 L) water-resistant rear compartment
-
Protection
Central skid plate, Handlebar wind deflectors
-
Max
Mulitiposition passenger handgrips,
Engine Engine - 1000
Engine displacement - 1000
Type - 82HP, Rotax 976 cc V-twin, liquid cooled
Fuel Delivery System - Electronic Fuel Injection (EFI)
Transmission - CVT, P / R / N / H / Extra Low L, standard engine braking
Drive Train - Selectable 4WD / 6WD with Visco-Lok QE auto-locking front Differential
Power Steering - Tri-Mode Dynamic Power Steering (DPS)
Tires/Wheels Front Tires - Carlisle† ACT radial 26 x 8 x 12 in.
Rear Tires - Carlisle† ACT radial 26 x 10 x 12 in.
Wheels - 12-in. cast-aluminum
Breaks Front - Dual 214 mm disc brakes with hydraulic twin-piston calipers
Rear - Single 214 mm disc brake with hydraulic twin-piston caliper
Dimensions L x W x H - 124.8 x 48.5 x 55.3 in. (317 x 123 x 140 cm)
Wheel Base - 90 in. (228,5cm)
Ground Clearance - 11 in. (27.9 cm)
Estimated Dry Weight* - 1170 lb (531 kg)
Rack Capacity - Front: 100 lb (45 kg) / Rear: 700 lb (318 kg)
Storage Capacity - Dual-level cargo box with sidewalls and tailgate Rear: 18.5 gal (70 L)
Towing Capacity - 1,650 lb (750 kg)
Fuel Capacity - 5.4 gal (20.5 L)
Seat Height - 34.5 in. (87.7 cm)
Suspensions Front Suspension - Arched double A-arm with front sway bar 9.2 in. (23.3cm) travel
Front Shocks - Oil
Rear Suspension - Double Torsional Trailing arm Independent (TTI2) with quick-release sway bar 9.9 in. (25,1 cm) travel
Rear Shocks - Oil
Feature Gauge - 4.5-in. digital display : Speedometer, tachometer, odometer, trip & hour meters,gear position, 4 x 4 indicator, temperature, engine lights, electronic fuel gauge & clock
Instrumentation - Lighter type DC Outlet in console, standard connector in the back (15-A)
Anti Theft System - N/A
Lighting - 230 W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
Winch - 3,500-lb (1,588 kg) winch
Seat - Convertible Rack System (CRS)
Protection - Heavy-duty front bumper, Handlebar wind deflectors, Central skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 36 months
-
Download spec sheet
Share
