Explore Maverick X3 Packages & Specifications
-
2024Maverick X3 DS Turbo
Transport and preparation not included.-
Performance
- Desert / Trail
- Smart-Lok front differential
- SHOWA HPG piggyback 2.5
- High torque Dynamic Power Steering (DPS)
- Quarter-doors
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![fiery-red---hyper-silver]()
![catalyst-gray]()
THE BEST IS BETTER THAN EVER. High-performance at an MSRP that keeps our competitors up at night: the 2 seat Maverick X3 DS thrills with next-generation go-anywhere. From 135 hp to 200 hp, the choice is yours.
-
Width
64 in.
-
Features
650w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO
Engine displacement - 900
Type - 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,546 lb (701.3 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 650-W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Trail
- 200 hp (13.5 hp / 100lbs)
- 850w magneto
- Quarter-doors
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![catalyst-gray]()
![fiery-red---hyper-silver]()
RACE ONLY YOUR PULSE. DS Turbo RR is your blend of more standard features & improved suspension across all terrains.
-
Width
64 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.4 in. (335.3 x 162.5 x 166.1 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,546 lb (701.3 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Trail
- Maverick X3 DS Turbo RR top features
- Front: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments/Rear: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
- 7.6 in. digital display with keypad
- X-package graphics/seats/signature
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![fiery-red---hyper-silver]()
![triple-black]()
MAKE THE WORLD YOUR STAGE. Front and rear FOX shocks are serious hardware to help you harness all 200 horses on any terrain, anywhere—and do it all again tomorrow.
-
Width
64 in.
-
Features
850w magneto, X-package graphics/seats/signature, Rear tow hook HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments/Rear: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 64 x 65.7 in. (335.3 x 162.5 x 166.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,554 lb (704.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
2024Maverick X3 RS Turbo
Transport and preparation not included.-
Performance
- Desert / Trail
- Smart-Lok front differential
- SHOWA HPG piggyback 2.5
- High torque Dynamic Power Steering (DPS)
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
- 4.5 in. digital display with keypad
![fiery-red---hyper-silver]()
![catalyst-gray]()
THE 2 SEAT MAVERICK X3 RS TURBOTHRILLS WITH 135 HP AND 72 INCHES WIDE. High-performance at an MSRP that keeps our competitors up at night.
-
Width
72 in.
-
Features
650w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO
Engine displacement - 900
Type - 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.4 x 68.5 in. (335.3 x 183.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,673 lb (758.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Dunes
- 200 hp (12.3 hp / 100lbs)
- Trophy truck inspired double A-arms
- Quarter-doors
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![fiery-red---hyper-silver]()
![catalyst-gray]()
BUILT TO FINISH. Winning the Dakar. Baja. And Vegas to Reno. Enough said...…what are YOU waiting for?
-
Width
72 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.4 x 68.5 in. (335.3 x 183.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,673 lb (758.9 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- Up to 24 in. of suspension travel
- Trophy truck inspired double A-arms
- Full roof
- Maxxis Carnivore† 32 x 10 x 14 in. on 14 in. cast-aluminum beadlock
![fiery-red---hyper-silver]()

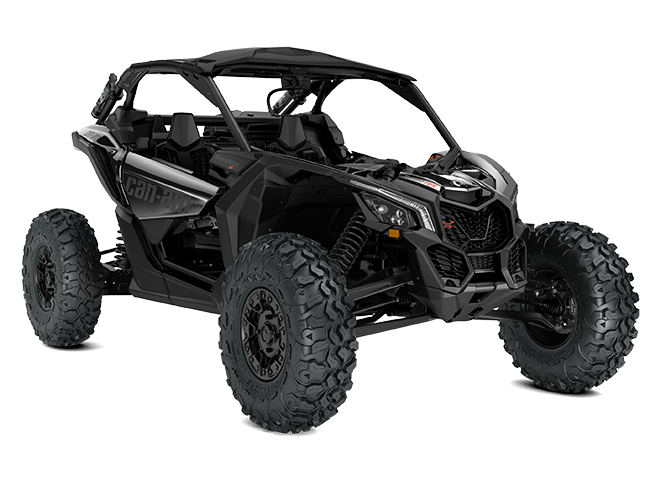

![triple-black]()

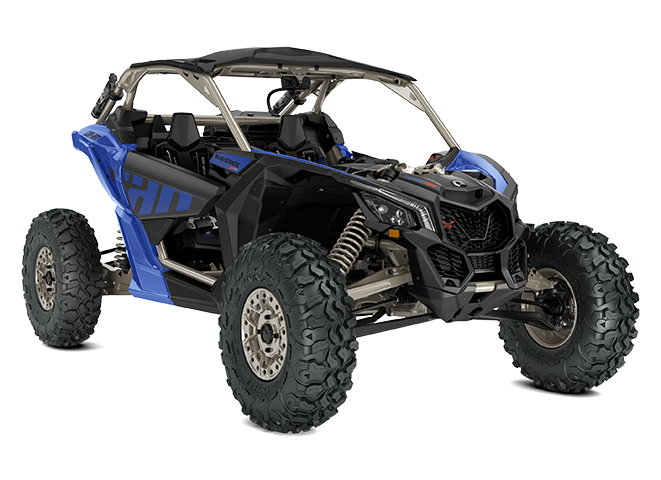

![dazzling-blue---carbon-black]()
LEGENDS NEVER STAND STILL. Run at the front of any pack with 200 horsepower, 72 in. stance, and all the options that makes it the undisputed leader that he is.
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments/Rear: FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 32 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 32 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,680 lb (762 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24 in. (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- Smart-Shox Technology, Trophy truck inspired double A-arms
- Up to 24 in. of suspension travel
- Full roof
- Maxxis Carnivore† 32 x 10 x 14 in. on 14 in. cast-aluminum wheels
![fiery-red---hyper-silver]()
![triple-black]()
![dazzling-blue---carbon-black]()
BUILT FOR THE VICTORY LAP. Run at the front of any pack with 200 horsepower, and Smart-Shox semi-active suspension to defy any playground.
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Shocks
Front:FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment)/Rear: FOX† 3.0 PODIUM† remote reservoir with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment) **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 32 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 32 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132 x 72.7 x 68.5 in. (335.3 x 184.7 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,699 lb (770.7 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM† Piggyback with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 24 in. (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM† remote reservoir with bypass and Smart-Shox** Technology featuring DDA Valve (Dynamic Damping Adjustment) **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Rock
- Performance
- 200 hp (12.2 hp / 100lbs)
- 4,500-lb winch
- Arched double A-arms
- Quarter-doors
- Maxxis Liberty† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![hybrid-white---legion-red]()
FULL OF ALTITUDE. Conquer the last mile with Rock-specific Smart-Lok™ Differential tuning & full protection for whoops and rocky ridges alike. It's as furious and smart as it looks.
-
Width
64 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE skidplates (Full heavy duty with differential / Under bumper / Front and rear suspension arm), Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment/ Rear: FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Liberty† 30 x 10 / 10 x 14 in.
Wheels - 14 in. (35.6 cm) cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 65 x 66 in. (337.8 x 165.1 x 167.6 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,674 lb (759.3 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 18 in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18 in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Quarter-doors, UHMWPE rock sliders, HMWPE skidplates: Full heavy duty with Differential / Under bumper / Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Rock
- Performance
- 200 hp (11 hp / 100lbs)
- Trophy truck inspired arched double A-arms
- 4-point harness with shoulder pads, 4,500-lb winch
- Half doors, Full roof
- Maxxis Liberty† 32 x 10 x 15 in. on 15 in. cast-aluminum beadlock
![hybrid-white---legion-red]()
ROCK ON ROCKS. Test your mettle and finally conquer the last mile: This Maverick X3 X rc Turbo RR has a 72 in. stance and is the ultimate factory rock-crawling side-by-side vehicle for leaving rivals at the bottom of the heap.
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE skidplates, Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD ROCK / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
Up to 24 in. of suspension travel
-
Shocks
Front:FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments /Rear: FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD ROCK / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Liberty† 32 x 10 / 10 x 15 in.
Rear Tires - Maxxis Liberty† 32 x 10 / 10 x 15 in.
Wheels - 15 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 134.5 x 72.8 x 68.5 in. (341.6 x 184.9 x 174 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,843 lb (836 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Trophy truck inspired Arched double A-arm with sway bar / 22 in. (55.9 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 24 in. (61 cm) travel
Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Full roof, Intrusion bar, 4-point harness with shoulder pads, UHMWPE rock sliders, HMWPE skidplates, Full heavy duty with Differential / Under bumper / Front and rear suspension arm, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Mud
- Performance
- 200 hp (12 hp / 100lbs)
- Snorkeled engine air intake and CVT, 4,500-lb winch
- Arched double A-arms
- Half doors
- ITP Cryptid 30 x 9/11 x 14 in. on 14 in. cast-aluminum with machined finish wheels
![hyper-silver---legion-red]()
STIR IT UP. Smart-Lok™ front Differential and mud-specific tuning will haul you through the roughest challenges. Balanced with 64 in. width, 18 in. of suspension travel, and armored 30 in. ITP Cryptid tires for the ultimate in mud performance.
-
Width
64 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Front and rear tow hooks, HMWPE full skid plate, Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
Front:FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment /Rear: FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 / 11 x 14 in.
Rear Tires - ITP Cryptid 30 x 9 / 11 x 14 in.
Wheels - 14 in. cast-aluminum with machined finish
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 133 x 66.7 x 66.1 in. (337.8 x 169.4 x 167.9 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 14 in. (35.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,705 lb (773.4 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 18 in. (45.7 cm) travel
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 18 in. (45.7 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Mud
- Performance
- 200 hp (11.6 hp / 100lbs)
- Snorkeled engine air intake and CVT, 4,500-lb winch
- Trophy truck inspired arched double A-arms
- Half-doors
- ITP Cryptid 30 x 9/11 x 14 in. on 14 in. cast-aluminum beadlock wheels
![hyper-silver---legion-red]()
MUD ISN’T A DIRTY WORD. Smart-Lok™ front Differential and mud-specific tuning will haul you through the roughest challenges, it's the widest Maverick with 22 in. of suspension travel and armored 30 in. ITP Cryptid tires for the ultimate in mud performance.
-
Width
72 in.
-
Features
7.6 in. digital display with keypad, 850w magneto, X-package graphics/seats/signature, Front and rear tow hooks, HMWPE full skid plate, Front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD MUD / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
Front:FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment/Rear: FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control **Smart-Shox was developed in conjunction with Tractive Industries, a market leader in the suspension industry
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-perfomance air filter and strategically positioned engine air intake
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - ITP Cryptid 30 x 9 / 11 x 14 in.
Rear Tires - ITP Cryptid 30 x 9 / 11 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 132.3 x 74.2 x 68 in. (336 x 188.5 x 172.7 cm)
Wheel Base - 102 in. (259.1 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,758 lb (797.4 kg)
Rack Capacity - 200 lb (91 kg) with LinQ™ quick-attach
Storage Capacity - Total: 2.5 gal (9.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Arched double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22 in. (55.9 cm) travel
Rear Shocks - FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - 4,500-lb (2,041 kg) winch with synthetic rope
Protection - Front bumper, Half-doors, Front and rear tow hooks, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Trail
- 200 hp (11.6 hp / 100lbs)
- 850w magneto
- Quarter-doors
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![catalyst-gray]()
![fiery-red---hyper-silver]()
MAKE THE WORLD YOUR STAGE. Front and rear SHOWA shocks are serious hardware to help you harness all 200 horses on any terrain, anywhere—and do it all again tomorrow.
-
Width
64 in.
-
Features
Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,810 lb (821 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 650 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Trail
- 135 hp (7.5 hp / 100lbs)
- Exclusive Smart-Lok technology
- SHOWA HPG piggyback 2.5 shocks
- Quarter-doors
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![catalyst-gray]()
![fiery-red---hyper-silver]()

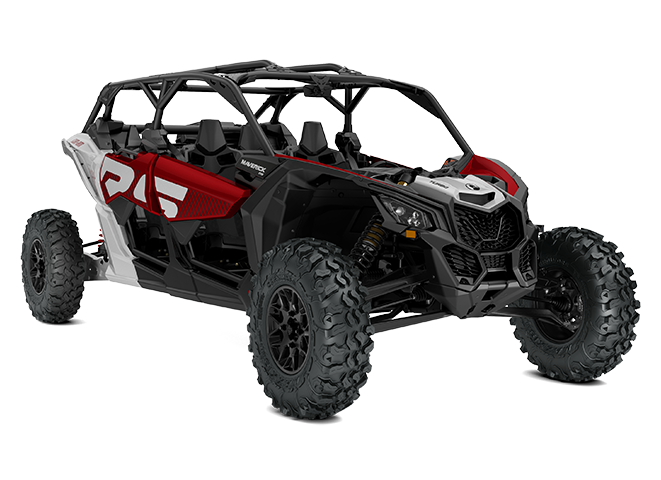

THE BEST IS BETTER THAN EVER. High-performance with no compromise: the 4-seat Maverick X3 MAX DS thrills with next-generation go-anywhere abilities. From 135 hp to 200 hp, the choice is yours.
-
Width
64 in.
-
Features
650w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
Engine Engine - TURBO
Engine displacement - 900
Type - 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,810 lb (821 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Trail
- Maverick X3 MAX DS Turbo RR top features
- Front: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments / Rear: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
- 7.6 in. digital display with keypad
- X-package graphics/seats/signature
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum beadlock wheels
![fiery-red---hyper-silver]()
![triple-black]()

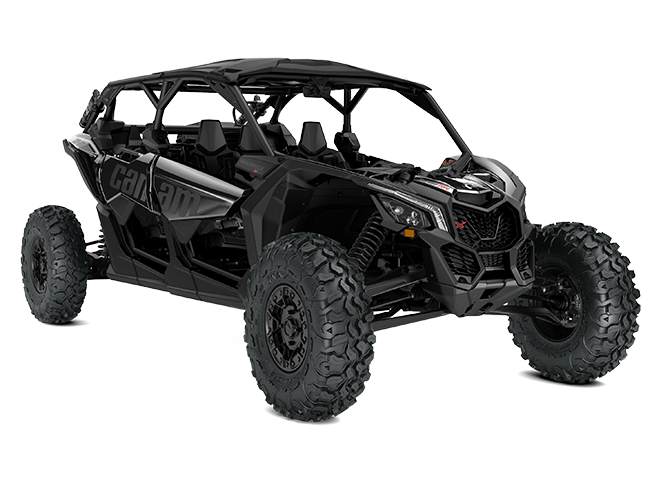

WHERE TO? From RC2 shocks to X-packages exclusives, challenge yourself and bring your desert & trail riding to a whole other level.
-
Width
64 in.
-
Features
850w magneto, X-package graphics/seats/signature, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
Front: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments / Rear: FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum beadlock
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 66 in. (416.6 x 162.5 x 167.6 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 13 in. (33 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,838 lb (833.7 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression and rebound adjustments
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - FOX† 2.5 PODIUM RC2† Piggyback with dual speed compression, rebound adjustments and bottom-out control
Feature Gauge - 7.6 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED Signature LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Dunes
- Smart-Lok™* front differential
- SHOWA HPG piggyback 2.5
- High torque Dynamic Power Steering (DPS)
- 30 in. Maxxis Carnivore† tires on 14 in. aluminum wheels
![fiery-red---hyper-silver]()
![catalyst-gray]()
WIDE & WIDE OPEN. Invite 3 passengers to live the winning spirit of the vehicle which won the Dakar. And Baja. And Vegas to Reno. And…what are you waiting for?
-
Width
72 in.
-
Features
650w magneto, Rear tow hook, HMWPE full skid plate
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
20 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO
Engine displacement - 900
Type - 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,942 lb (880.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 20 in. (50.8 cm) suspension travel
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Dunes
- 200 hp (10.7 hp / 100lbs)
- Trophy truck inspired double A-arms
- Quarter-doors
- Maxxis Carnivore† 30 x 10 x 14 in. on 14 in. cast-aluminum wheels
![catalyst-gray]()
![fiery-red---hyper-silver]()
WIDE & WIDE OPEN. Invite 3 passengers to live the winning spirit of the vehicle which won the Dakar. And Baja. And Vegas to Reno. And…what are you waiting for?
-
Width
72 in.
-
Features
850w magneto, Rear tow hook, HMWPE full skid plate, Integrated front bumper
-
Differencial
Exclusive Smart-Lok™ technology. 4WD TRAIL ACTIV / 4WD TRAIL / 2WD / 4WD with front diff. lock
-
Travel
22 in. of suspension travel
-
Shocks
SHOWA HPG piggyback 2.5 shocks
Engine Engine - TURBO RR
Engine displacement - 900
Type - 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
Fuel Delivery System - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission - pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive Train - Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
Power Steering - High torque Tri-Mode Dynamic Power Steering (DPS™)
Tires/Wheels Front Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Rear Tires - Maxxis Carnivore† 30 x 10 / 10 x 14 in.
Wheels - 14 in. cast-aluminum
Breaks Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers
Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers
Dimensions L x W x H - 164 x 72.4 x 68.5 in. (416.6 x 183.9 x 174 cm)
Wheel Base - 135 in. (342.9 cm)
Ground Clearance - 16 in. (40.6 cm)
Chassis Cage - Dual-phase 980 steel
Estimated Dry Weight* - 1,942 lb (880.9 kg)
Rack Capacity - 150 lb (68 kg) with LinQ™ quick-attach
Storage Capacity - Total: 3 gal (11.4 L)
Fuel Capacity - 10.5 gal (40 L)
Suspensions Front Suspension - Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms
Front Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Rear Suspension - 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel
Rear Shocks - SHOWA HPG piggyback 2.5 (Dual Speed Compression, Dual-rate spring)
Feature Gauge - 4.5 in. wide digital display with keypad
Magneto - 850 W
Instrumentation - DC outlet (10-A)
Anti Theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
Lighting - LED Headlight LED tail lights
Winch - N/A
Protection - Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook
Warranty Factory - 6-month BRP Limited warranty
Extended Service Terms - B.E.S.T. term available up to 30 months
-
-
Transport and preparation not included.-
Performance
- Desert / Dunes
- Maverick X3 RS Turbo RR top features
- 4-point harness with shoulder pads
- Trophy truck inspired double A-arms
- Full roof
- Maxxis Carnivore† 32 x 10 x 14 in. on 14 in. cast-aluminum beadlock wheels
-
Download spec sheet
